B Connectors - Instrument Panel Harness
B Connectors - Instrument Panel Harness

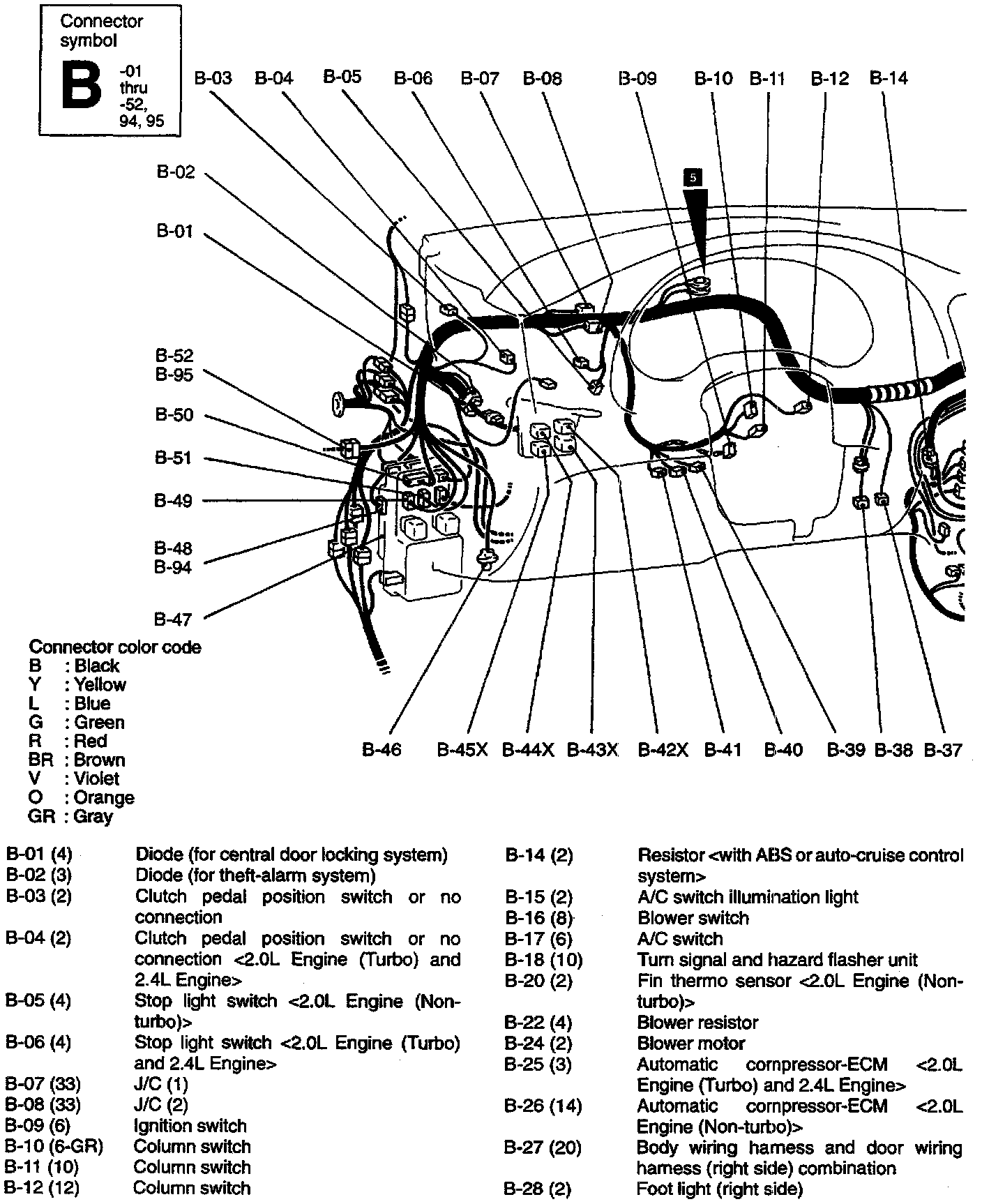

Dash Panel B-01(4) Thru B-28(2):

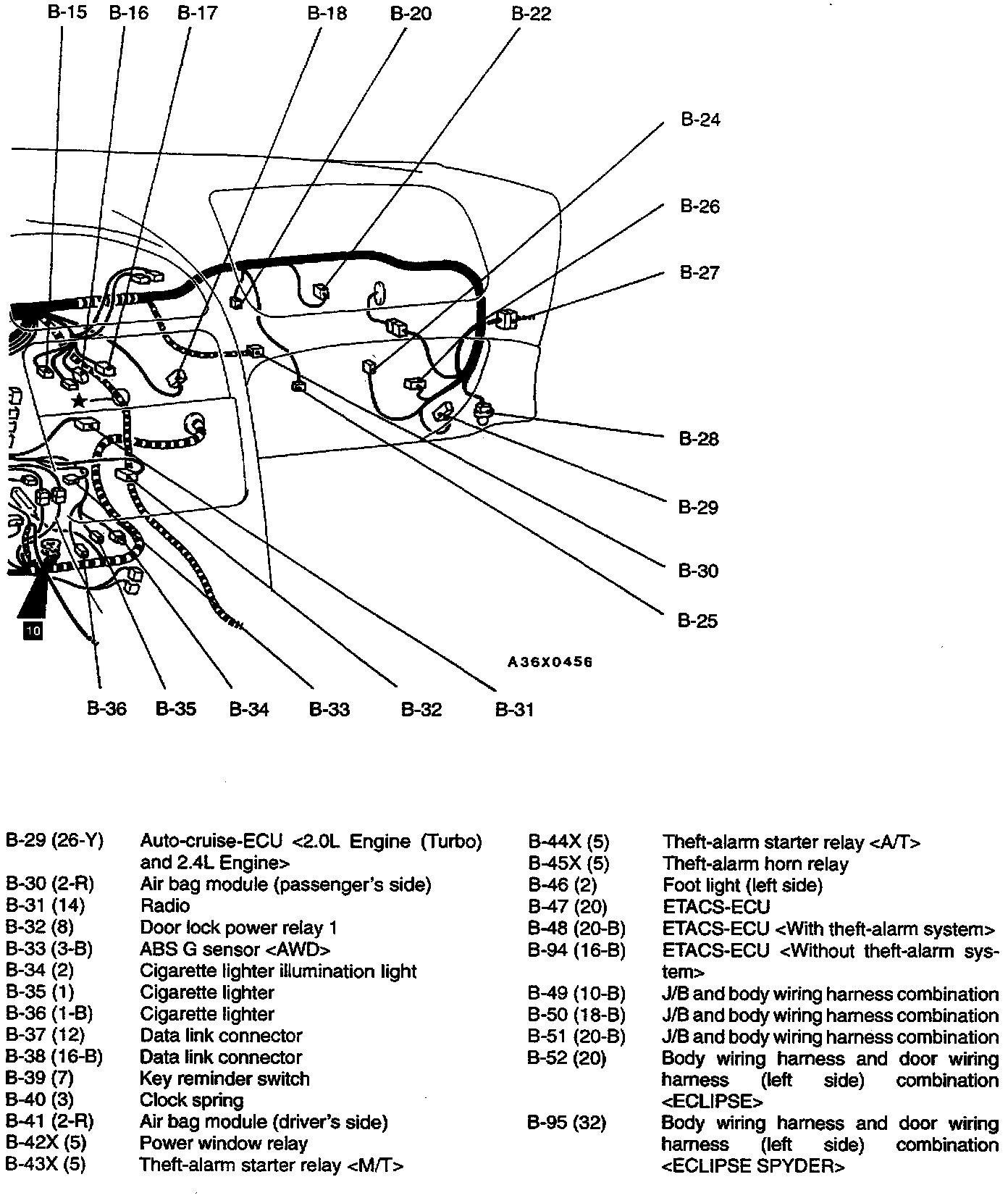

Dash Panel B-29(26-Y) Thru B-95(32):

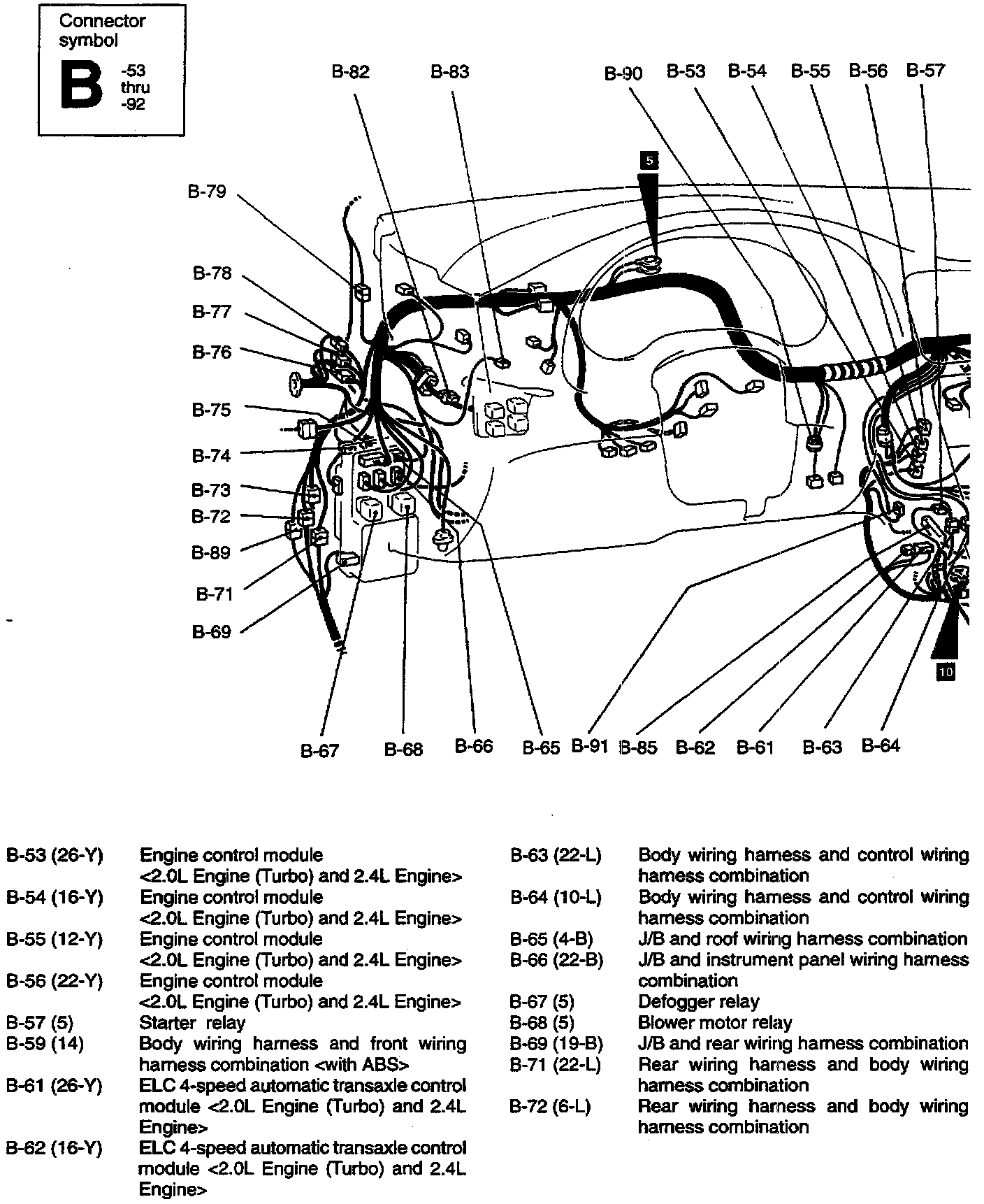

Dash Panel B-53(26-Y) Thru B-72(6-L):

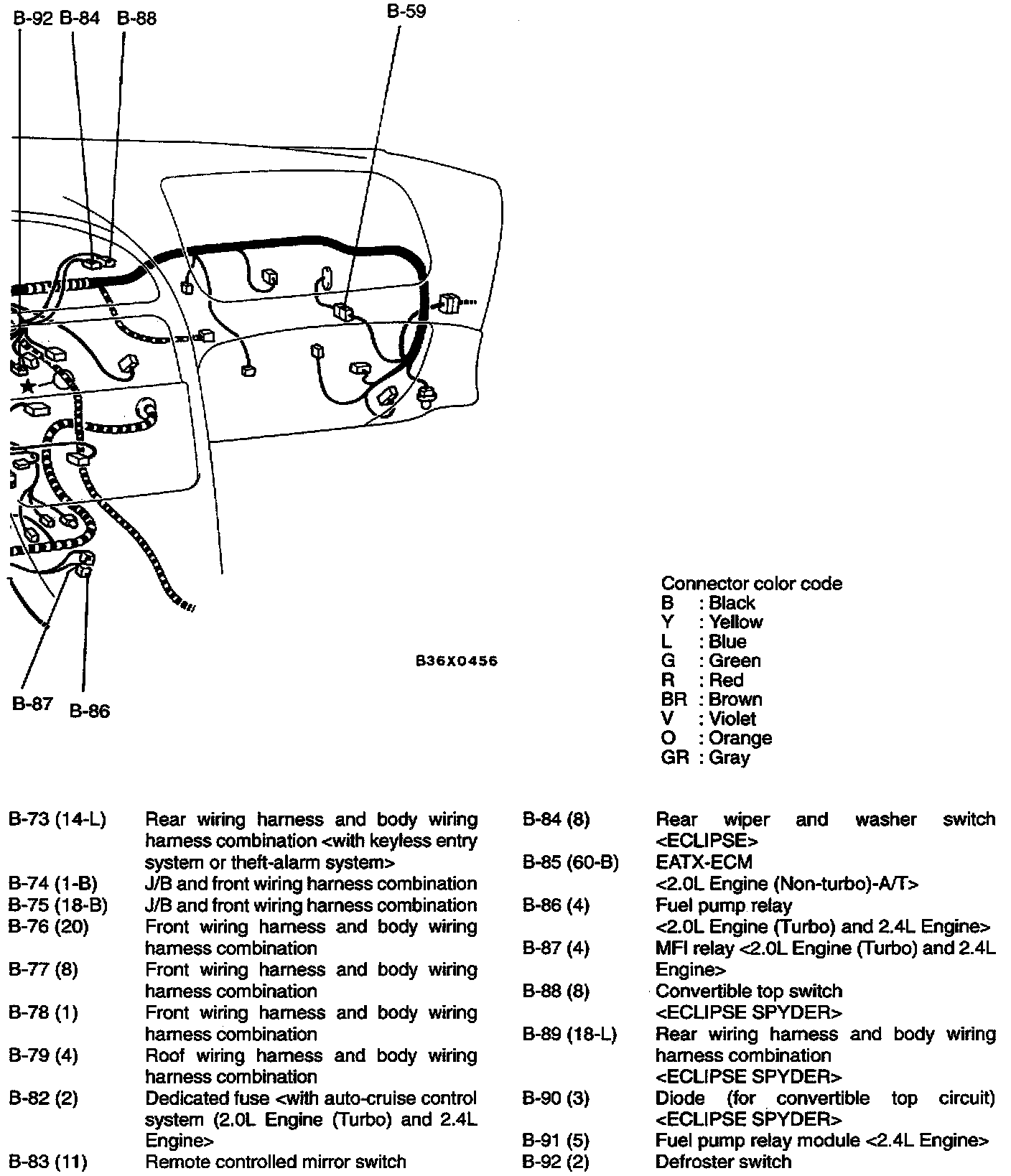

Dash Panel B-73(14-L) Thru B-92(2):
