Home >> Mitsubishi >> 1998 >> Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI >> Repair and Diagnosis >> Diagrams >> Connectors >> A Connectors - Engine Compartment Harness

A Connectors - Engine Compartment Harness

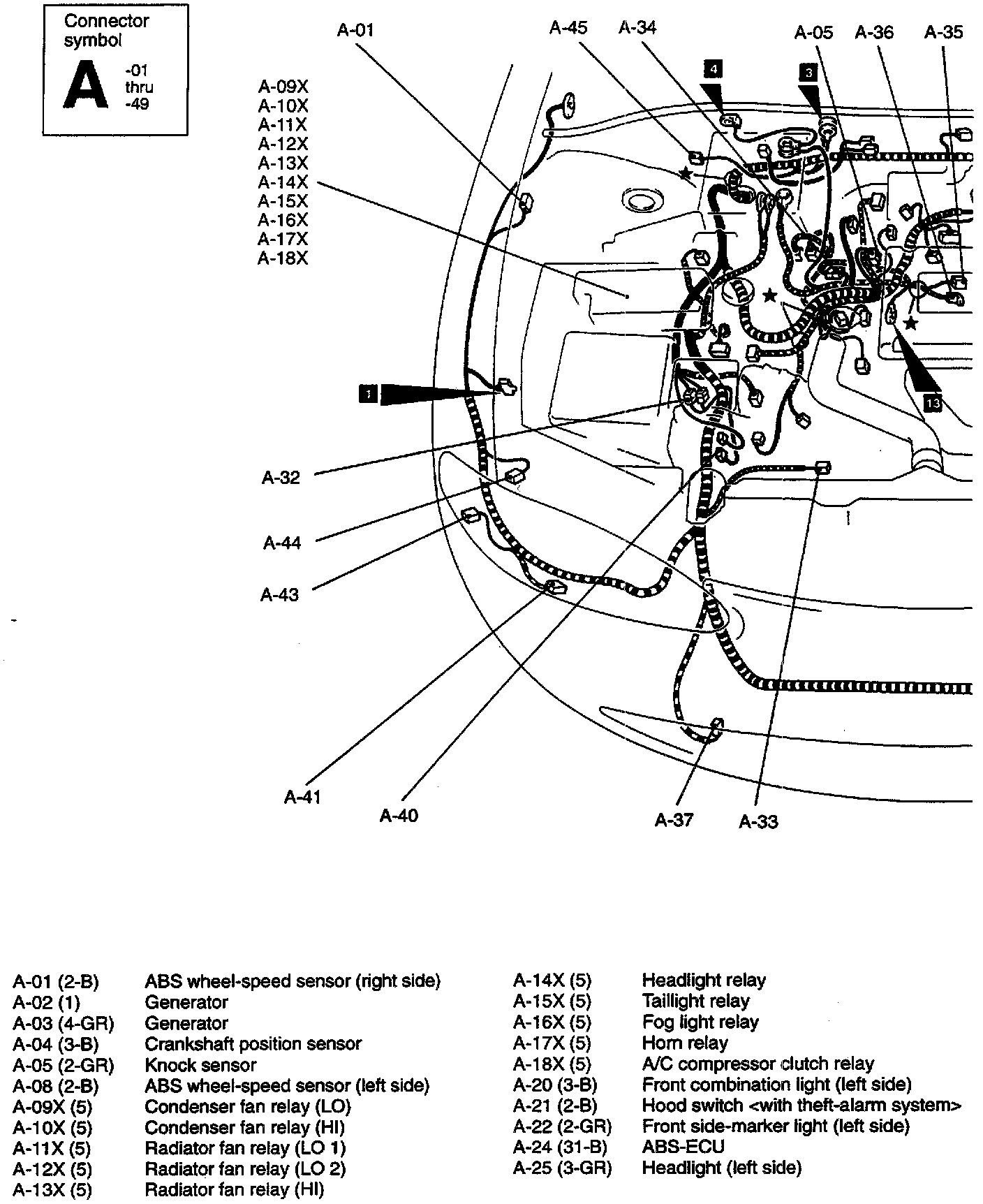

Engine Compartment A-01(2-B) Thru A-25(3-GR):

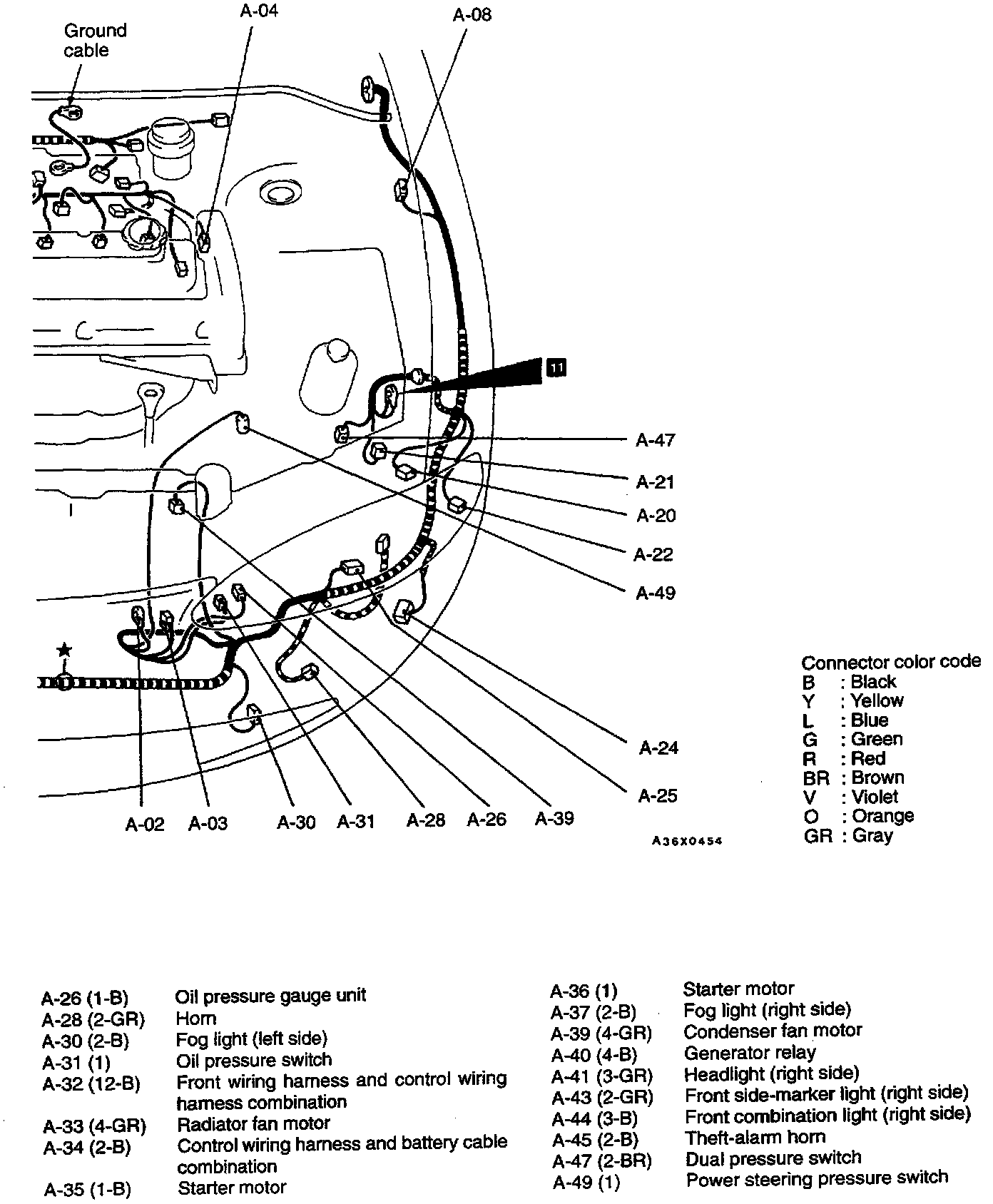

Engine Compartment A-26(1-B) Thru A-49(1):

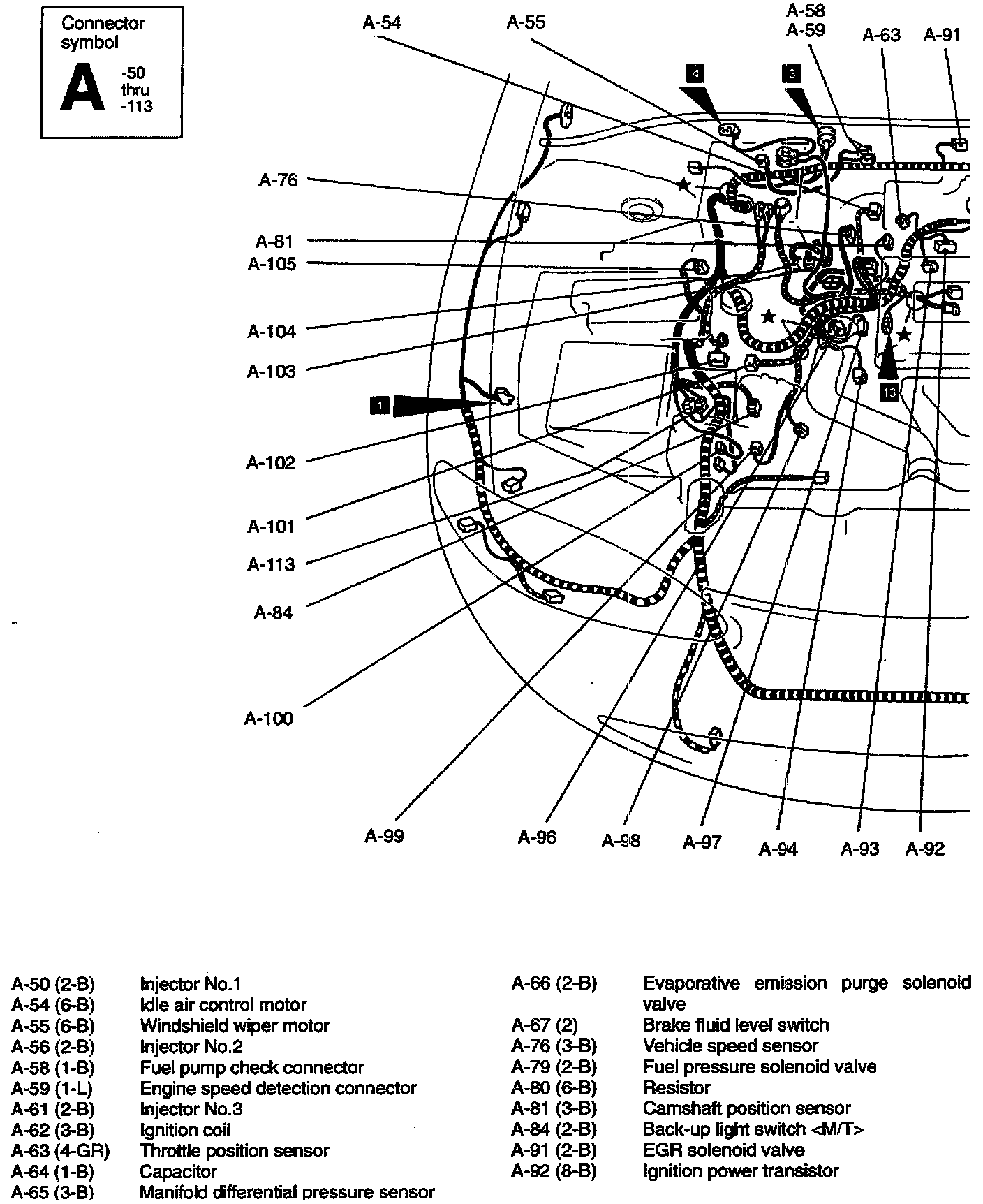

Engine Compartment A-50(2-B) Thru A-92(8-B):




Engine Compartment A-93(2-B) Thru A-113(2):
