Solenoids and Solenoid Valves

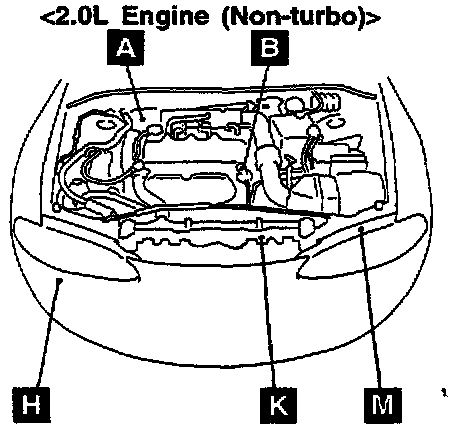

Solenoid And Solenoid Valve Locations Overall View:
Solenoid And Solenoid Valve Locations Overall View:
Solenoid And Solenoid Valve Locations View A-J:

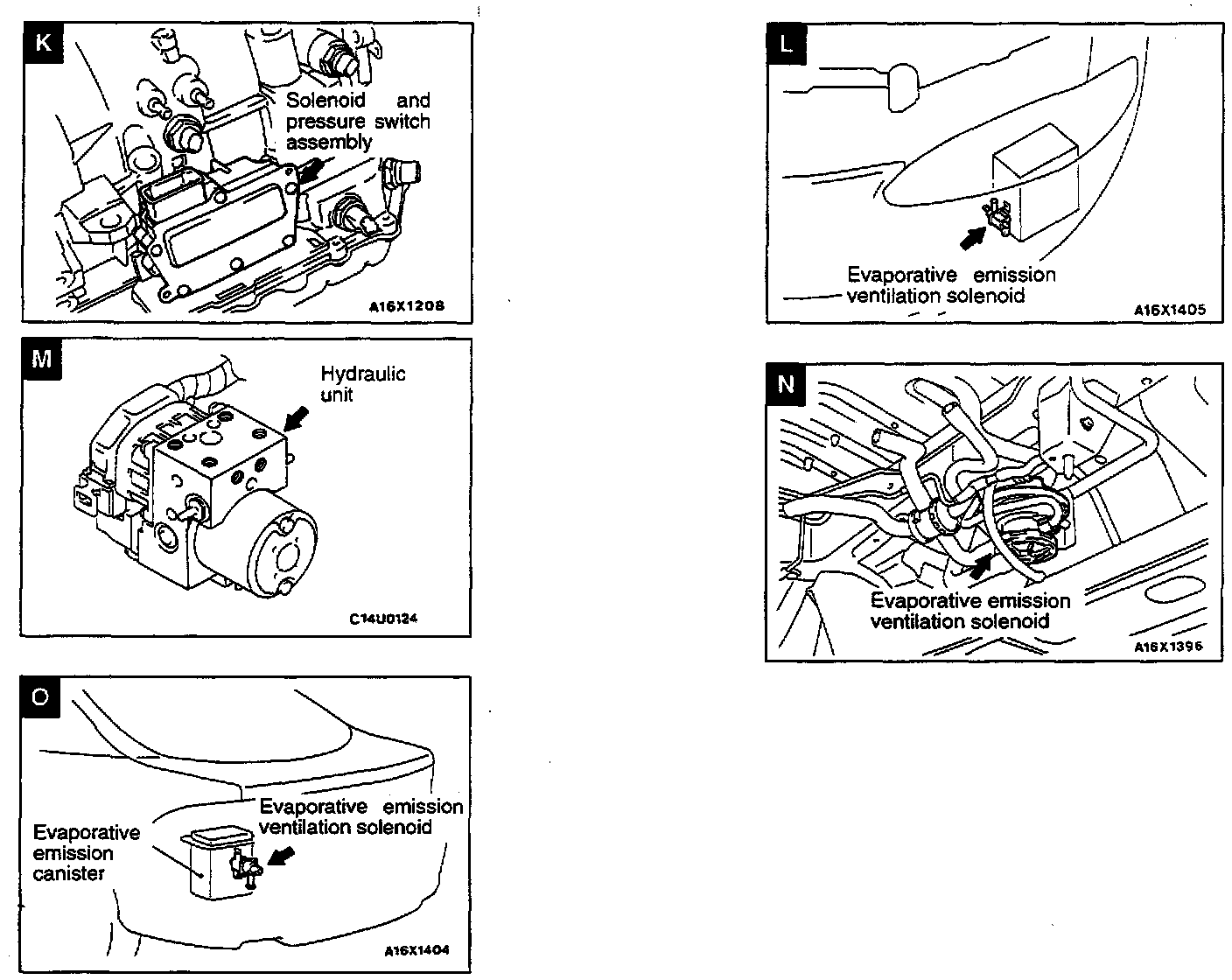

Solenoid And Solenoid Valve Locations View K-O:
Name Symbol
Auto-Cruise Control Vacuum Pump
(with built-in control and release valve) C
EGR Solenoid Valve E
ELC 4-Speed Automatic Transaxle Control
Solenoid Valve J
Evaporative Emission Purge Solenoid Valve F
Evaporative Emission Ventilation Solenoid Q
Fuel Pressure Solenoid Valve G
Hydraulic Unit
(with built-in solenoid valve)
Turbocharger Waste Gate Solenoid Valve I
