Home >> Mitsubishi >> 1998 >> Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI >> Repair and Diagnosis >> Diagrams >> Components >> Ground Locations 1 - 13

Ground Locations 1 - 13

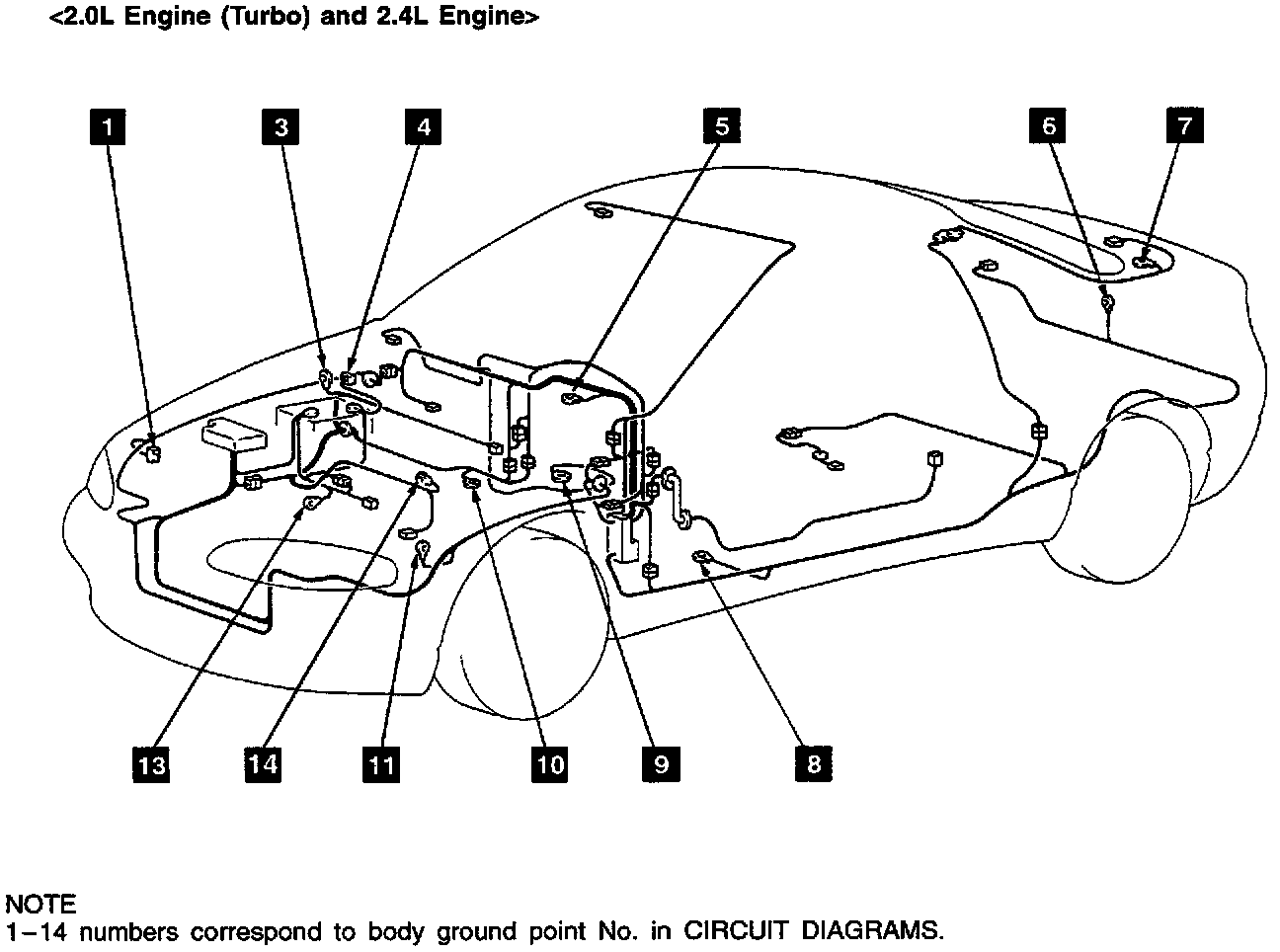

Grounding Locations Overall View:

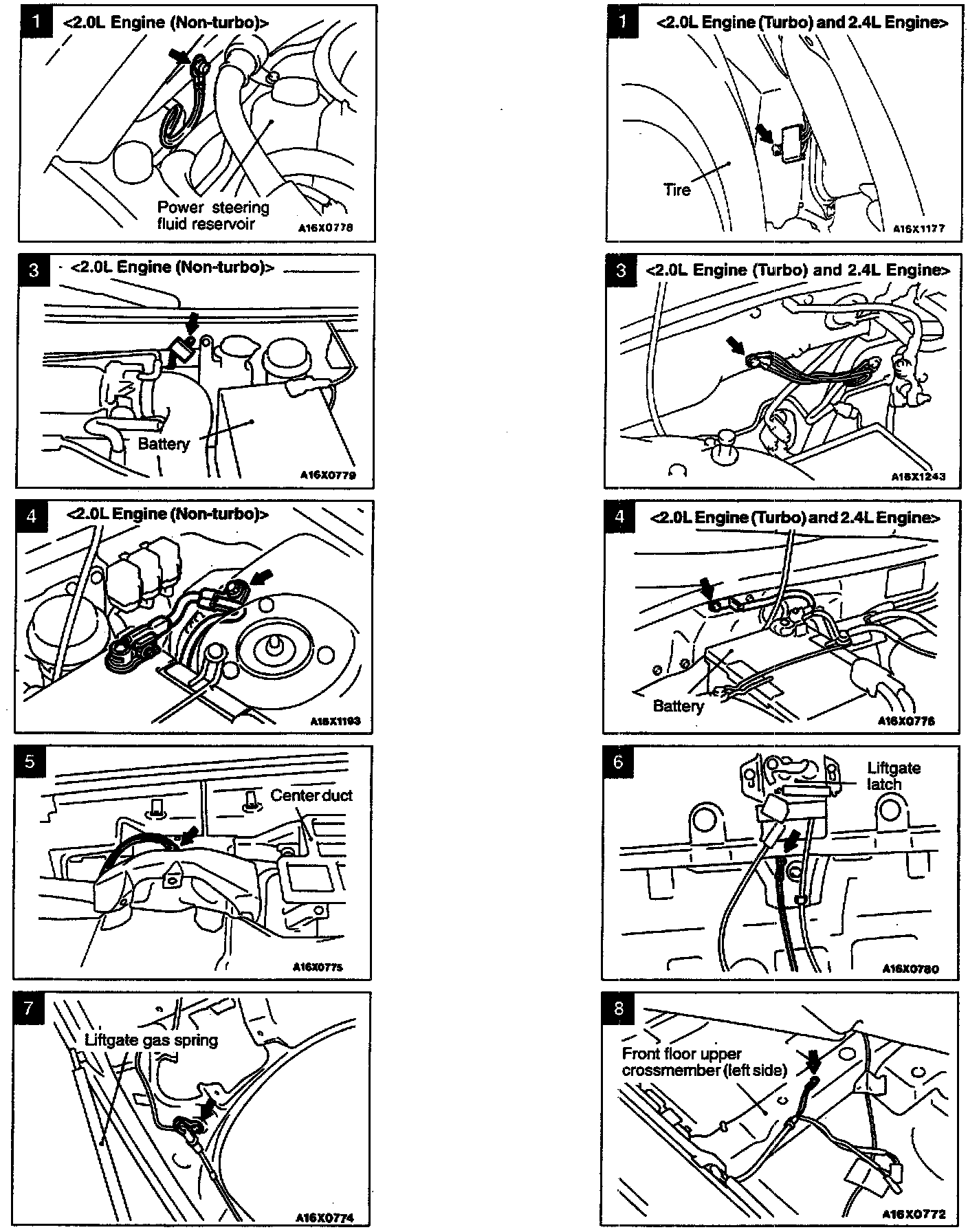

Grounding Locations Views 1-8:

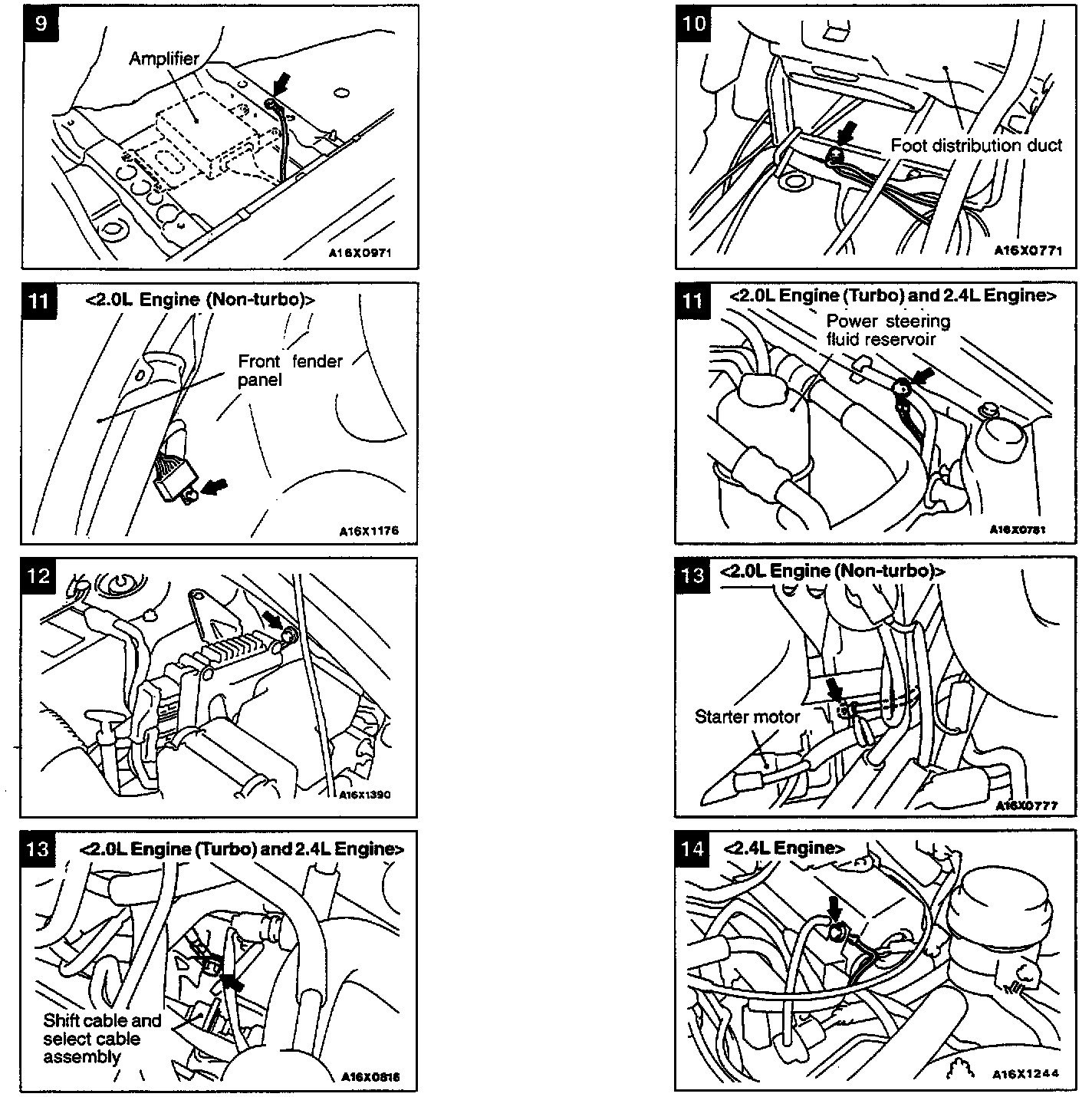

Grounding Locations Views 9-14:




NOTE: Same ground numbers are used in the circuit diagrams.
