Initial Inspection and Diagnostic Overview

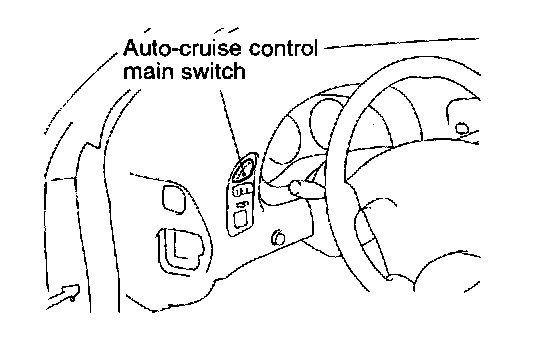

AUTO-CRUISE CONTROL MAIN SWITCH INDICATOR LIGHT
1. Turn the ignition key to ON
2. Check that the indicator within the switch illuminates when the main switch is switched ON.
AUTO-CRUISE CONTROL SETTING
1. Switch ON the main switch.
2. Drive at the desired speed within the range of approximately 40-200 km/h (25-124 mph)

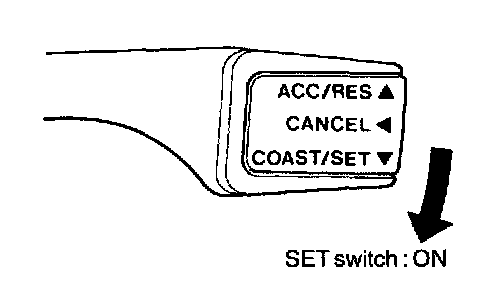

3. Switch ON the SET switch.
4. Check to be sure that when the switch is released the speed is the desired constant speed.
NOTE: If the vehicles speed decreases to approximately 15 km/h (9 mph) below the set speed because of climbing a hill for example, the auto-cruise control will be canceled.
SPEED-INCREASE SETTING
1. Set to the desired speed.

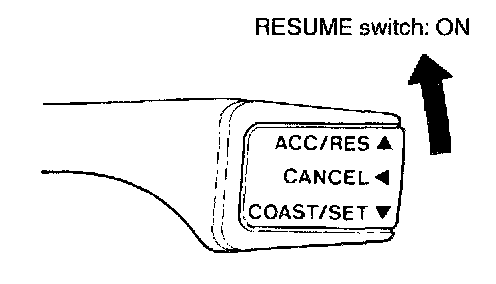

2. Switch ON the RESUME switch.
3. Check to be sure that acceleration continues while the switch is hold, and that after it is released the constant speed at the time when it was released becomes the driving speed.
SPEED REDUCTION SETTING
1. Set to the desired speed.

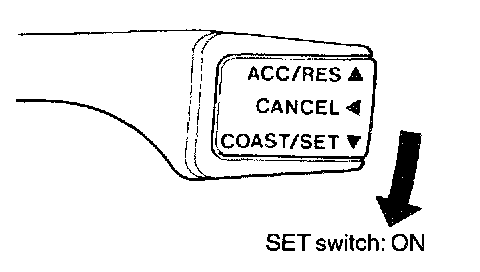

2. Switch ON the SET switch.
3. Check to be sure that deceleration continues while the switch is pressed, and that after it is released the constant speed at the time when it was released becomes the driving speed.
NOTE: When the vehicle speed reaches the low limit [approximately 40 km/h (25 mph)] during deceleration, the auto-cruise control will be canceled.
RETURN TO THE SET SPEED BEFORE CANCELLATION AND AUTO-CRUISE CONTROL CANCELLATION
1. Set the auto-cruise speed control.
2. When any of the following operations are performed while at constant speed during auto-cruise control, check if normal driving is resumed and deceleration occurs.

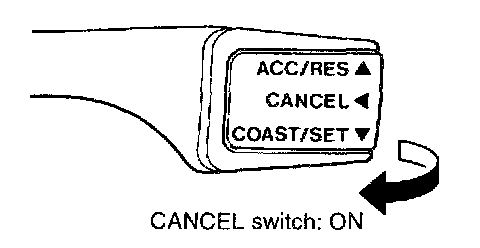

1. Switch ON the CANCEL switch.
2. The brake pedal is depressed.
3. The clutch pedal is depressed. (M/T)
4. The selectoin lever is moved to the "N" range. (A/T)

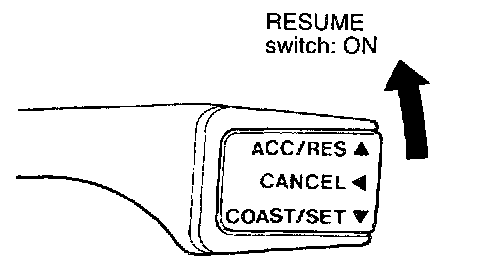

3. At a vehicle speed of 40 km/h (25 mph) or higher, check if when the RESUME switch is switched ON, vehicle speed returns to the speed before auto-cruise control driving was canceled, and constant speed driving occurs.
4. When the main switch is turned to OFF while driving at constant speed, check if normal driving is resumed and deceleration occurs.
