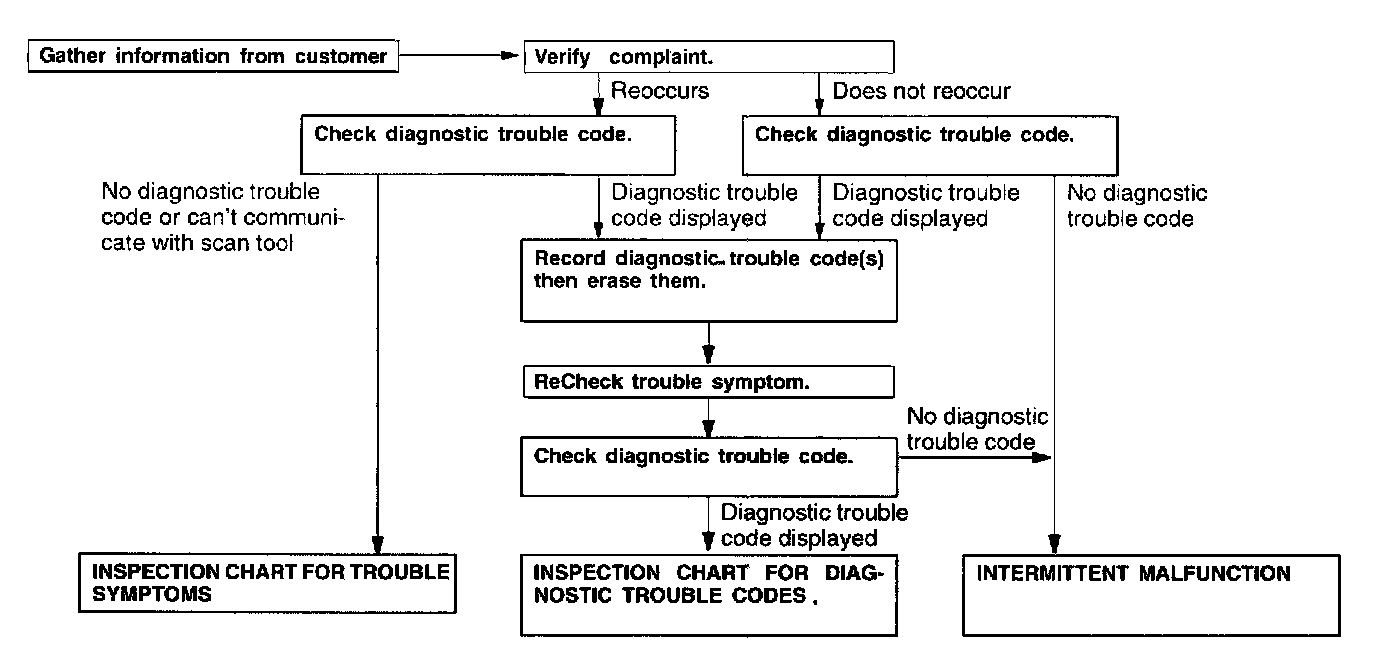

Flow of Diagnosis

NOTE
Before carrying out trouble diagnosis, check to be sure that all of the following items are normal.
1. Is the vacuum hose correctly installed and undamaged?
2. Are the auto-cruise, accelerator, and throttle cables routed correctly?
3. Do the link assembly and cables move smoothly?
4. Is the play of each cable within its standard value?
