Home >> Mitsubishi >> 1998 >> Eclipse GSX AWD L4-1997cc 2.0L DOHC Turbo MFI >> Repair and Diagnosis >> Brakes and Traction Control >> Testing and Inspection

Brakes and Traction Control: Testing and Inspection

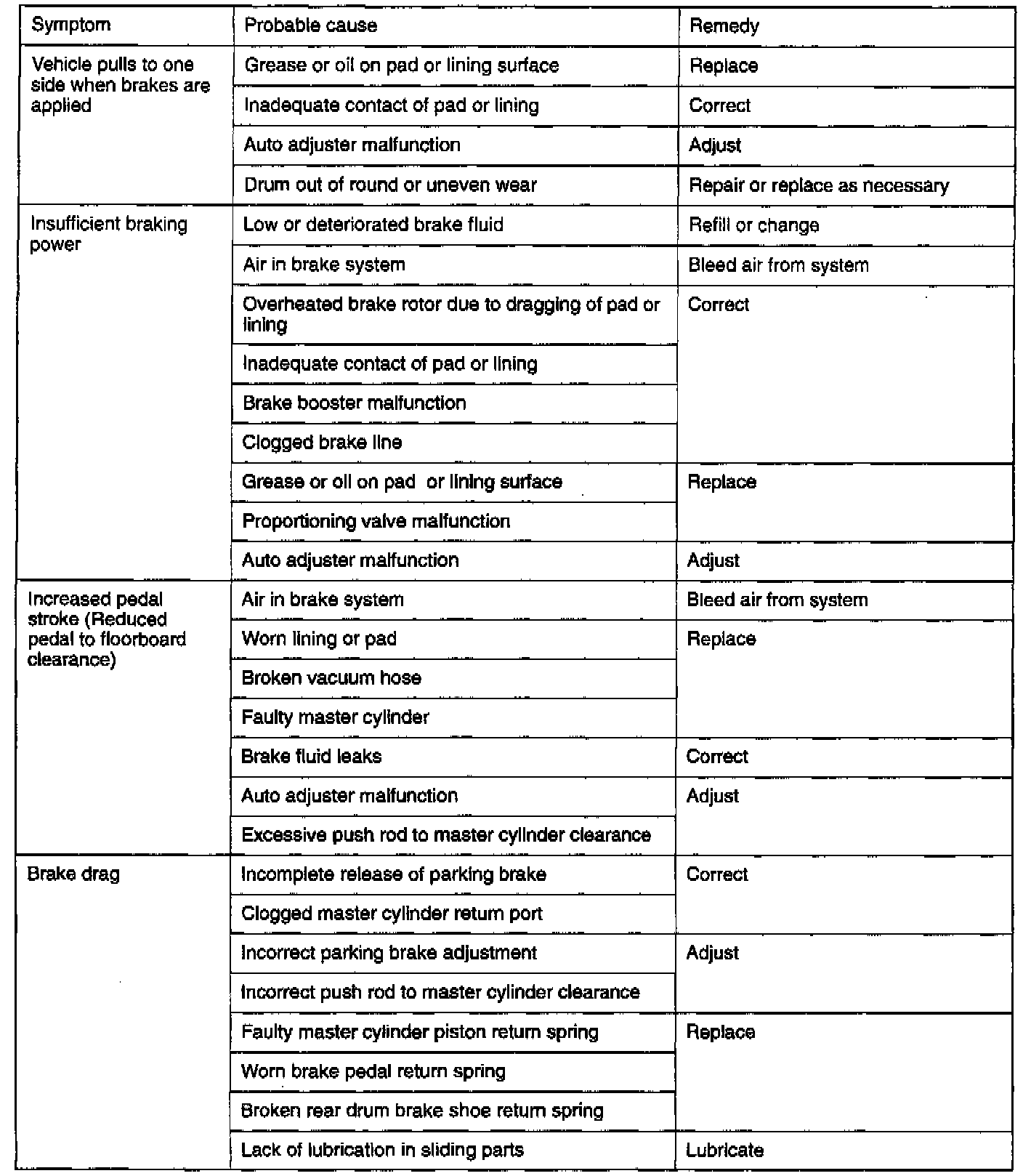

Part 1 Of 3:





PART 1 OF 3

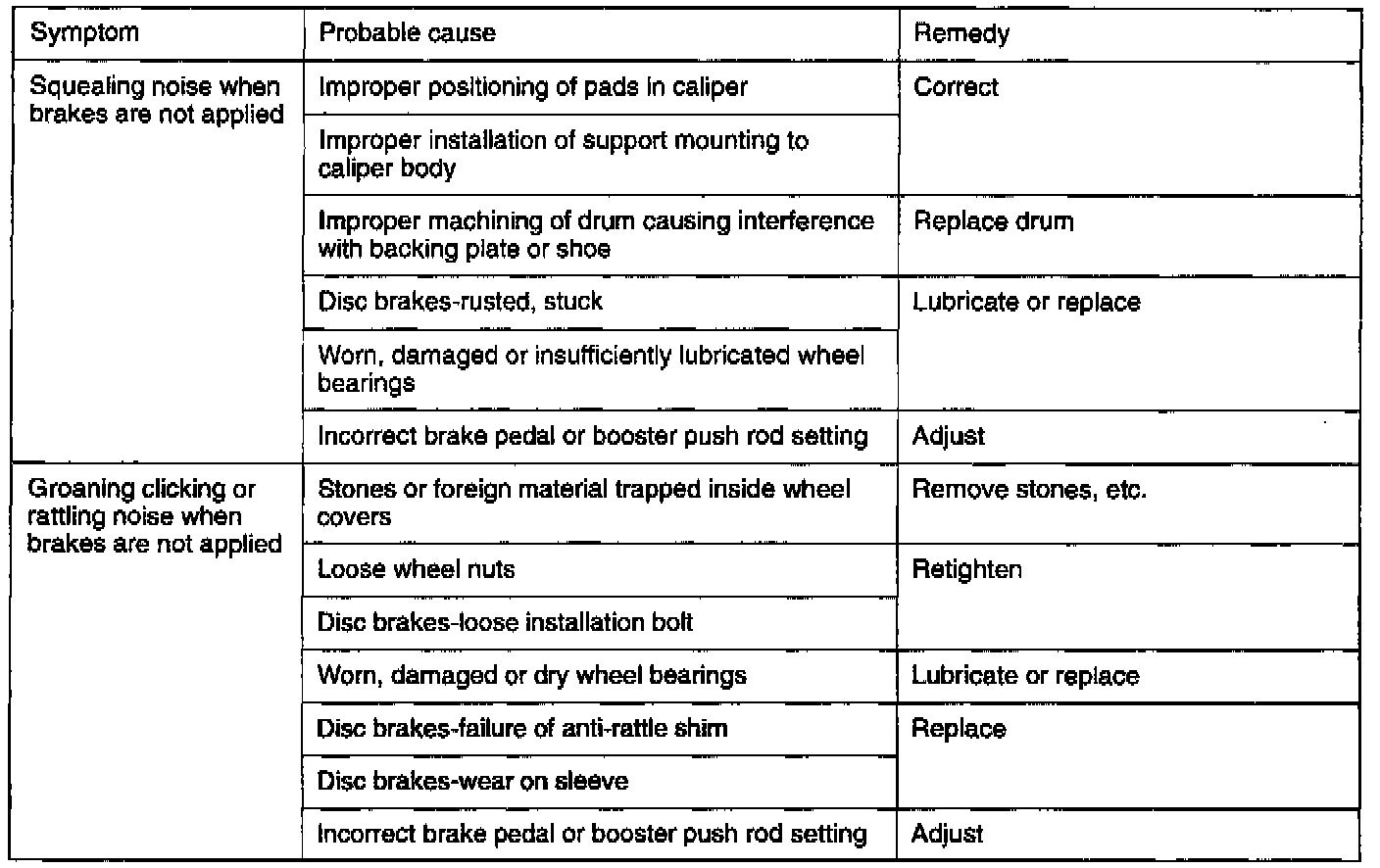

Part 2 Of 3:





PART 2 OF 3

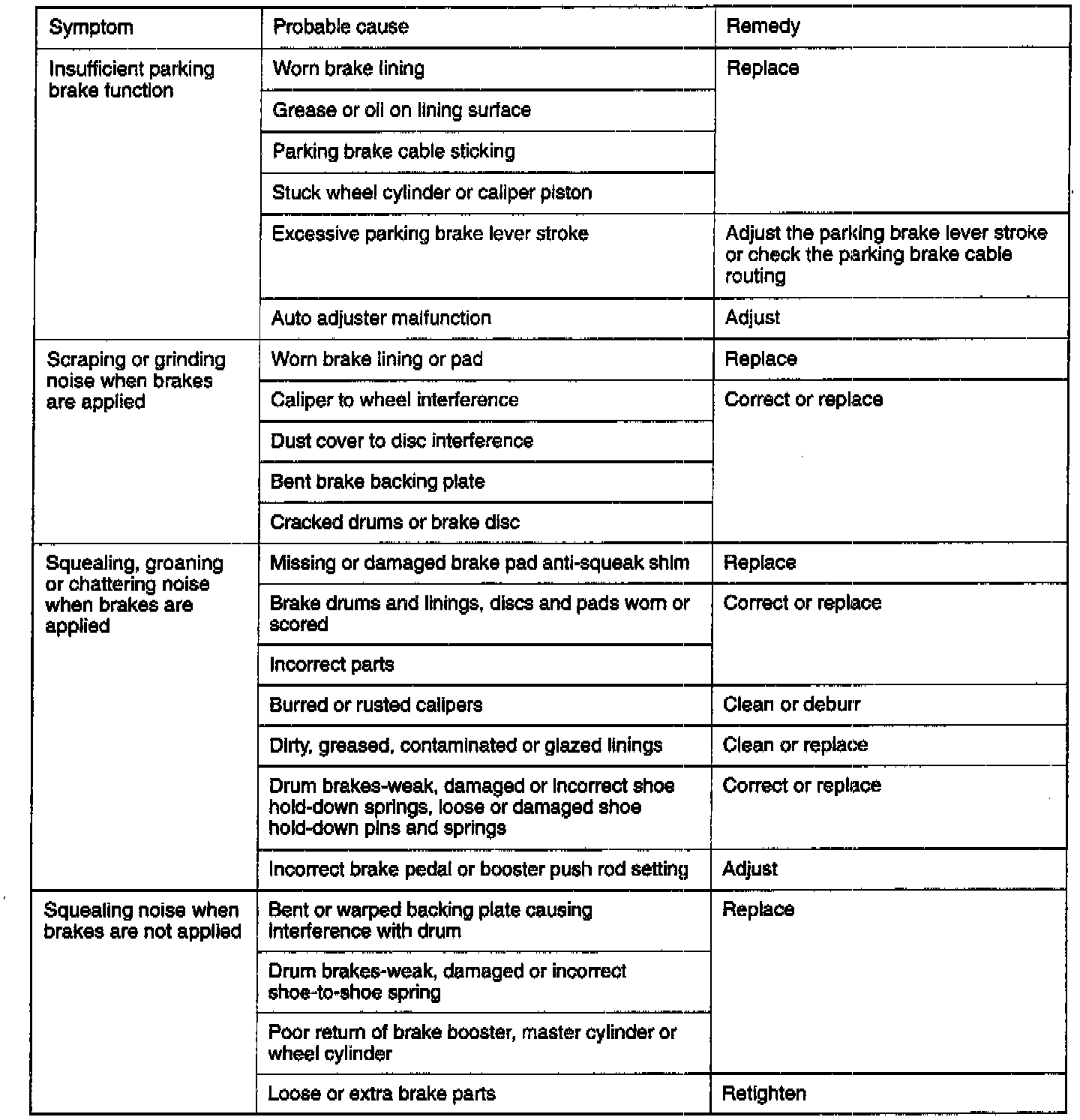

Part 3 Of 3:





PART 3 OF 3
