Parking Brake Lever: Service and Repair

REMOVAL
Pre-removal Operation:
- Floor Console Removal.

CAUTION: Supplemental Restraint System (SRS)
When removing the floor console, do not let it bump against the SRS - Electronic Control Unit (ECU) or other components.

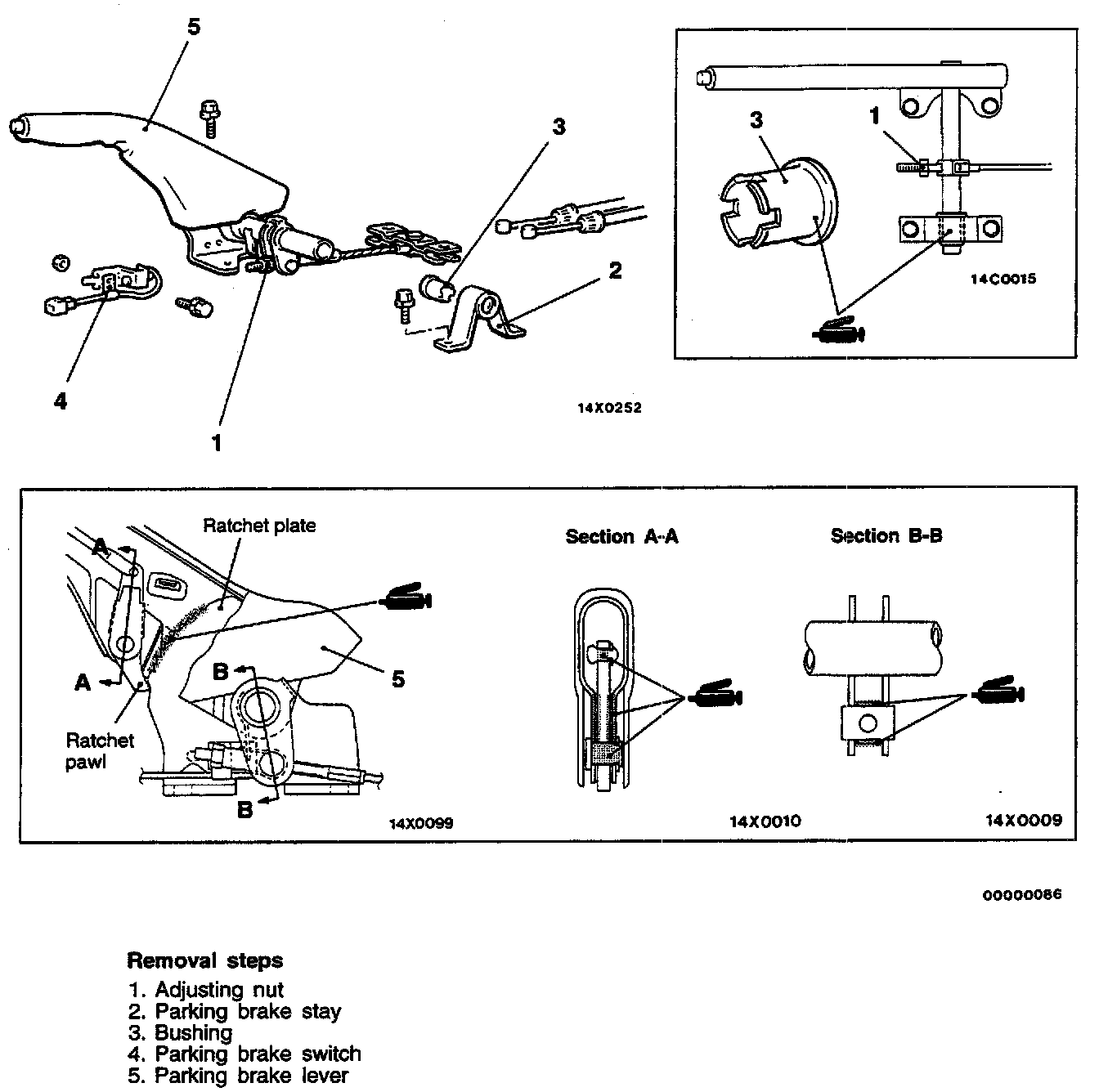

Follow removal steps outlined in illustration.

INSTALLATION
Installation in reverse order as removal.

CAUTION: SRS
When removing and installing the floor console, do not let it bump against the SRS - ECU or other components.

Post-installation Operation:
- Parking Brake Lever Stroke Adjustment.
- Floor Console Installation.
