Parking Brake Drum: Service and Repair
REMOVAL

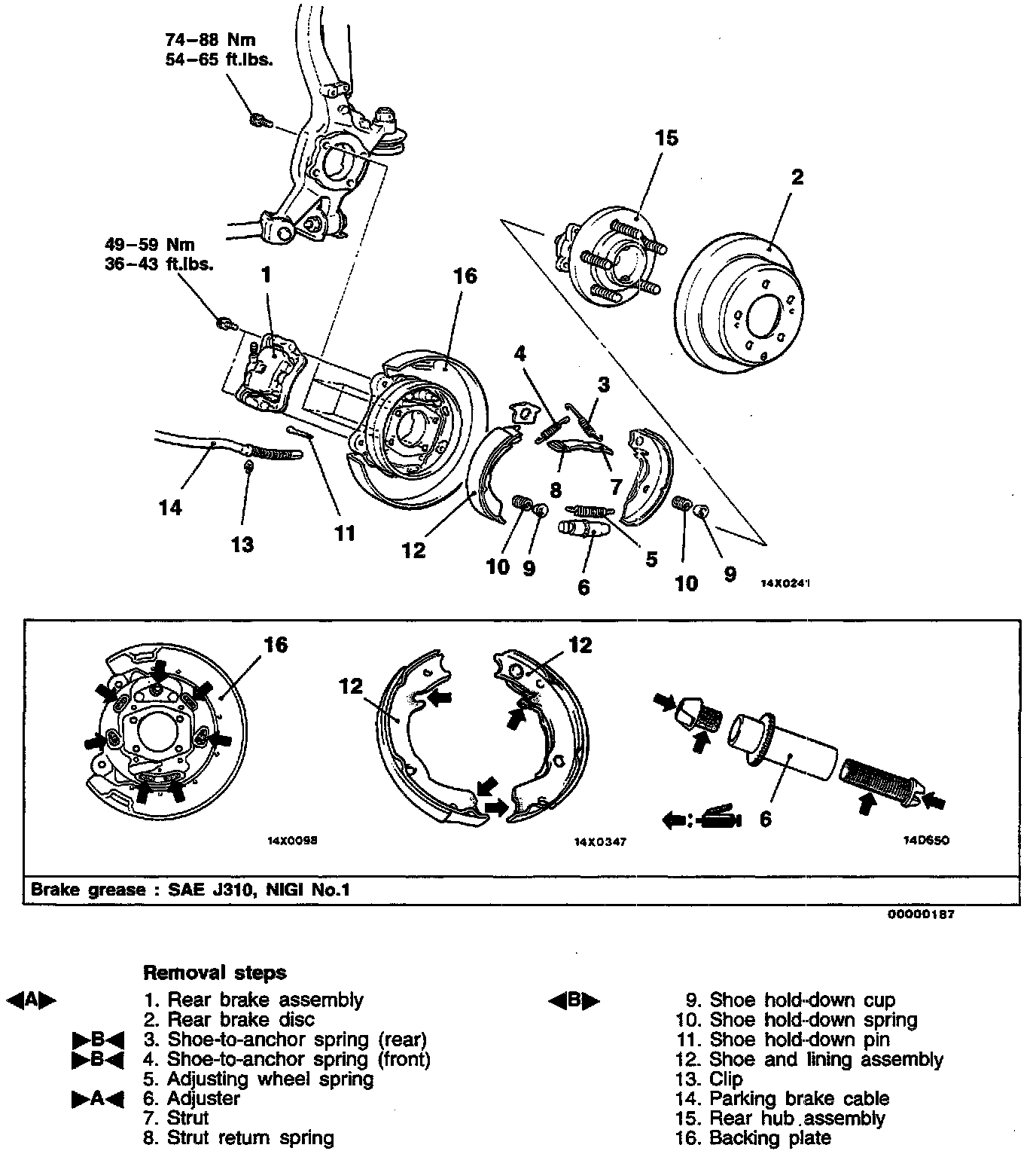

Follow removal steps outlined in illustration.
Removal Service Points
Rear Brake Assembly Removal.
Remove the rear brake assembly and support it with wire or similar.

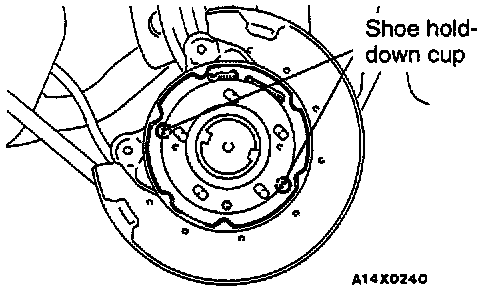

Shoe Hold-Down Cup Removal.
Extend the shoe and lining assembly, and remove the shoe hold-down cup.
INSPECTION
Brake Lining And Brake Drum Check
1) Measure the thickness of the brake lining at several places.
Standard value: 2.8 mm (0.11 inch)
Limit: 1.0 mm (0.039 inch)
CAUTION: Replace the brake shoes if the thickness of the brake lining is the limit value or less.

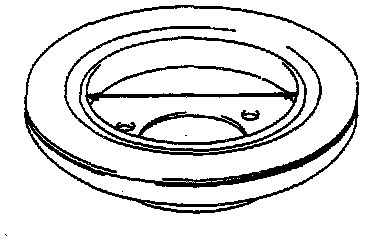

2) Using a dial gauge caliper or micrometer (for inner side), measure the brake disc drum inner diameter at two or more places.
Standard value: 168.0 mm (6.6 inch)
Limit: 169.0 mm (6.7 inch)
CAUTION: Replace the drum if the brake disc drum inner diameter is the limit value or more.
Installation Service Points
>A< Adjuster Installation.
Install the adjuster so that the shoe adjusting bolt of left hand wheel is attached towards the front of the vehicle, and the shoe adjusting bolt of right hand wheel is towards the rear of the vehicle.

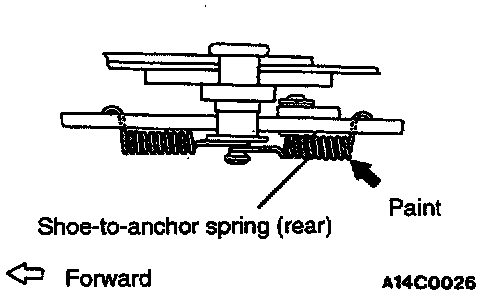

>B< Shoe-To-Anchor Spring Installation.
The load on the respective shoe-to-anchor springs is different, so the spring in the figure has been painted.
NOTE: The figure shows the left wheel; for the right wheel, the position is symmetrical.
Post-installation Operation:
- Parking Brake Lever Stroke Adjustment.
