Drum-In-Disc Brake

REMOVAL
Pre-removal Operation:
- Floor Console Removal.

CAUTION: Supplemental Restraint System (SRS)
When removing the floor console, do not let it bump against the SRS - Electronic Control Unit (ECU) or other components.

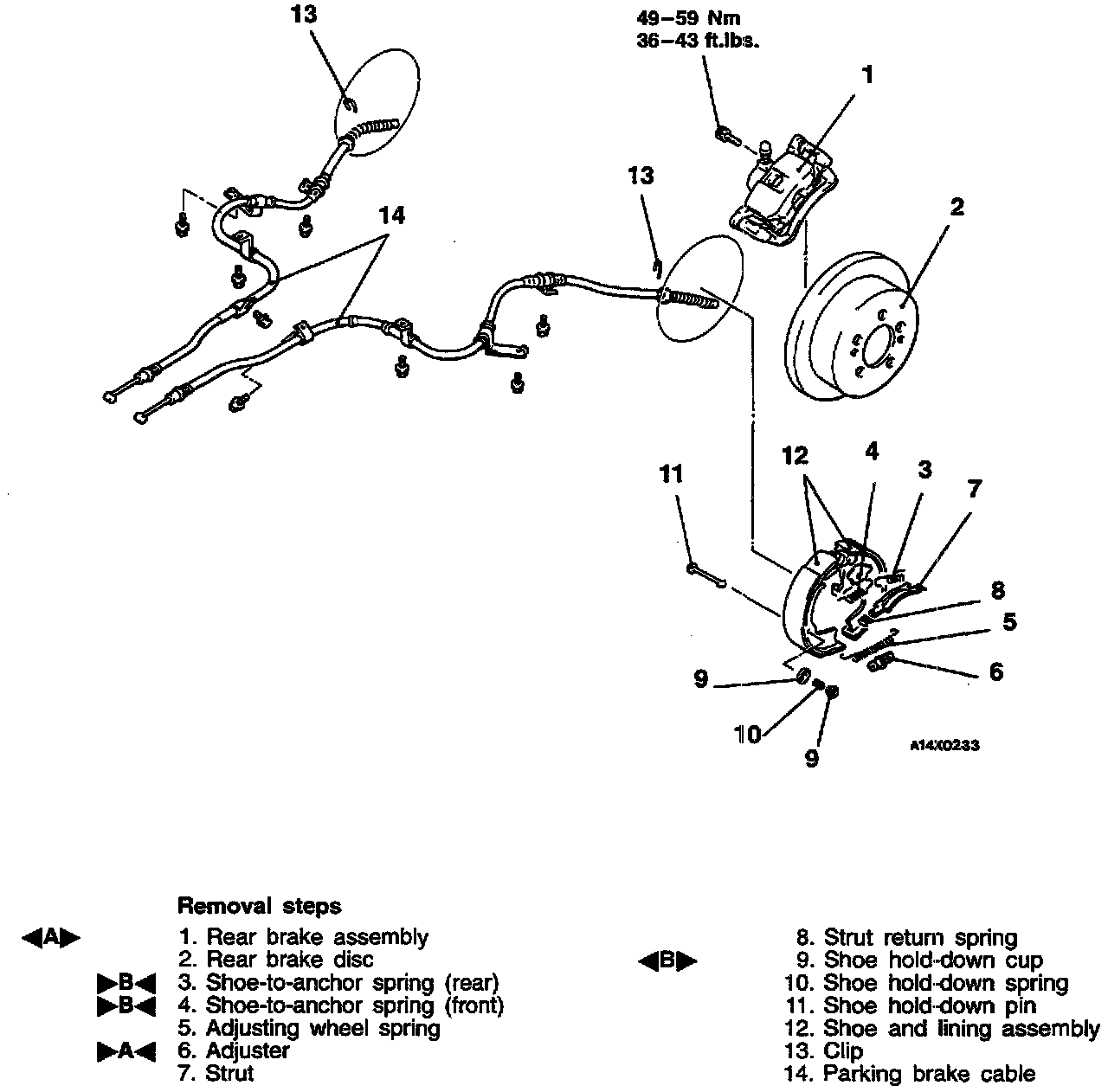

Follow removal steps outlined in illustration.

Removal Service Point





Rear Brake Assembly Removal.
Remove the rear brake assembly and support it with wire or similar.

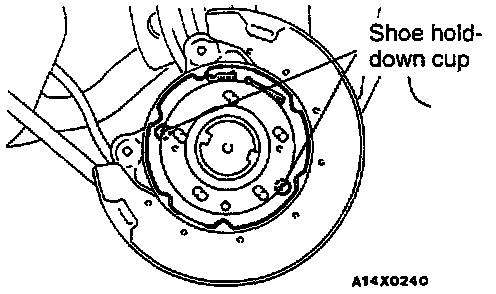

Shoe Hold-Down Cup Removal.
Extend the shoe and lining assembly, and remove the shoe hold-down cup.

INSTALLATION
Installation in reverse order as removal.

CAUTION: SRS
When installing the floor console, do not let it bump against the SRS - ECU or other components.

Installation Service Points

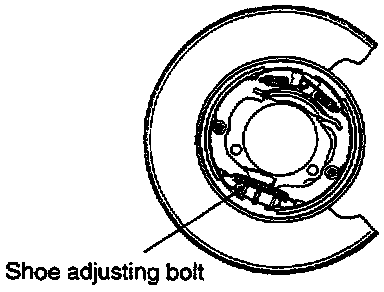

>A< Adjuster Installation.
Install the adjuster so that the shoe adjusting bolt of left hand wheel is attached towards the front of the vehicle, and the shoe adjusting bolt of right hand wheel is towards the rear of the vehicle.

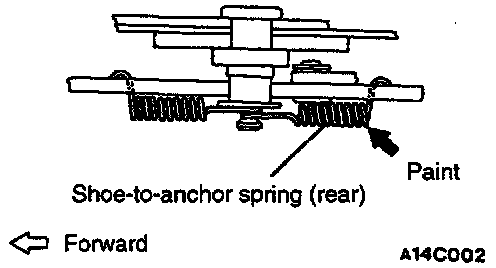

>B< Shoe-To-Anchor Spring Installation.
The load on the respective shoe-to-anchor springs is different, so the spring in the figure has been painted.

NOTE: The figure shows the left wheel; for the right wheel, the position is symmetrical.

Post-installation Operation:
- Parking Brake Lever Stroke Adjustment.
- Floor Console Installation.
