Without Antilock Brakes

REMOVAL
Pre-removal Operation:
- Brake Fluid Draining.
- Link Assembly Mounting Bolts Removal <2.0L Engine (Turbo) and 2.4L Engine>.
- Intake Manifold Removal <2.0L Engine (Non-turbo)>.

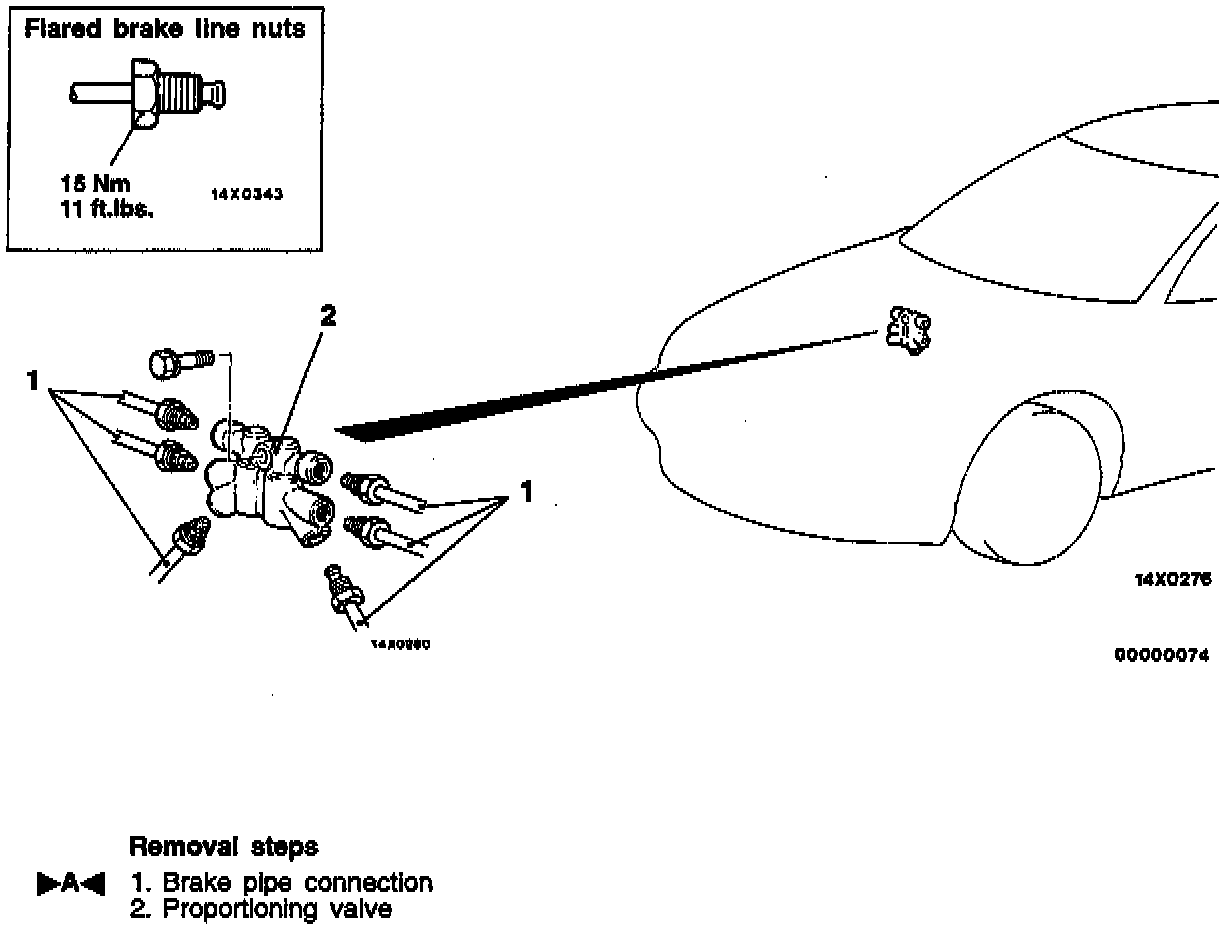

Follow removal steps outlined in illustration.

INSTALLATION
Installation in reverse order as removal.

Installation Service Point





>A< Brake Pipe Connection.

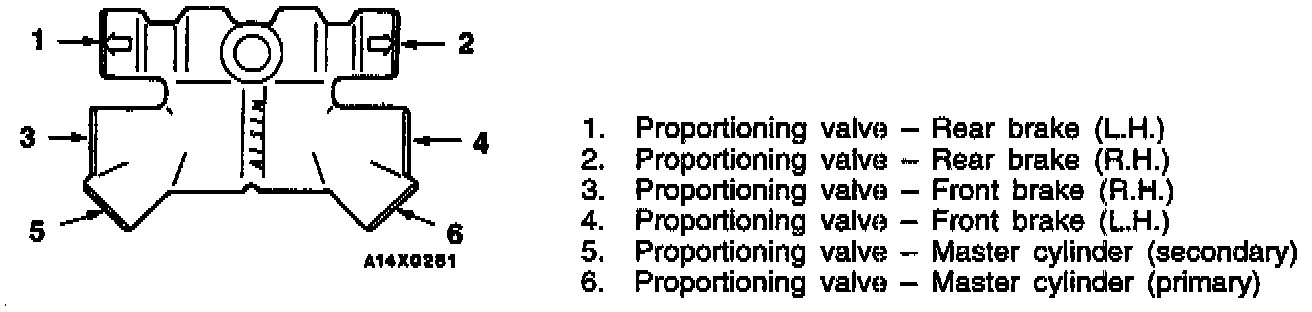

Connect the pipes to the proportioning valve as shown in the illustration.

Post-installation Operation:
- Brake Fluid Supplying.
- Brake Line Bleeding.
- Link Assembly Mounting Bolls Installation <2.0L Engine (Turbo) and 2.4L Engine>.
- Intake Manifold Installation <2.0L Engine (Non-turbo)>.
