Brakes and Traction Control: Description and Operation

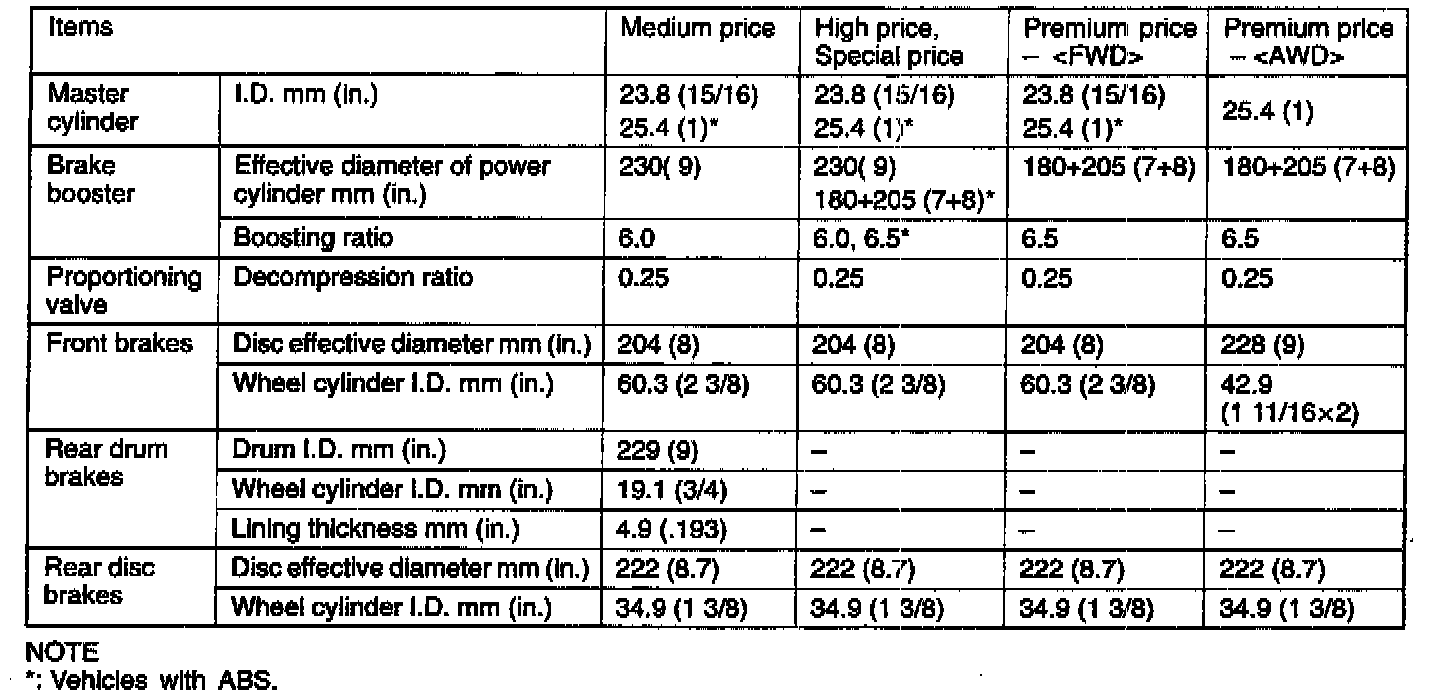

GENERAL INFORMATION
The brake system has high reliability and durability which maintains excellent braking performance.
The main features are as follows.
- A dual type master cylinder is equipped on all models.
- Both a single type and a tandem type brake booster have been adopted.
- Disc brakes has been adopted as the front brakes.
AWD: Floating caliper, double-piston and ventilated disc
FWD: Floating caliper, single-piston and ventilated disc
- Disc brakes has been adopted as the rear brakes. (Floating caliper, single-piston and solid disc)
