Scan Tool Testing and Procedures

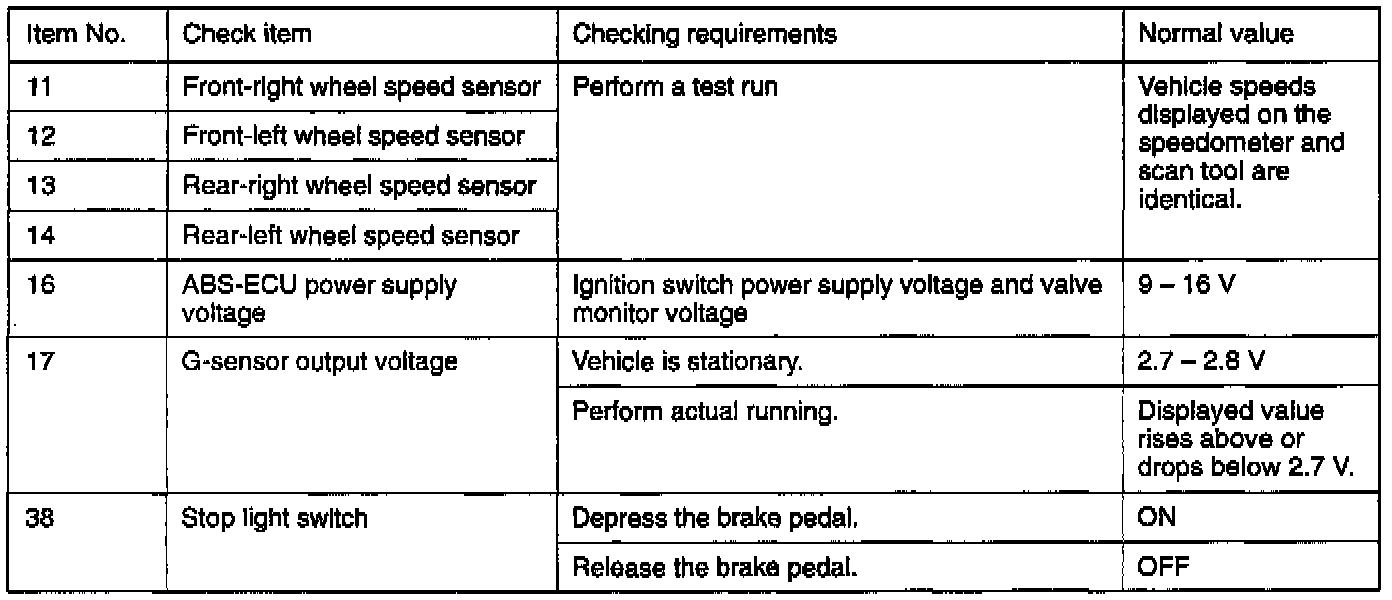

The following items can be read by the scan tool from the ABS-ECU input data





1. When the system is normal.
2. When the ABS-ECU shut off ABS operation.
When the diagnostic trouble system stops the ABS-ECU, the scan tool display data will be unreliable.
