Electrical Diagrams

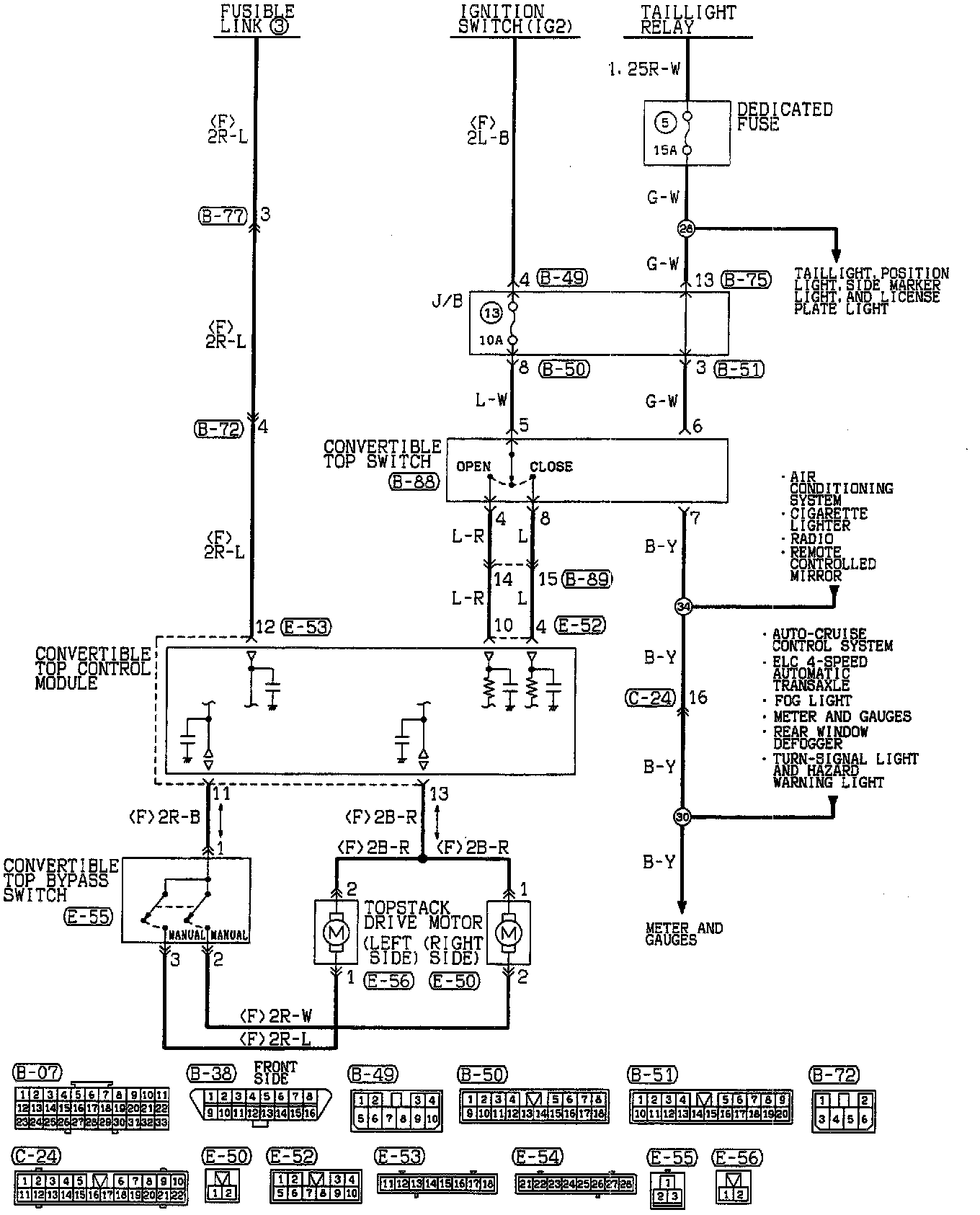

Convertible Top (Part 1 Of 3):

Convertible Top Bypass Switch
Convertible Top Control Module
Convertible Top Switch
J/B
Topstack Drive Motor (Left & Right Side)

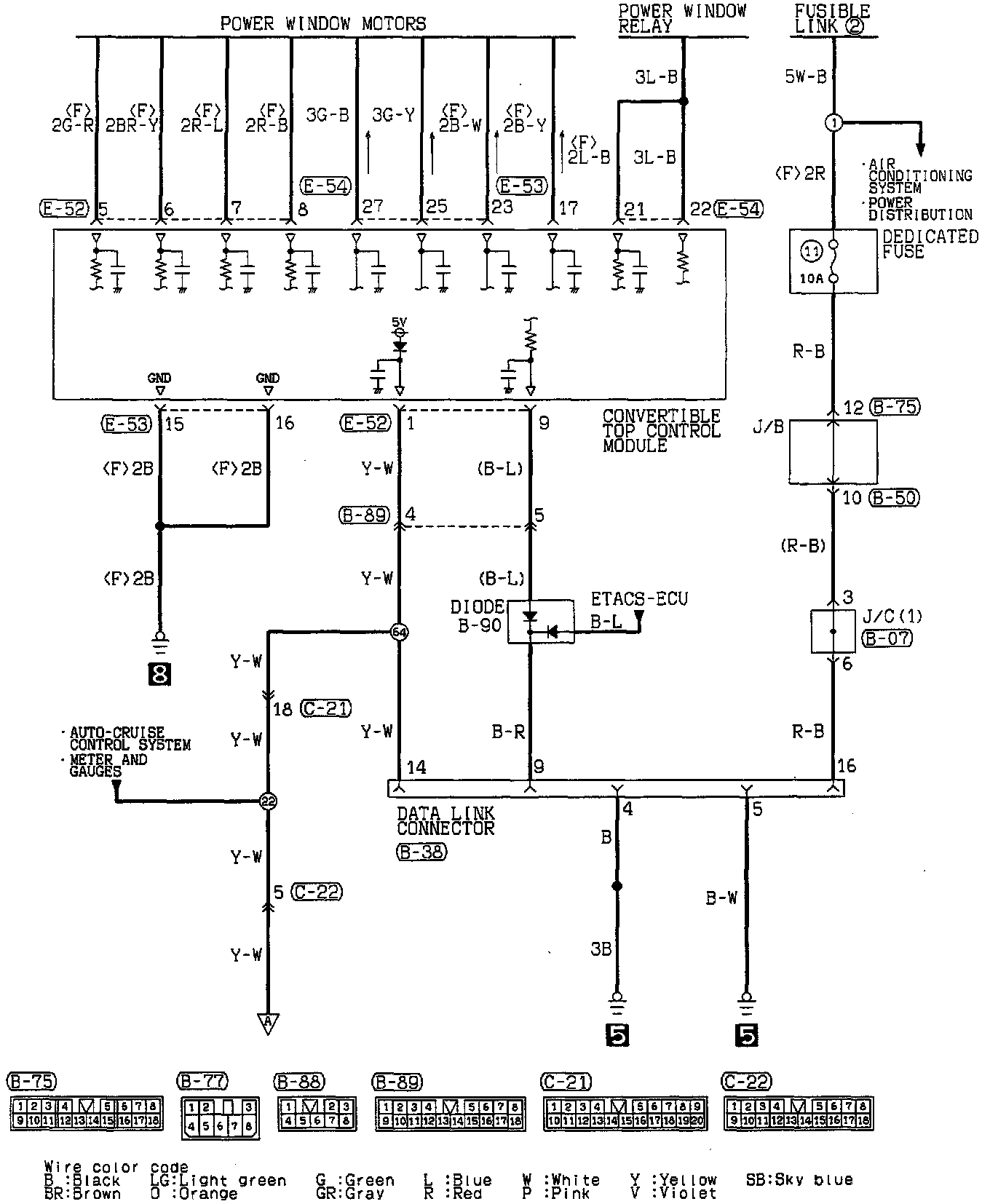

Convertible Top (Part 2 Of 3):

Convertible Top Control Module
Data Link Connector
Dedicated Fuse
Diode
J/B
J/C (1)

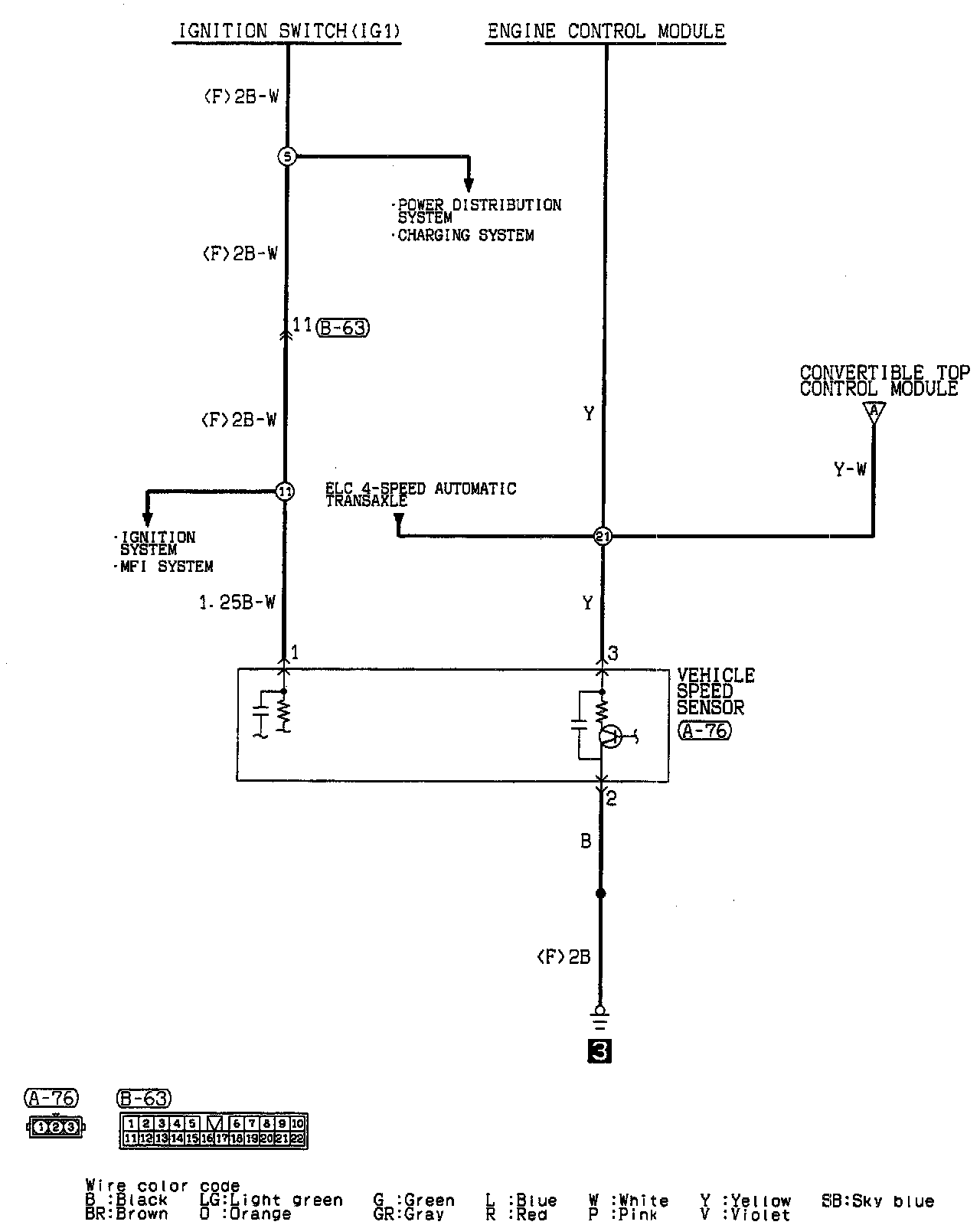

Convertible Top (Part 3 Of 3):

Vehicle Speed Sensor
