Motor Antenna




Removal
To remove follow the steps listed in the image and note the following:




Step 3: Antenna Feeder Cable B Removal

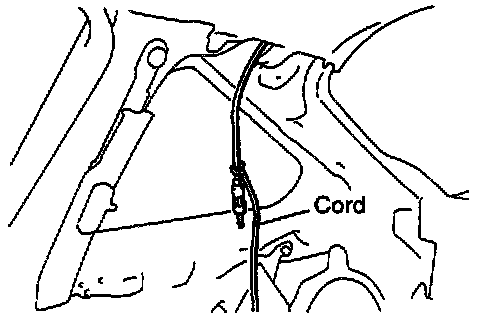

1. Tie a cord to the end of the antenna feeder cable.

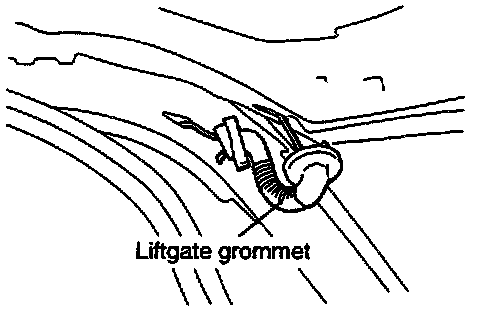

2. Remove the Liftgate grommet.
3. Pull out the antenna feeder cable little by little to remove it.

Installation
To install reverse the steps listed in the image.
