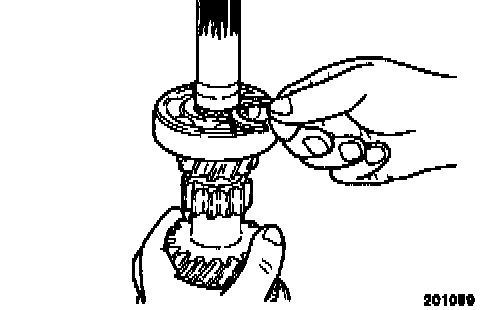

[J] Snap Ring Installation

>J< Snap Ring Installation






Snap rings are available in three different thickness. Select the thickest one that fits in the snap ring groove.

Standard value:
Input shaft front bearing end play 0.01 - 0.12 mm (0.0004 - 0.0047 inch)

CAUTION: Do not damage the input shaft oil seal contacting portion.
