Snap Rings and Spacers For Adjustment

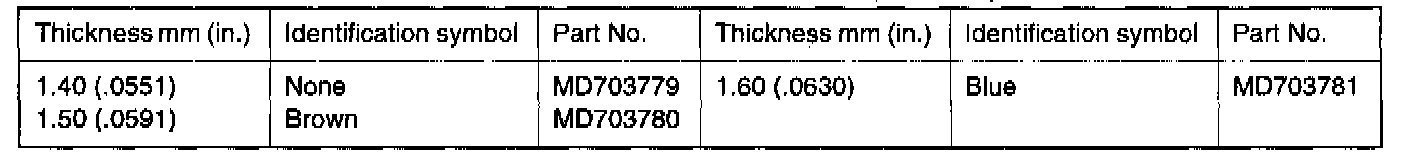

Snap Ring (For Adjustment Of Intermediate Rear Front Bearing End Play)

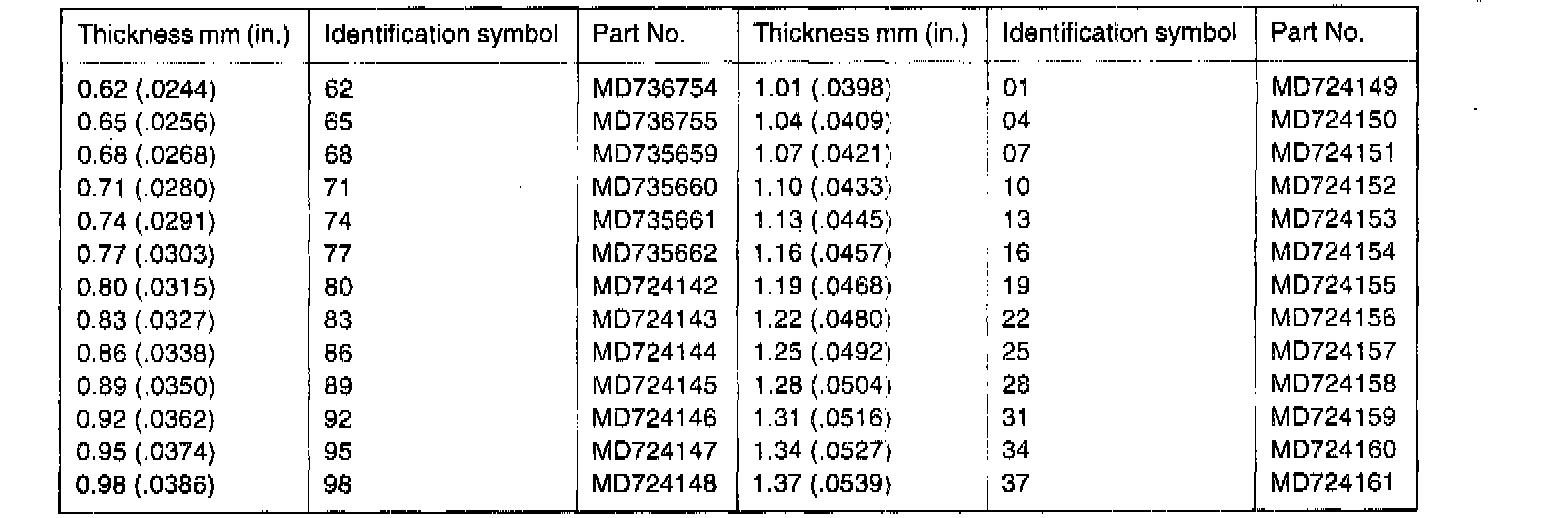

Spacer (For Adjustment Of Intermediate Gear End Play)
