E Connectors - Interior Harness
E Connectors - Interior Harness

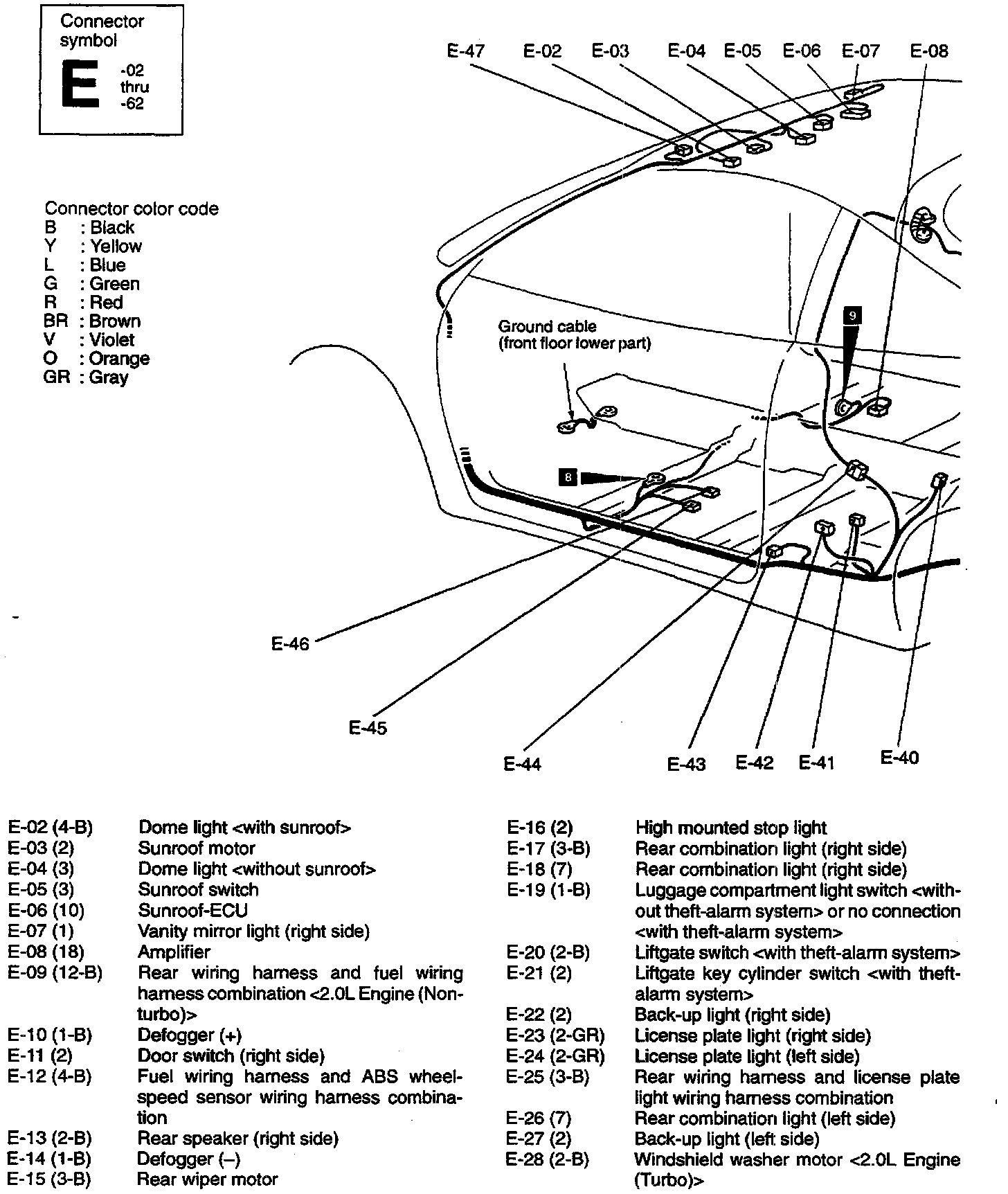

Interior E-02(4-B) Thru E-28(2-B):

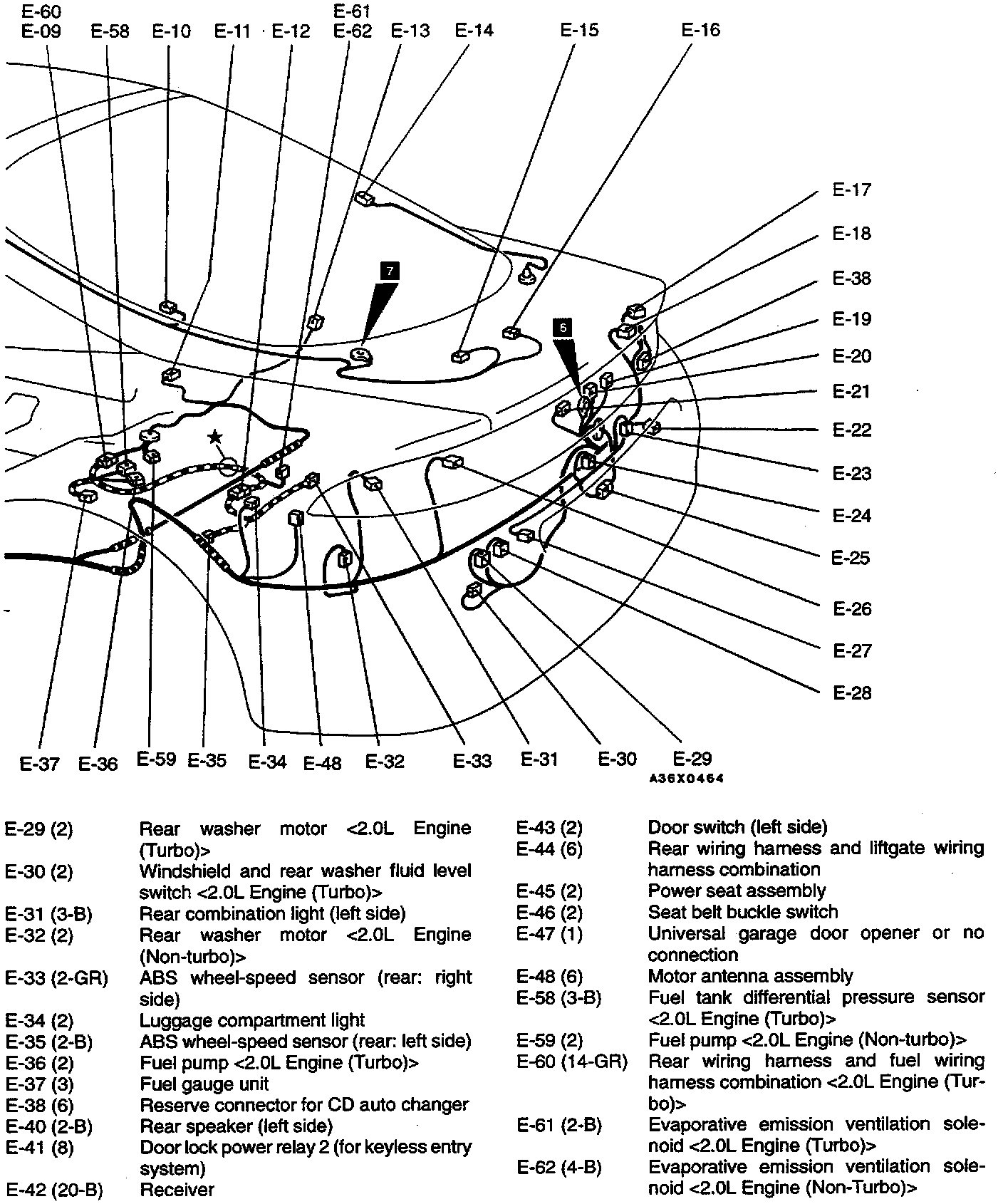

Interior E-29(2) Thru E-62(4-B):
