Main Relay (Computer/Fuel System): Locations

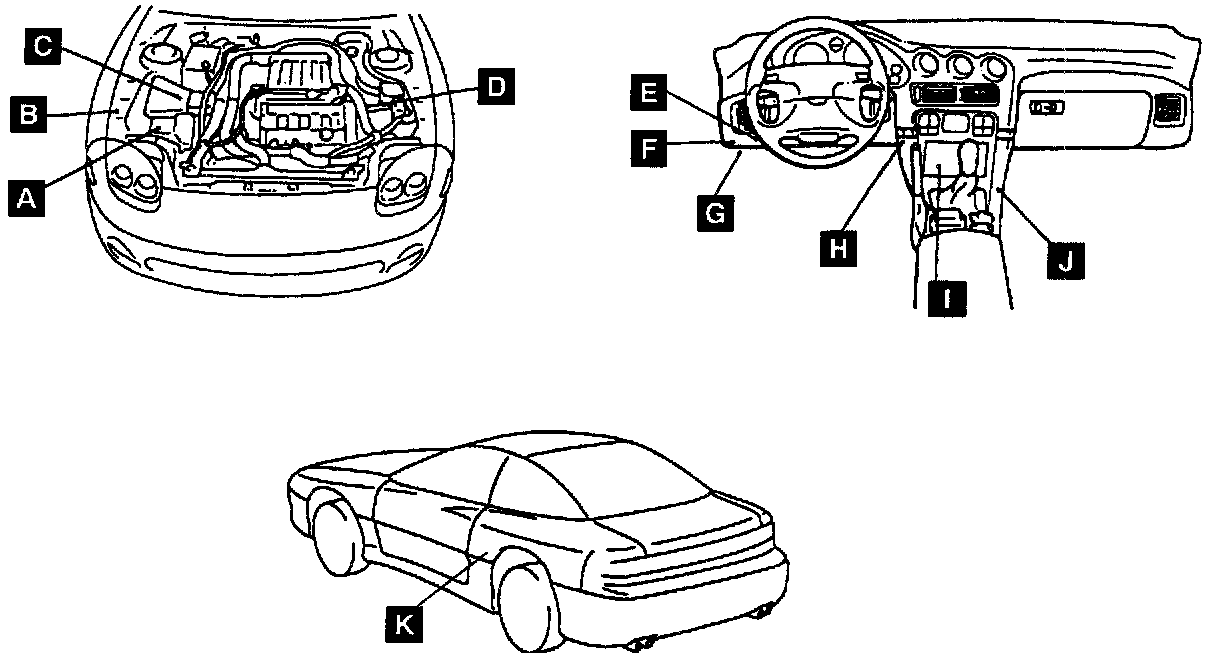

Relay Locations Overall View:

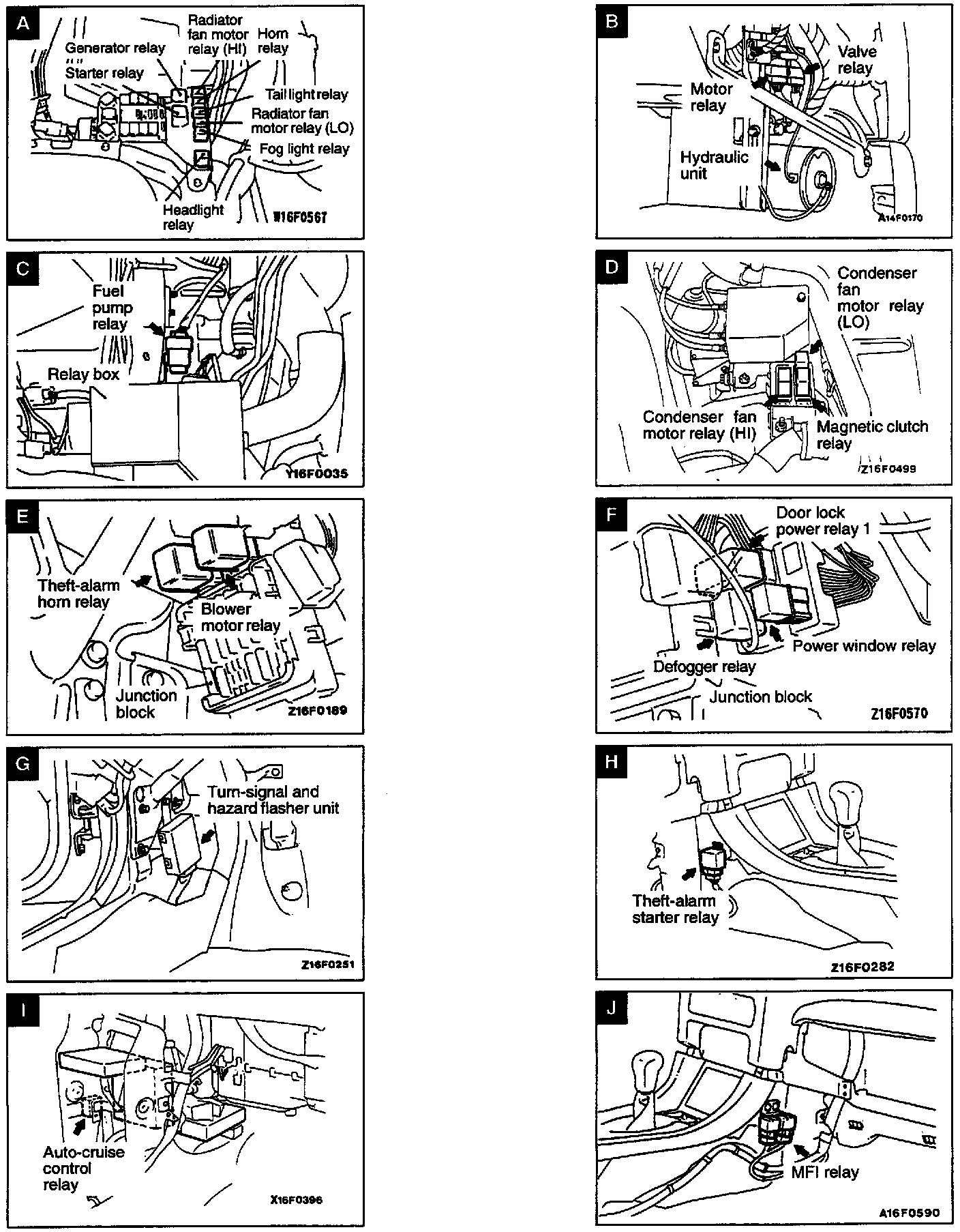

Relay Locations Views A-J:




Name Symbol
MFI Relay J
