Control Assembly: Testing and Inspection

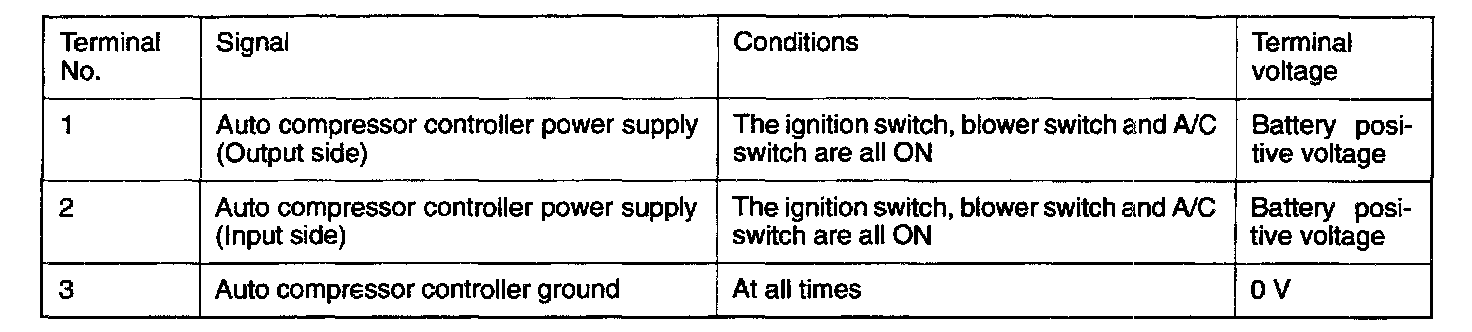

Disconnect the amplifier and inspect the connector on the wire harness side as shown in the chart.

Test Conditions:
1. Ignition switch: ON
2. Air conditioning switch: ON
3. Temperature control lever: MAX. COOL
4. Blower switch: HI
