Electronic Climate Control Panel

REMOVAL SERVICE POINT

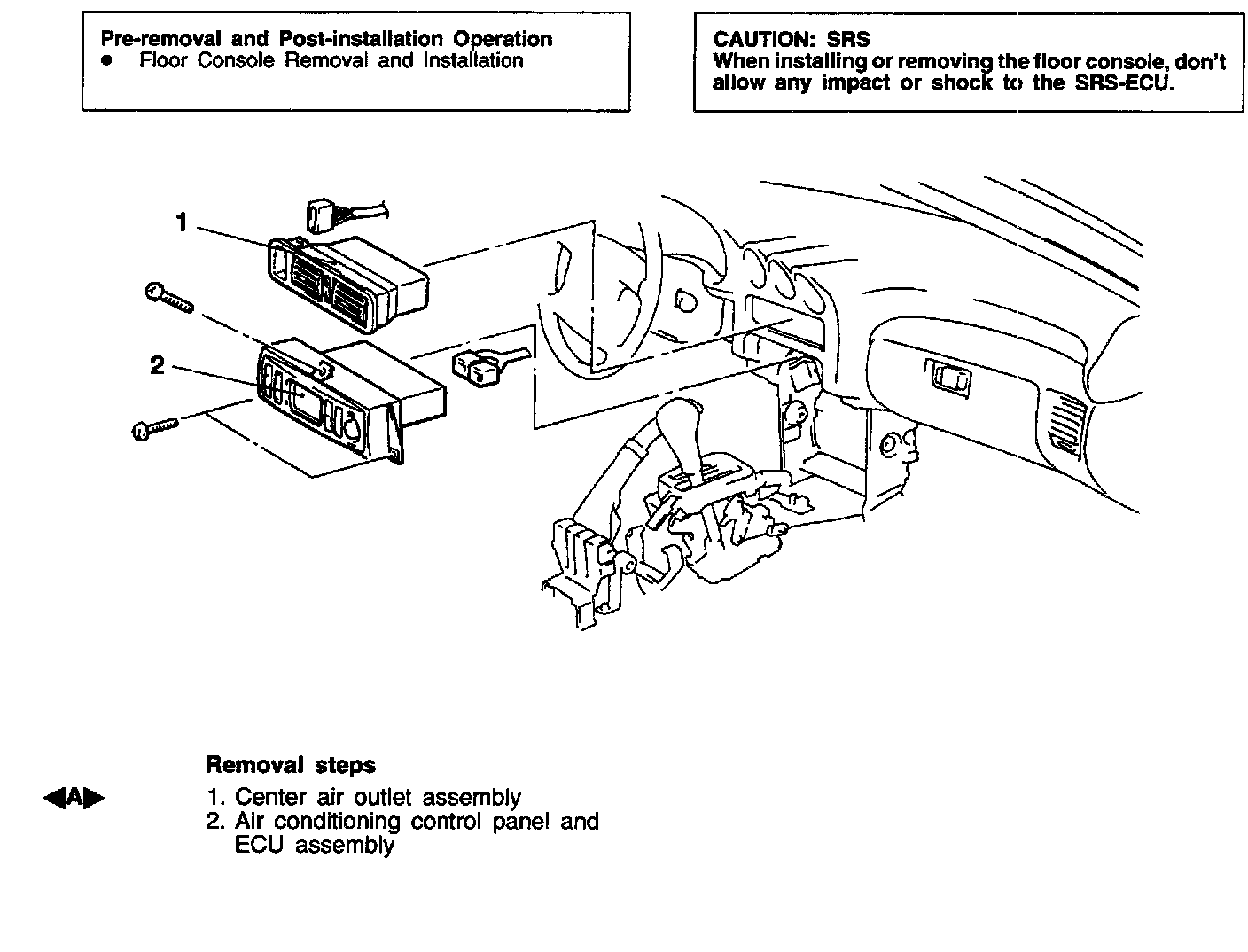

A CENTER AIR OUTLET ASSEMBLY REMOVAL

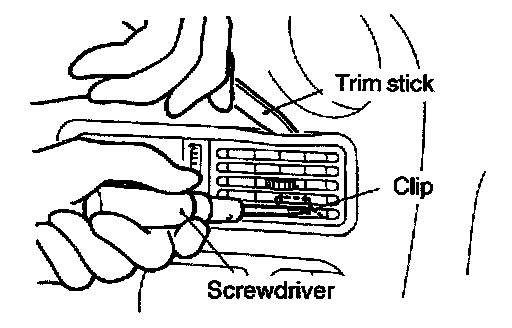

Disengaging the clips (2 positions) of the center air outlet assembly with a flat tip screwdriver, remove the center air outlet assembly with a plastic trim stick.
