Standard Wave Form Observation Conditions
Standard Wave Form Observation Conditions

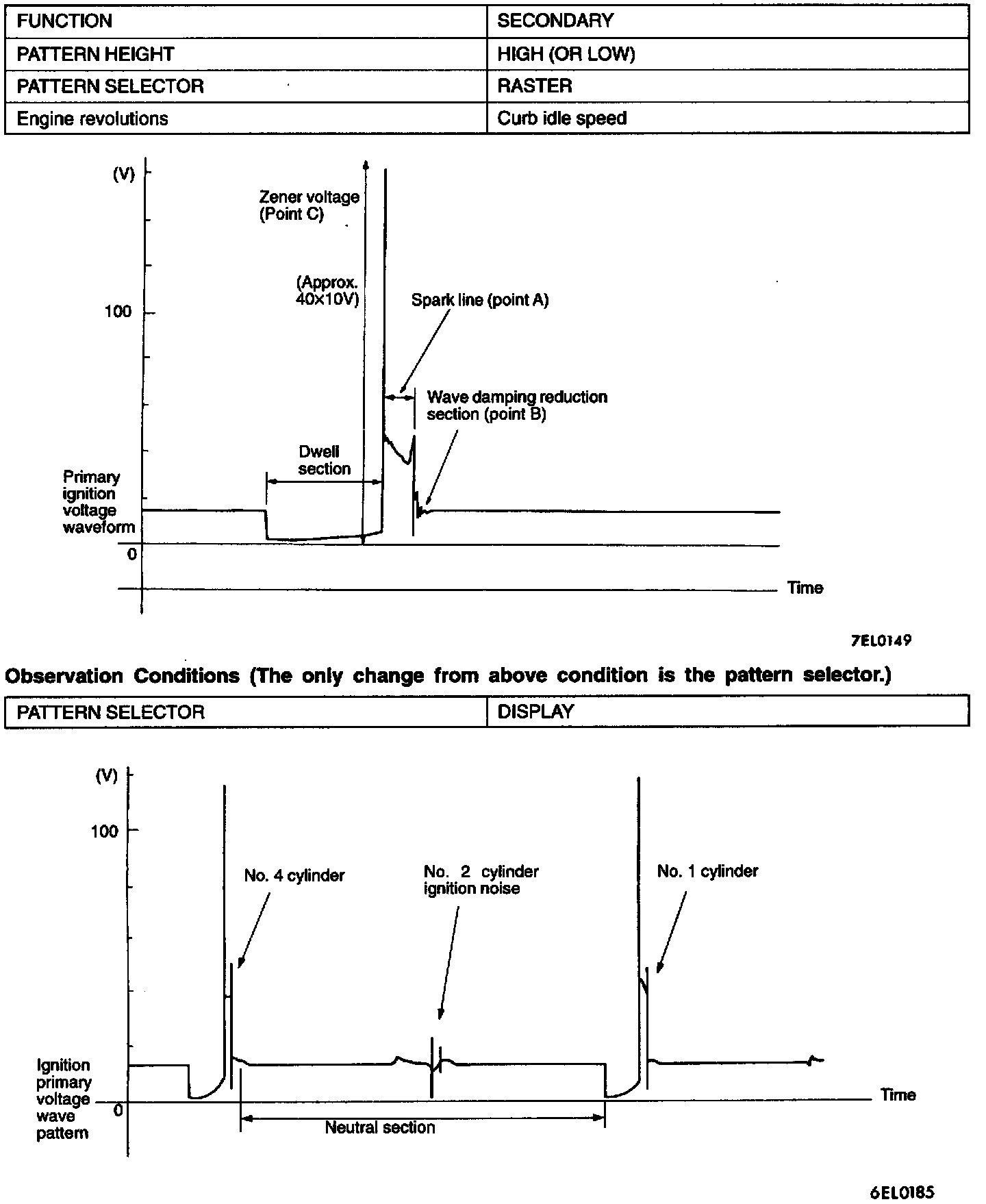

Standard Waveform - Observation Conditions:

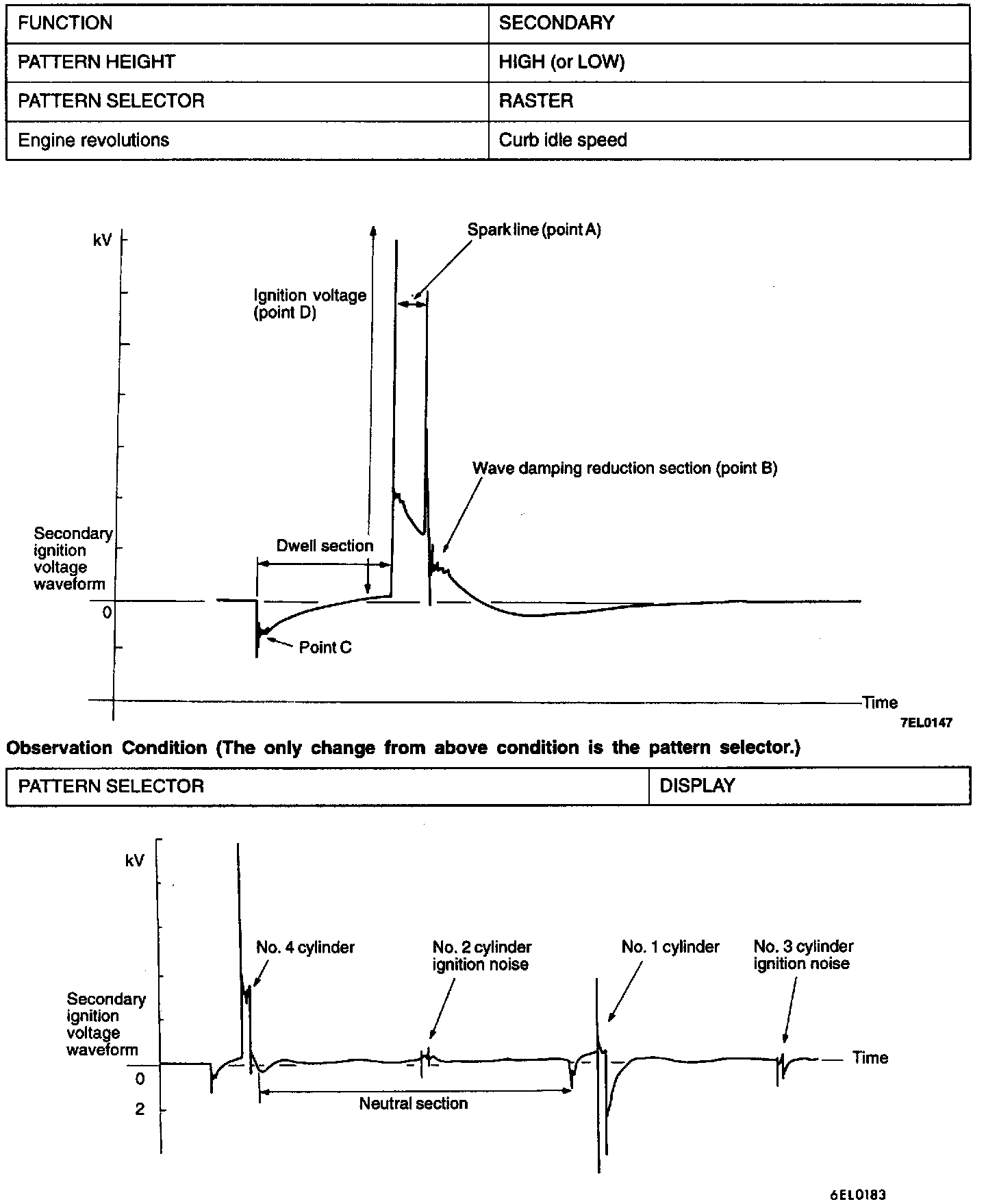

Standard Waveform - Observation Conditions:
