Antitheft and Alarm Systems

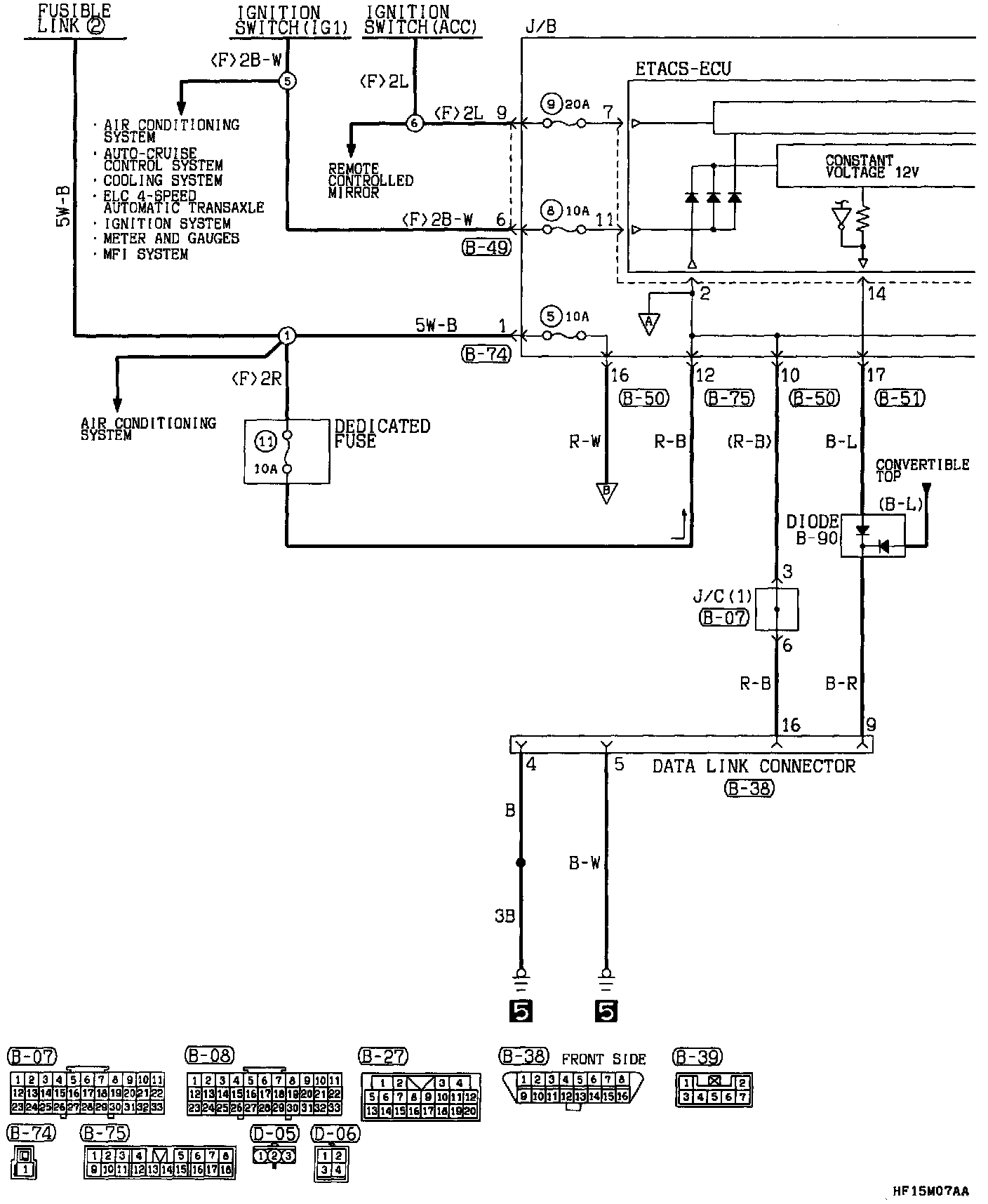

Theft Alarm System Circuit (Part 1 Of 8):

Data Link Connector
Dedicated Fuse
Diode
J/B
- Constant Voltage 12V
- Detection Circuit
- ETACS-ECU
J/C (1)

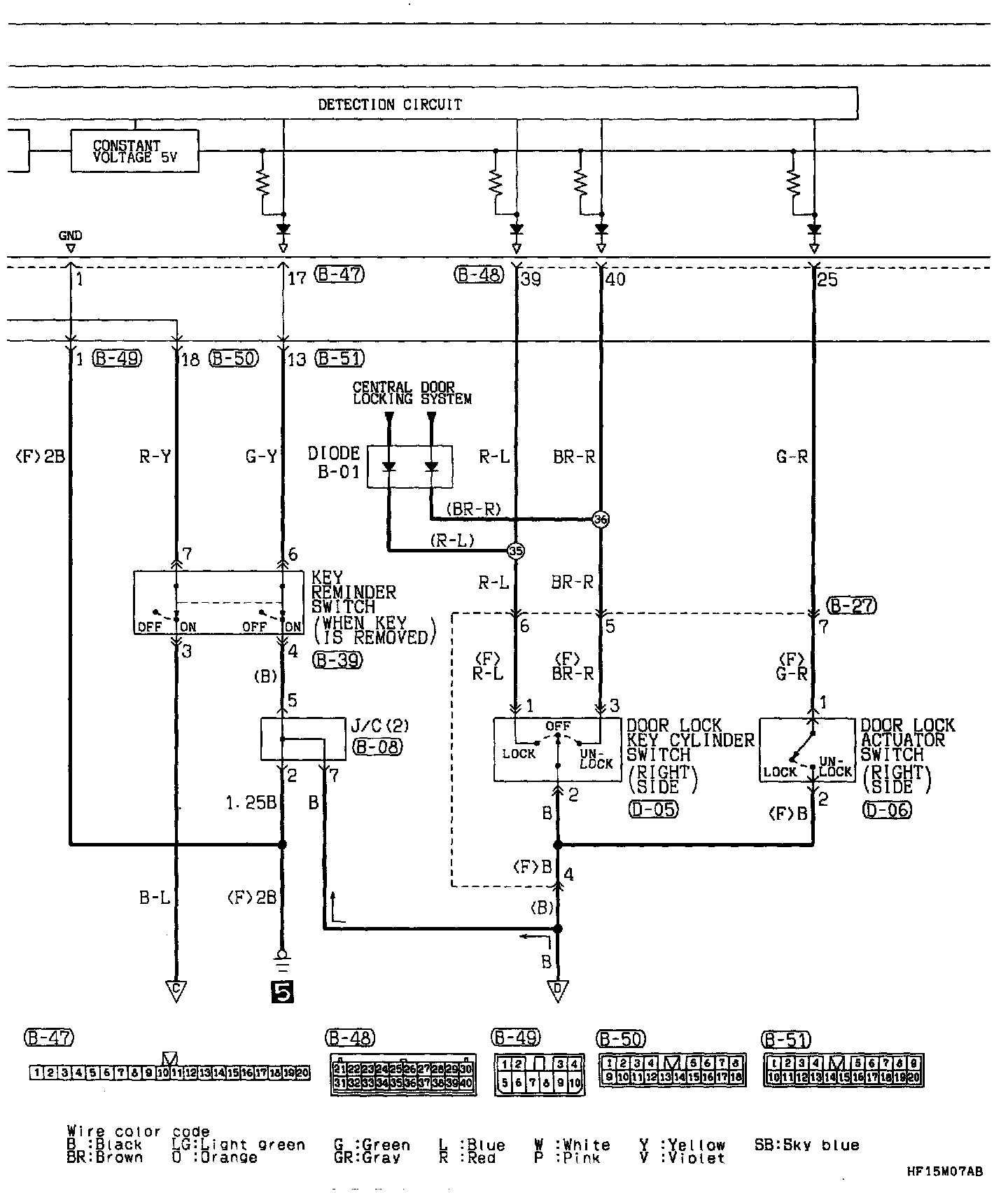

Theft Alarm System Circuit (Part 2 Of 8):

Diode
Door Lock Actuator Switch (Right Side)
Door Lock Key Cylinder Switch (Right Side)
Key Reminder Switch (When Key Is Removed)
J/B
- Constant Voltage 5V
- Detection Circuit
- ETACS-ECU
J/C (2)

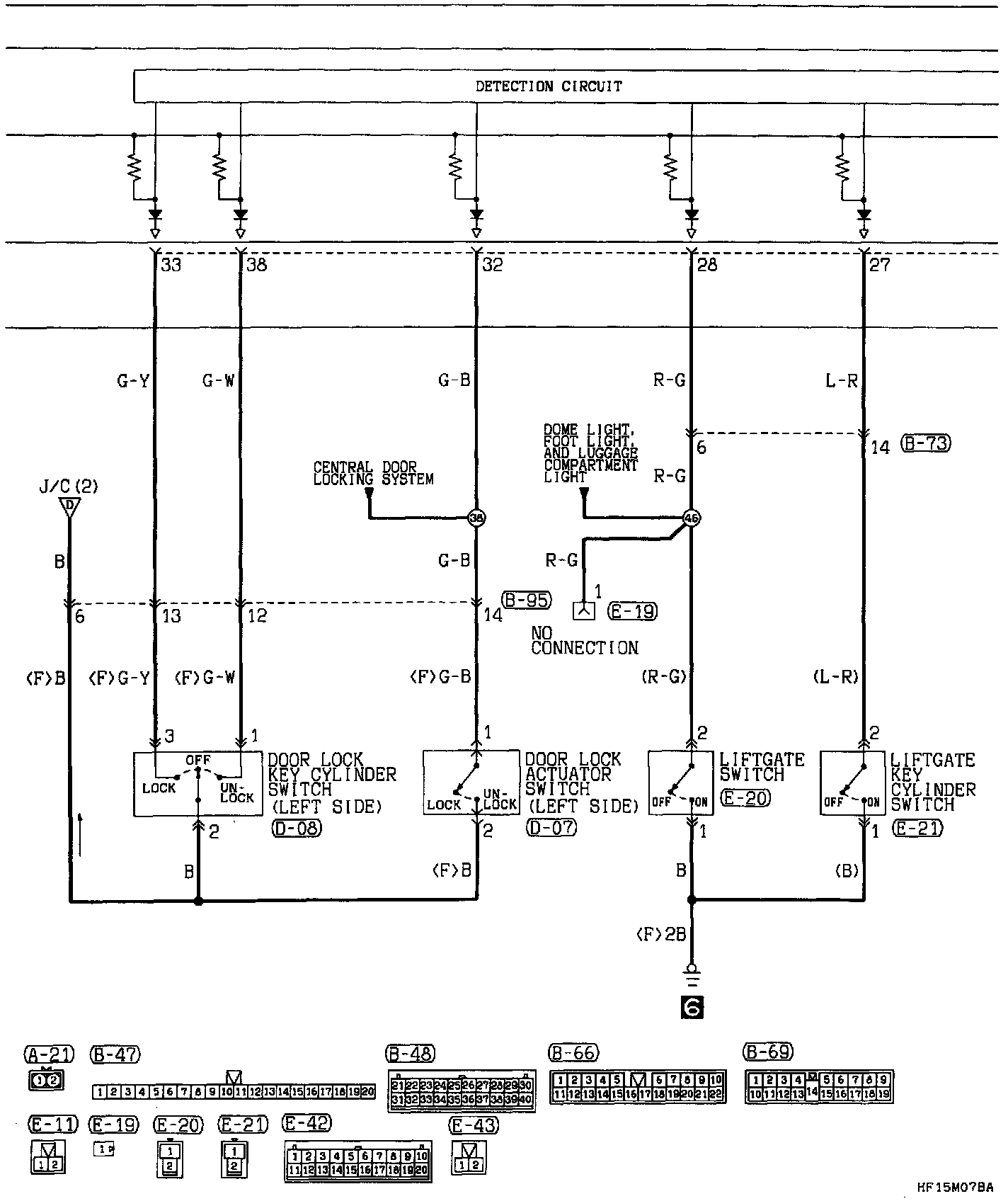

Theft Alarm System Circuit (Part 3 Of 8):

Door Lock Actuator Switch (Left Side)
Door Lock Key Cylinder Switch (Left Side)
J/B
- Detection Circuit
- ETACS-ECU
Liftgate Switch
Liftgate Key Cylinder Switch

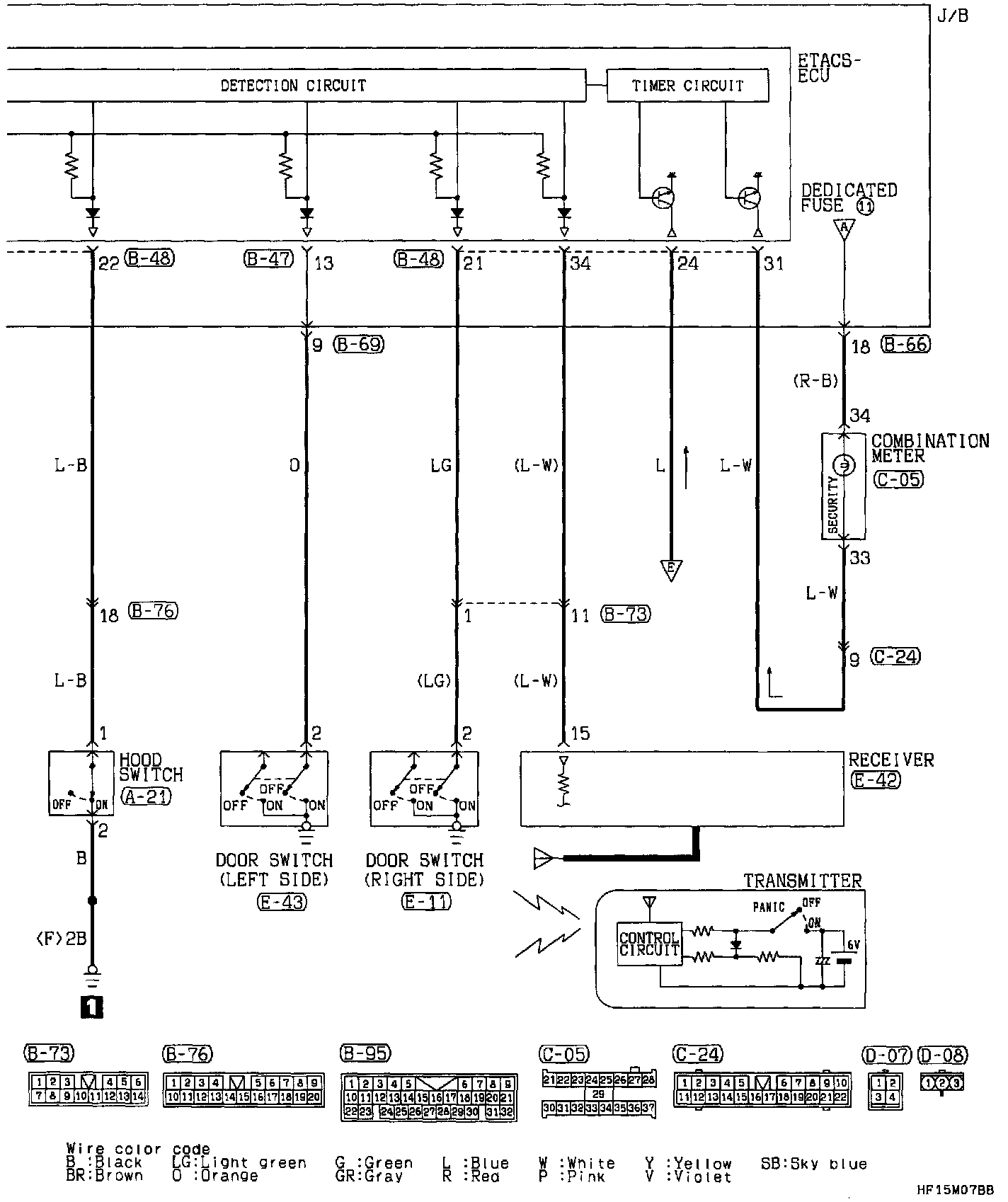

Theft Alarm System Circuit (Part 4 Of 8):

Combination Meter
Door Switch (Left & Right Side)
Hood Switch
J/B
- Detection Circuit
- ETACS-ECU
- Timer Circuit
Receiver
Transmitter

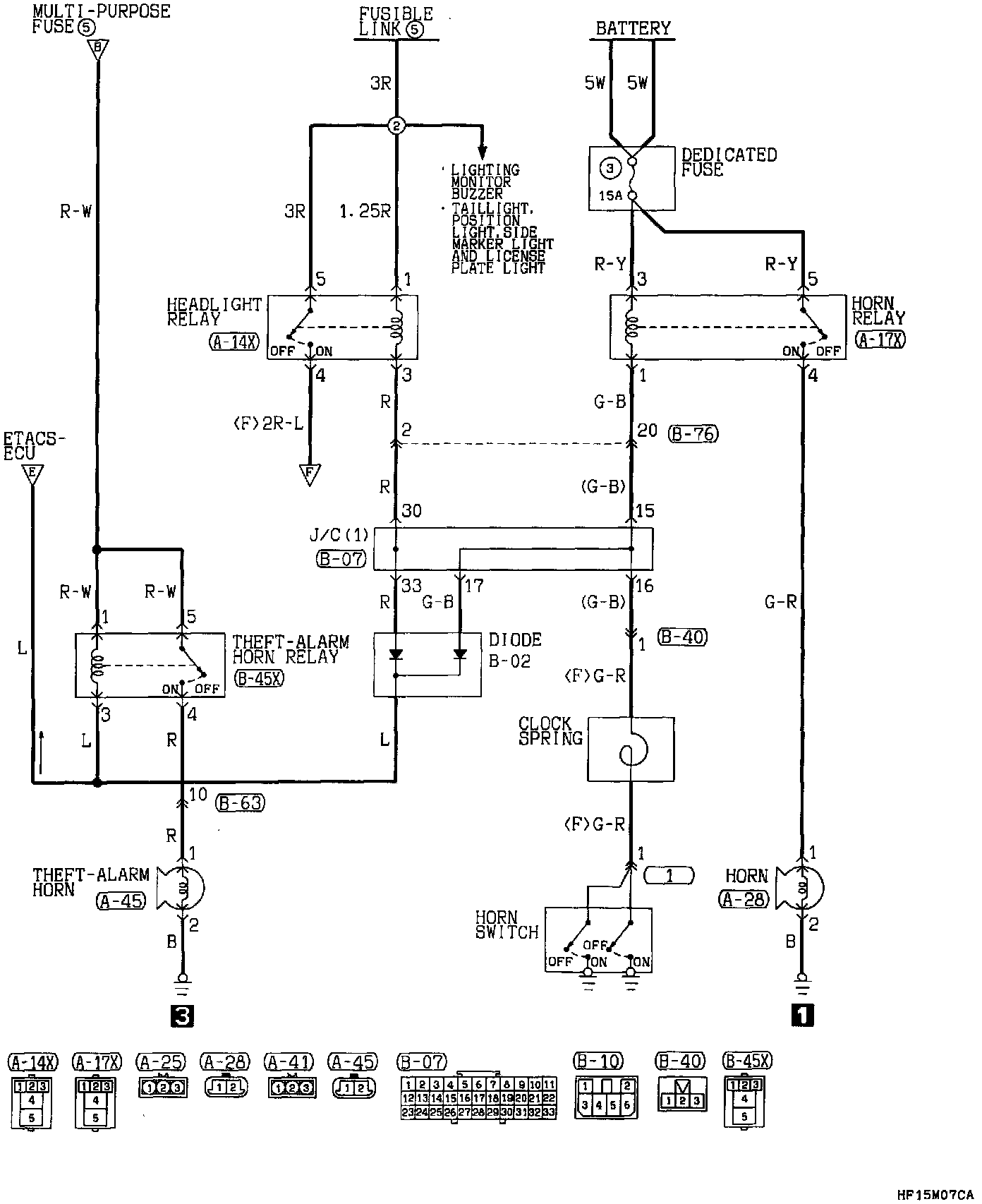

Theft Alarm System Circuit (Part 5 Of 8):

Clock Spring
Dedicated Fuse
Headlight Relay
Horn
Horn Relay
Horn Switch
J/C (1)
Theft-Alarm Horn Relay

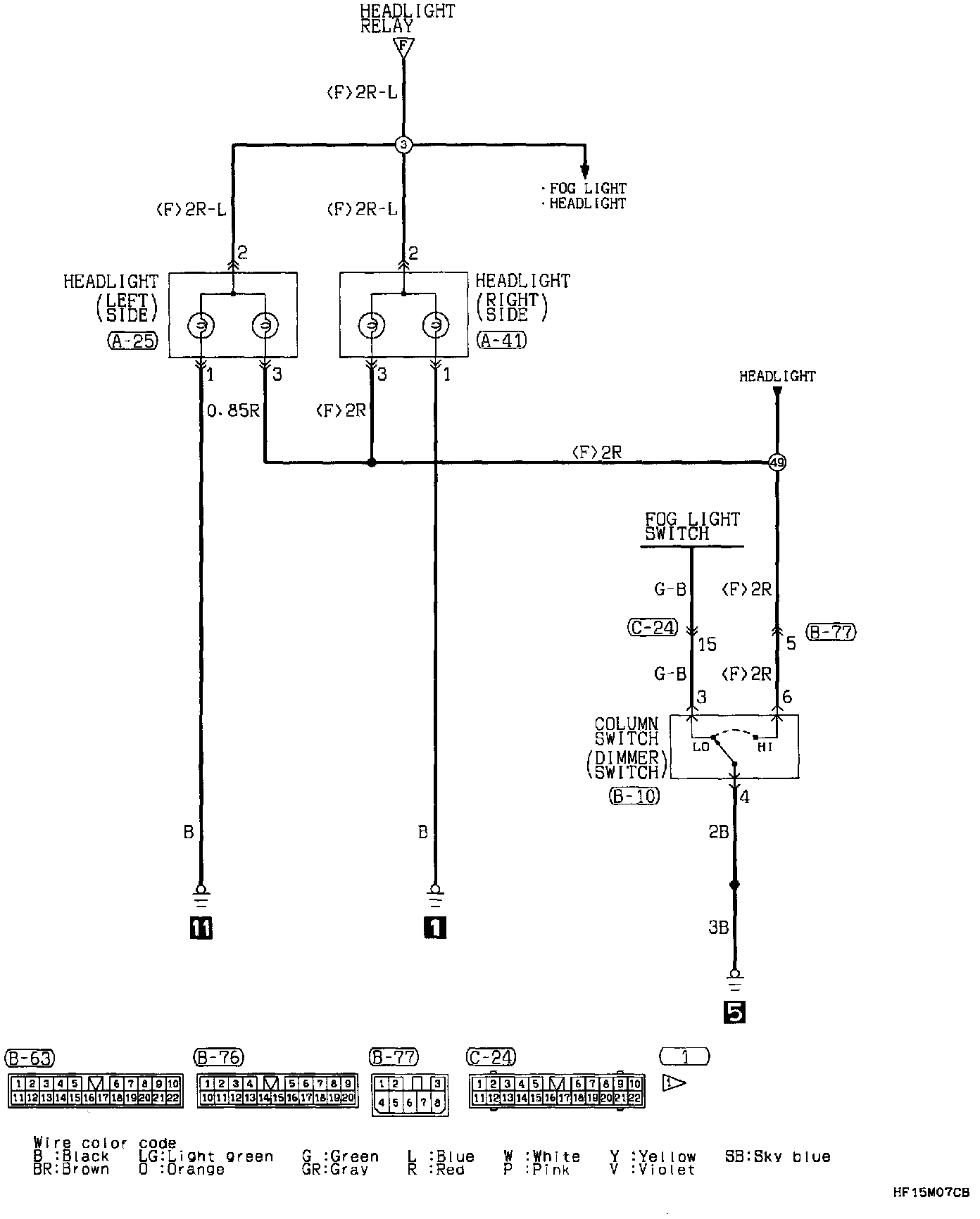

Theft Alarm System Circuit (Part 6 Of 8):

Column Switch (Dimmer Switch)
Headlight (Left and Right Side)

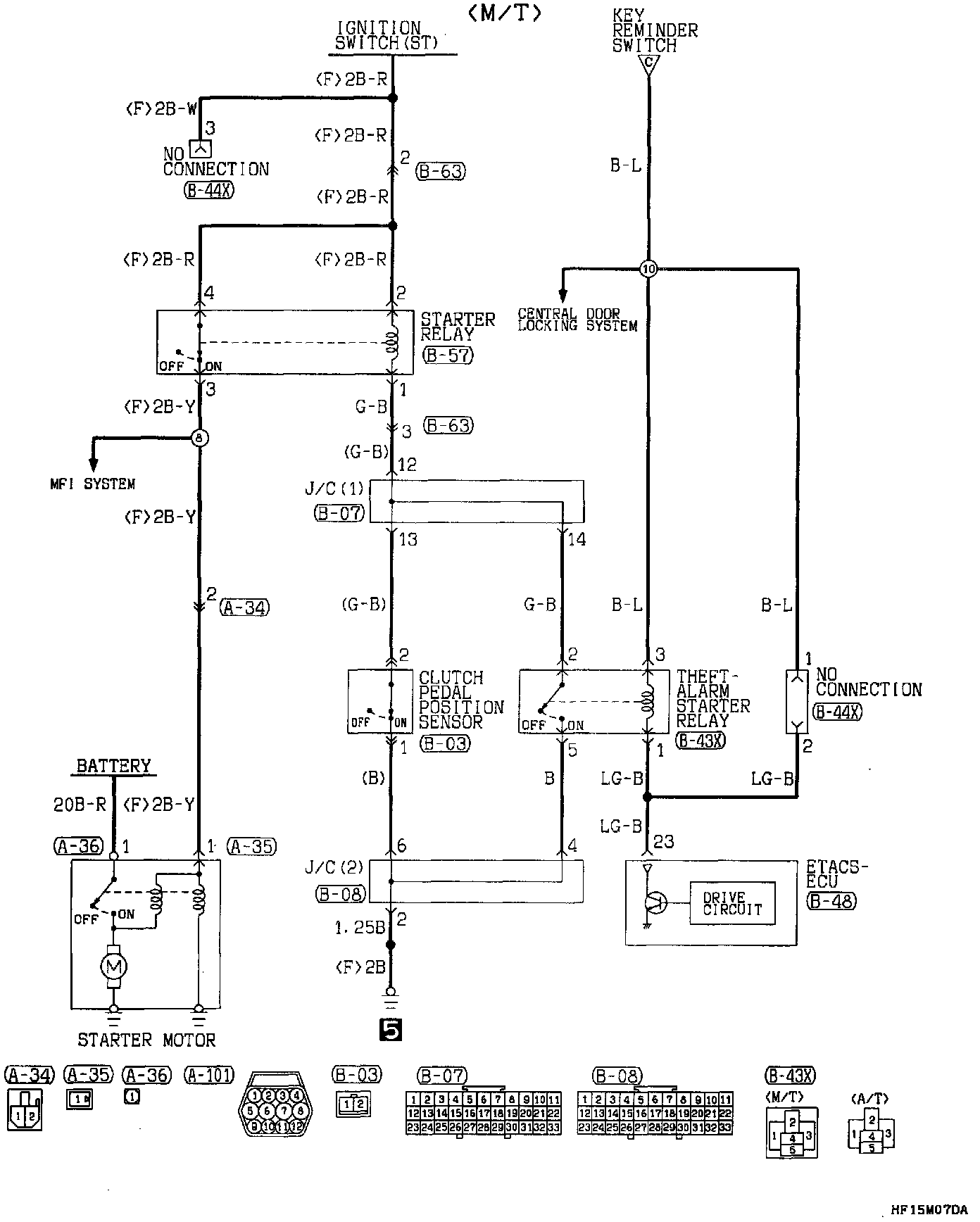

Theft Alarm System Circuit (Part 7 Of 8):

Only for M/T
Clutch Pedal Position Sensor
ETACS-ECU
- Drive Circuit
J/C (1, 2)
Starter Motor
Starter Relay
Theft Alarm Starter Relay

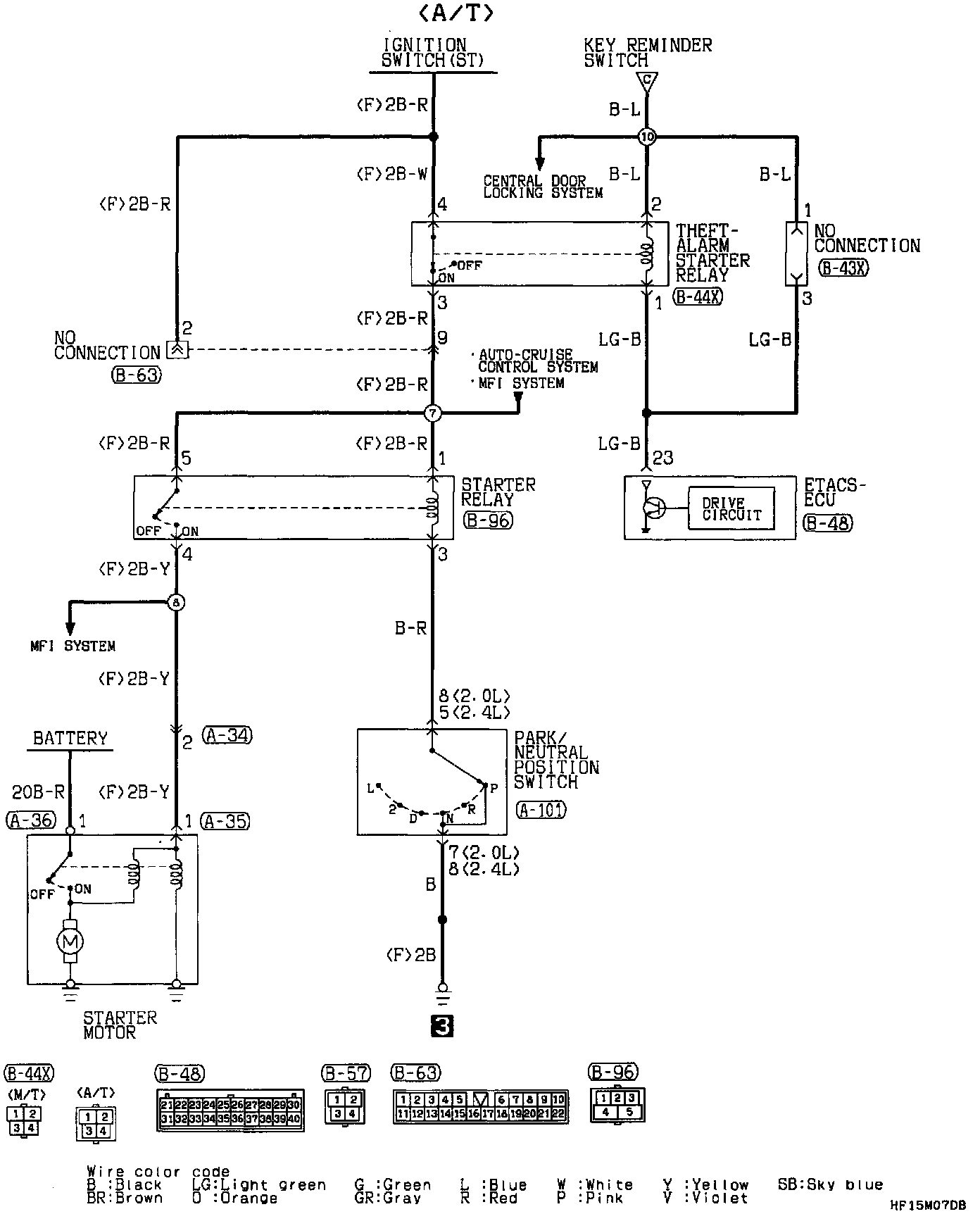

Theft Alarm System Circuit (Part 8 Of 8):

Only for A/T
ETACS-ECU
J/C (4)
Park/Neutral Position Switch
Starter Motor
Starter Relay
Theft-Alarm Starter Relay
