Electric Convertible Top - Supplement Revision

No.: TSB-98-42A-003
DATE: April, 1998
MODEL: 1996-98 Eclipse Spyder

SUBJECT:
ELECTRIC CONVERTIBLE TOP SUPPLEMENT - SERVICE MANUAL REVISION

[TSB Revision TSB-98-42A-003]

PURPOSE
This bulletin contains new disassembly, reassembly, and service information about the 1996-98 Eclipse Spyder electric convertible top. This information was not included in the original service manuals. These new pages should be used as a service manual supplement placed at the end of the 42 Body section. These pages will be included in the 1999 service manual.

AFFECTED VEHICLES
1996-98 Eclipse Spyder

AFFECTED SERVICE MANUAL
1996 Eclipse Service Manual, Volume 3, Page 42-39
1997 Eclipse/Eclipse Spyder Service Manual, Volume 1, Page 42-106
1998 Eclipse/Eclipse Spyder Service Manual, Volume 2, Page 42-110

SERVICE MANUAL REVISION
1996 Eclipse Service Manual, Volume 3, Page 42-39
1997 Eclipse/Eclipse Spyder Service Manual, Volume 1, Page 42-106
1998 Eclipse/Eclipse Spyder Service Manual, Volume 2, Page 42-110

Add the following new pages to the end of section 42 Body in each of the affected service manuals and write this TSB number in the box on the bottom of the indicated service manual pages:

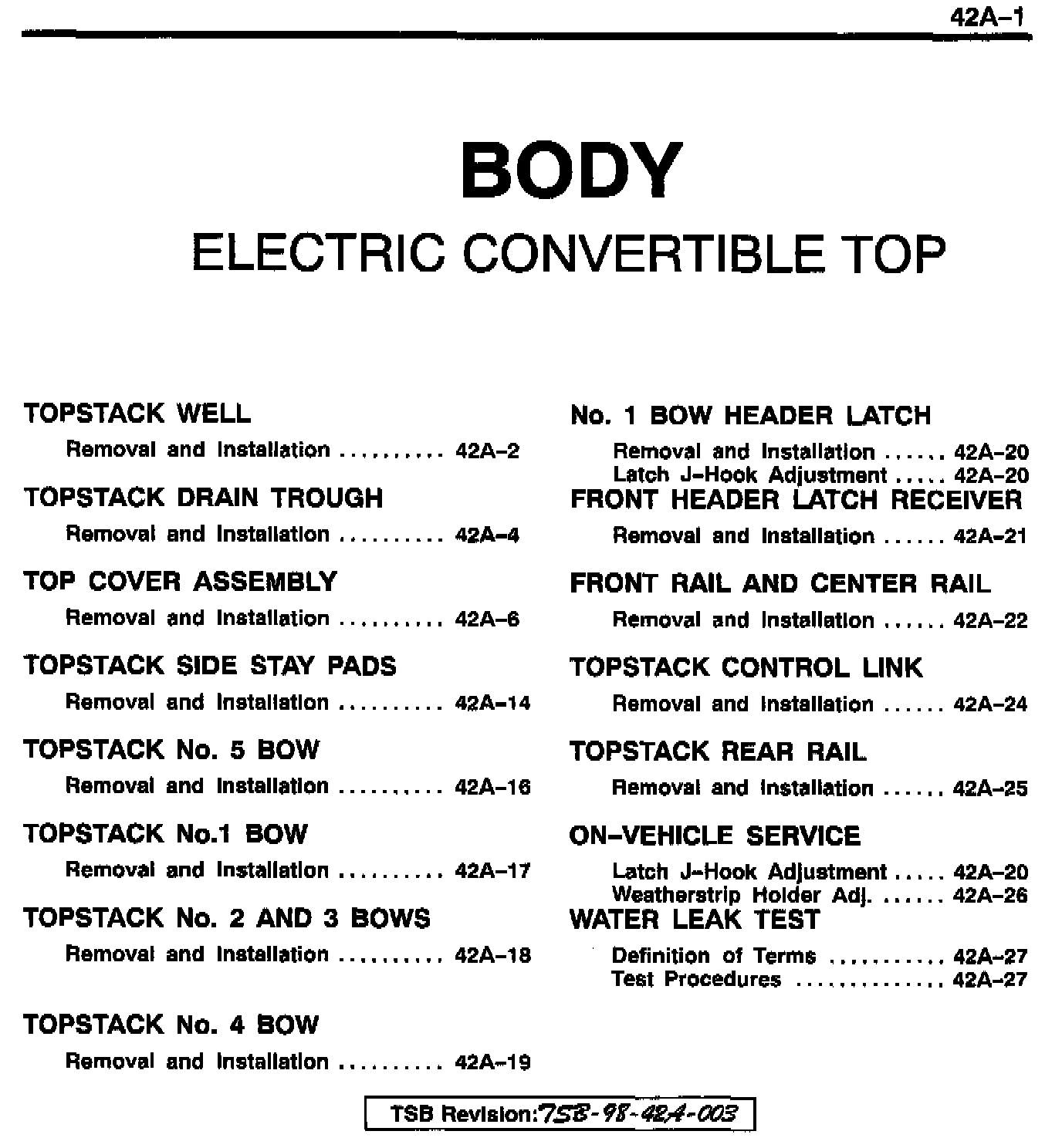

42A-1

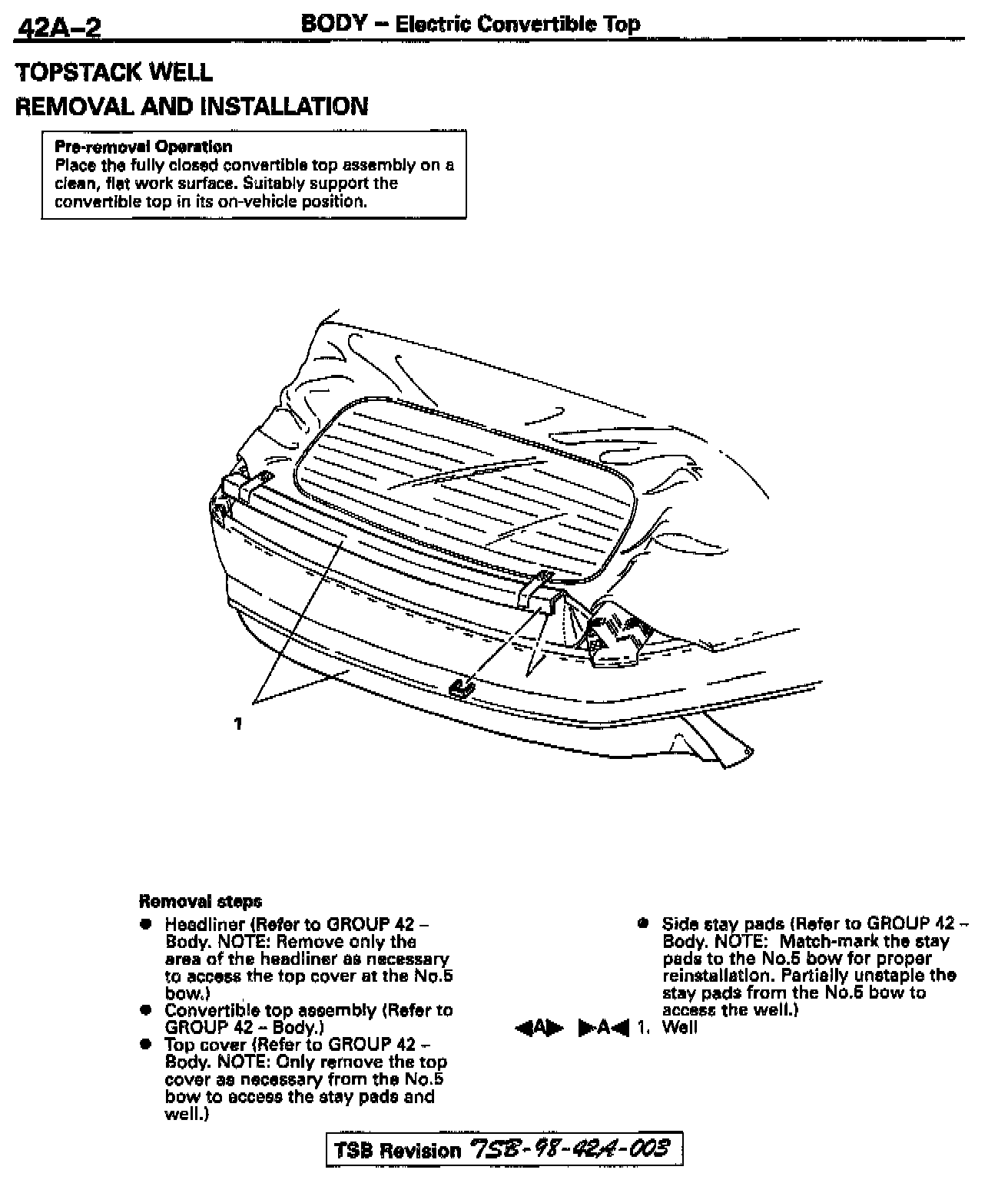

42A-2

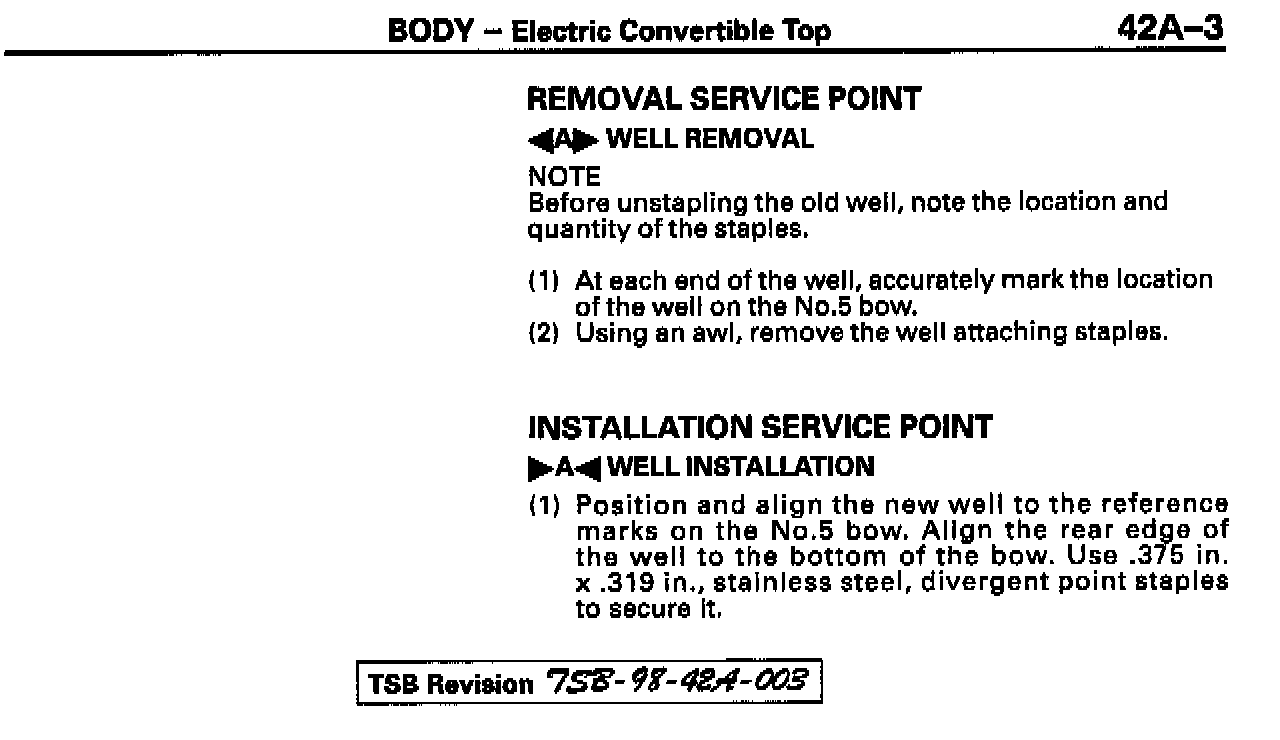

42A-3

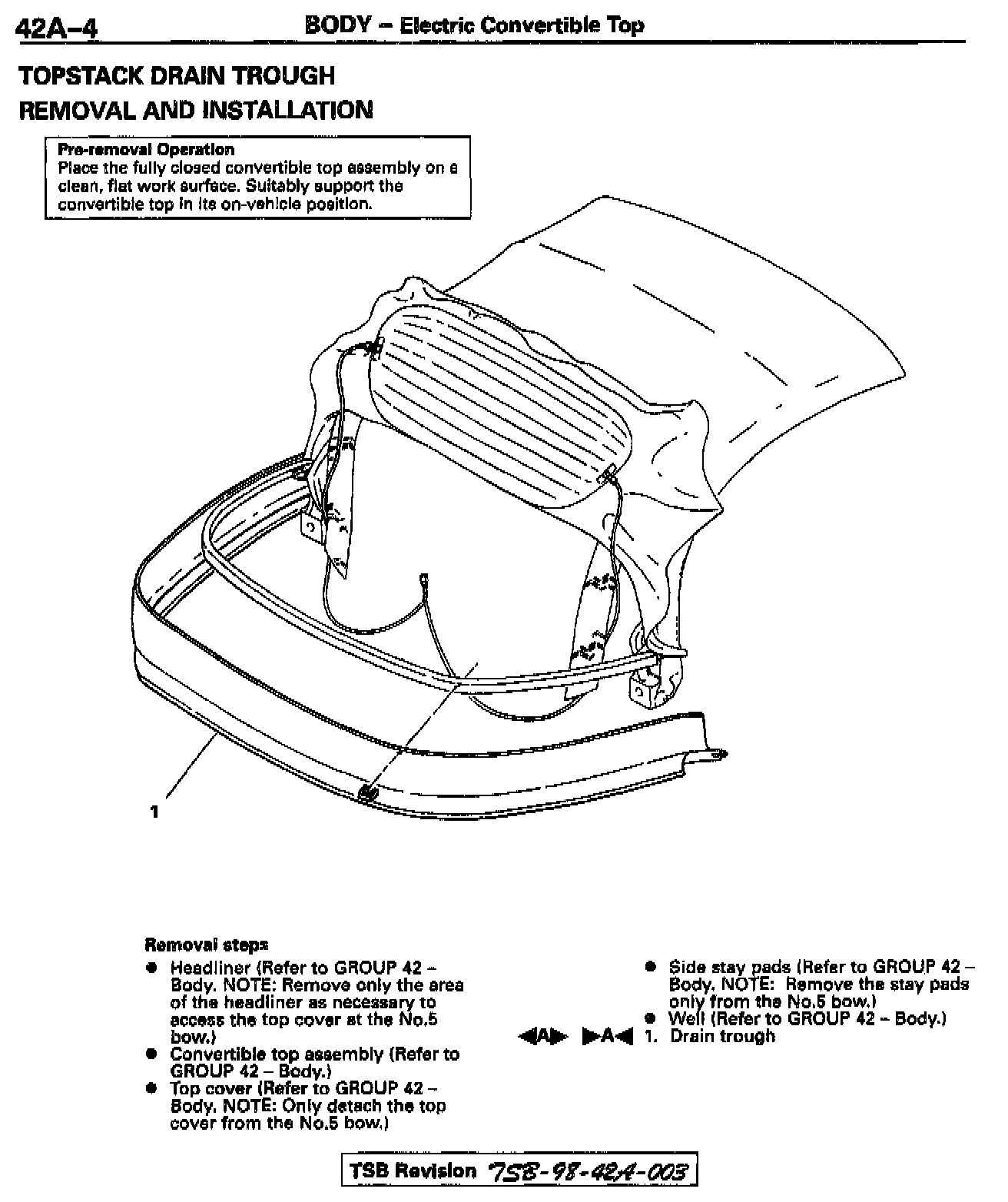

42A-4

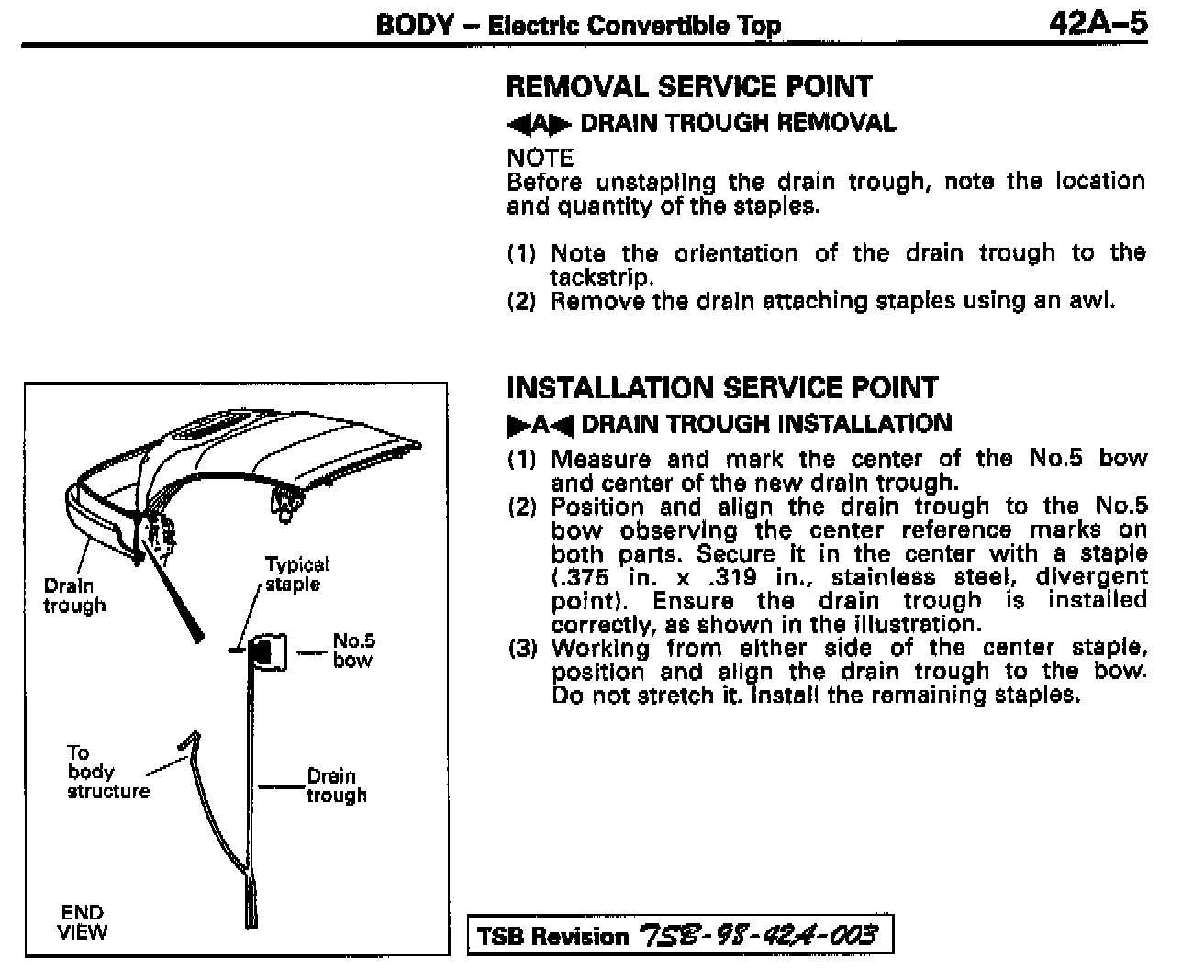

42A-5

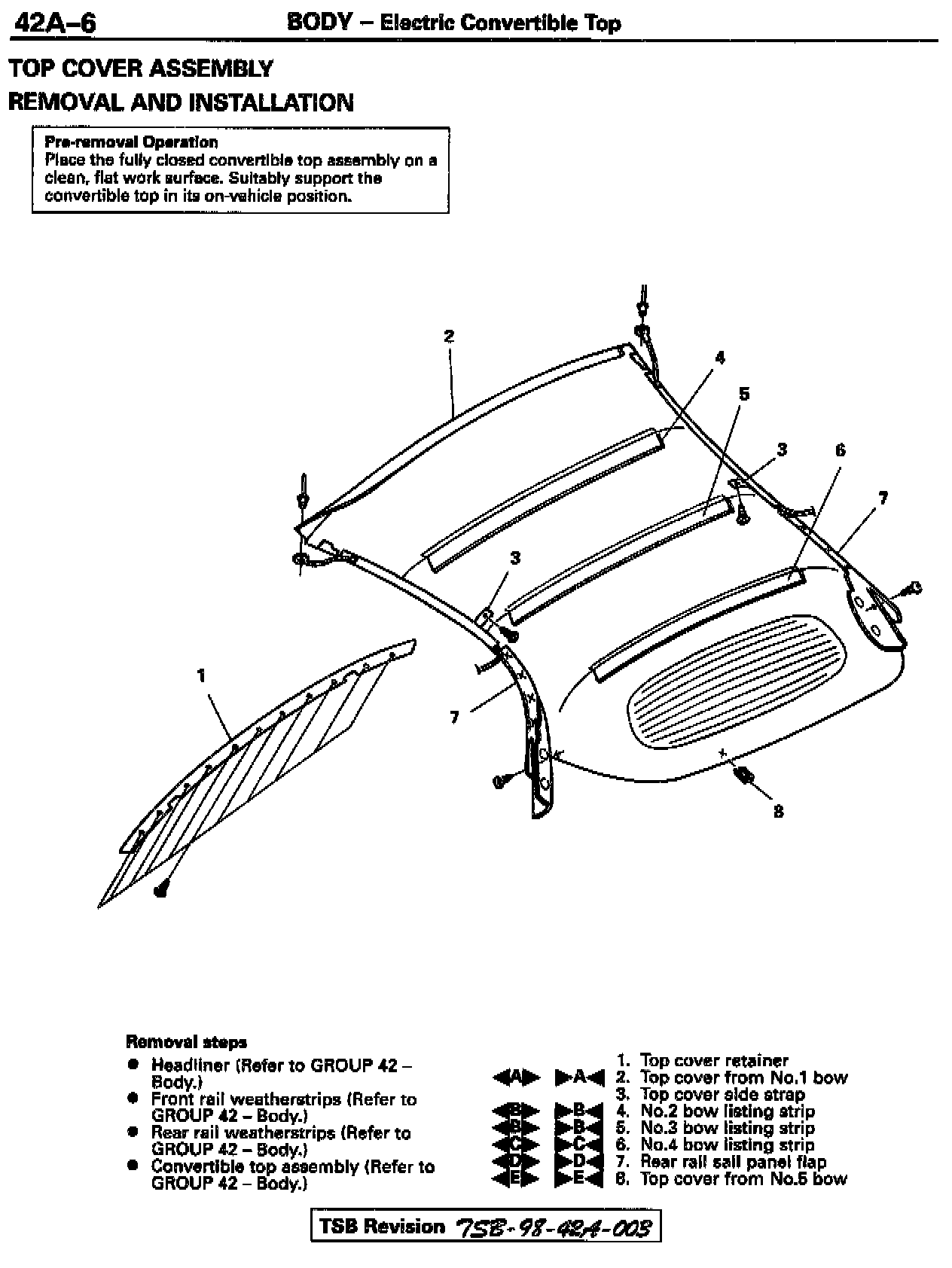

42A-6





42A-7

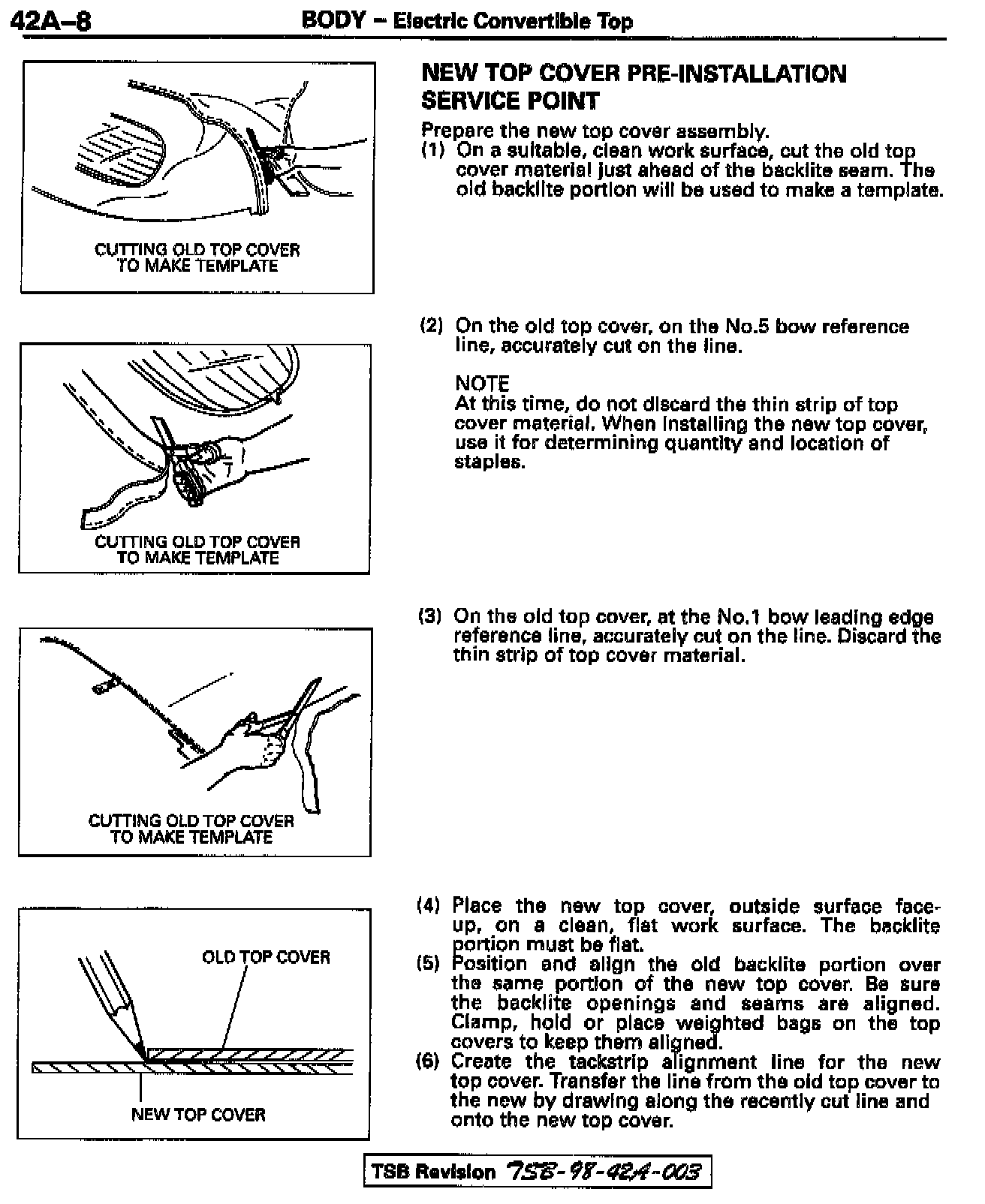

42A-8

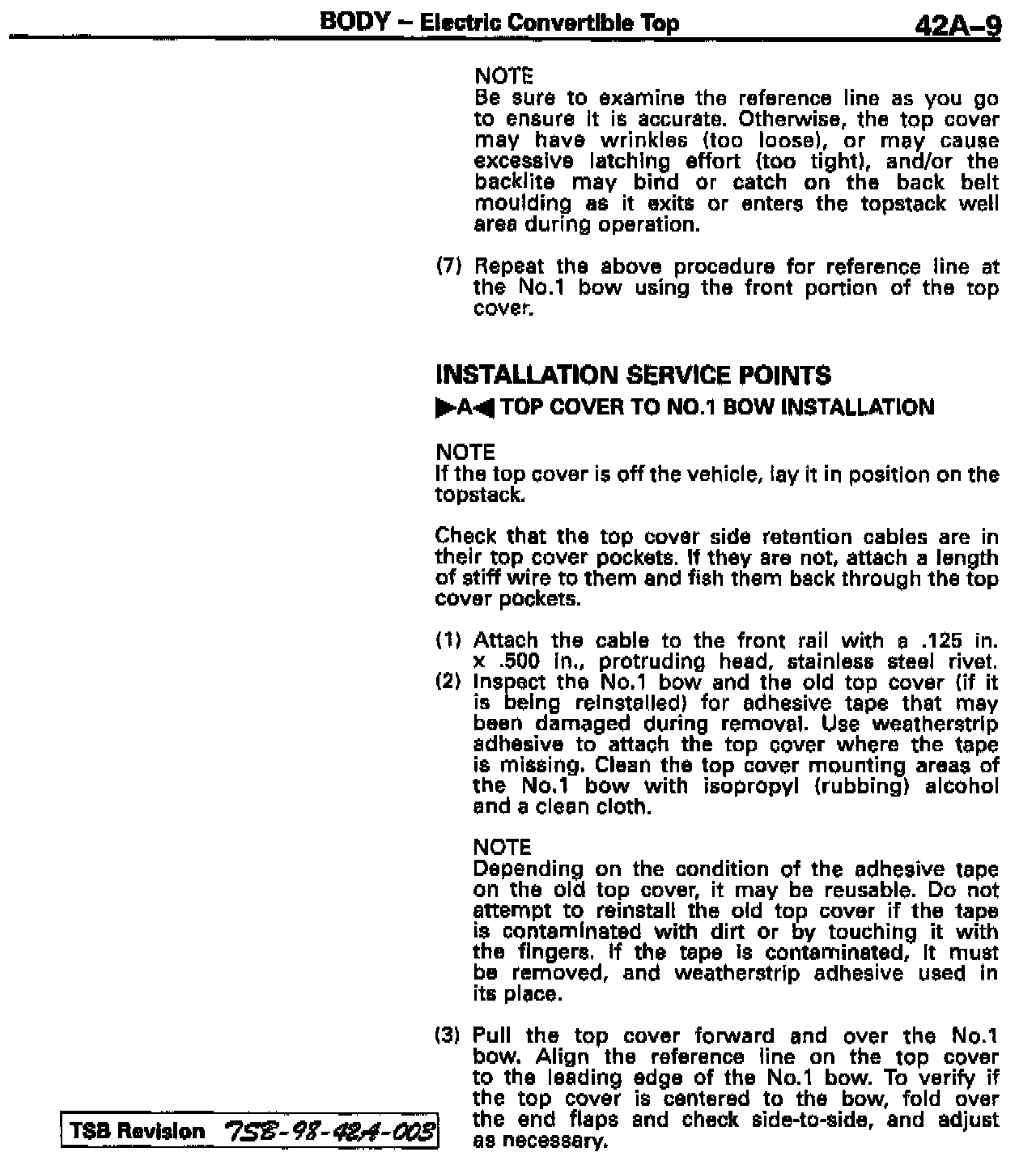

42A-9

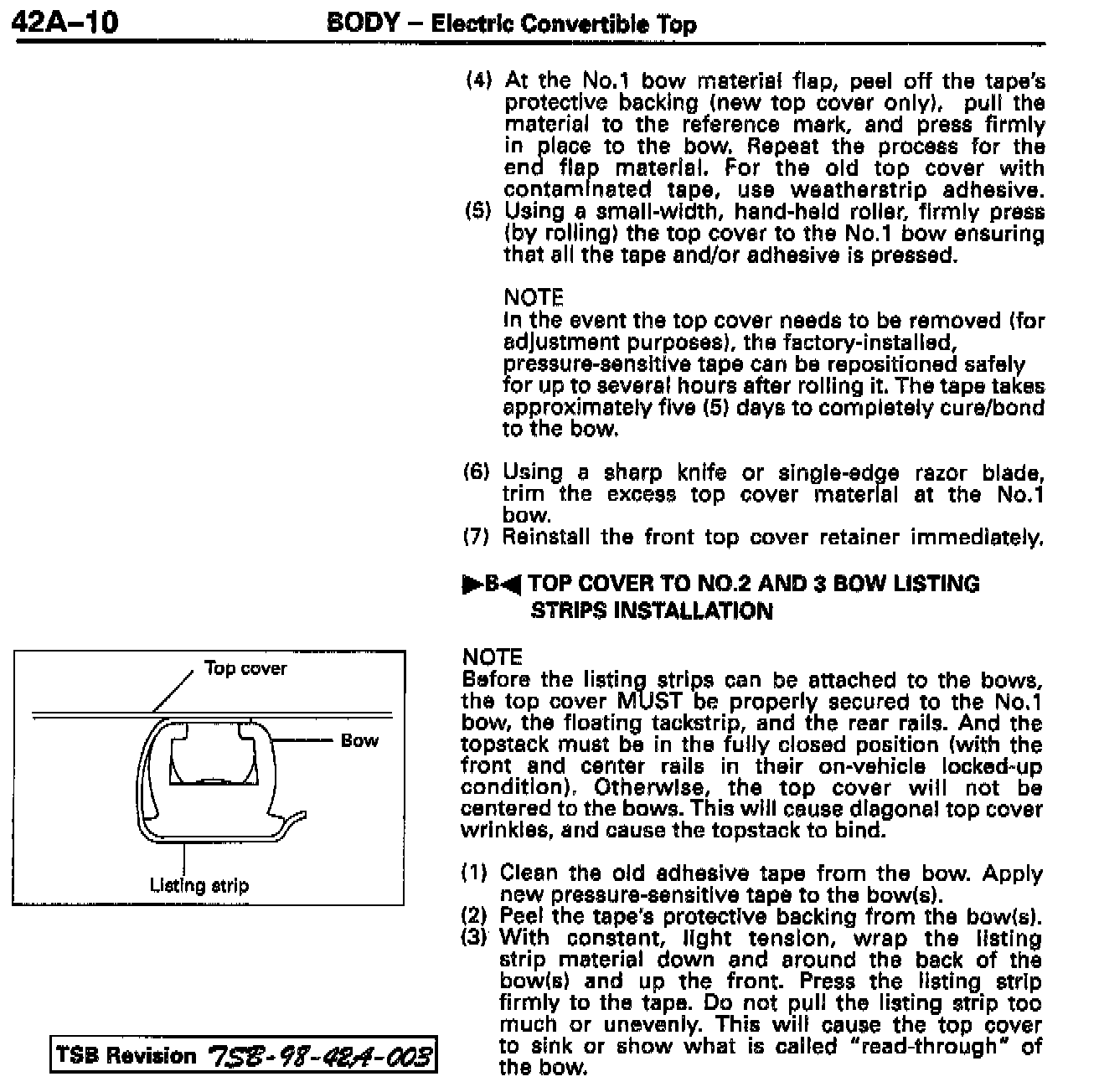

42A-10

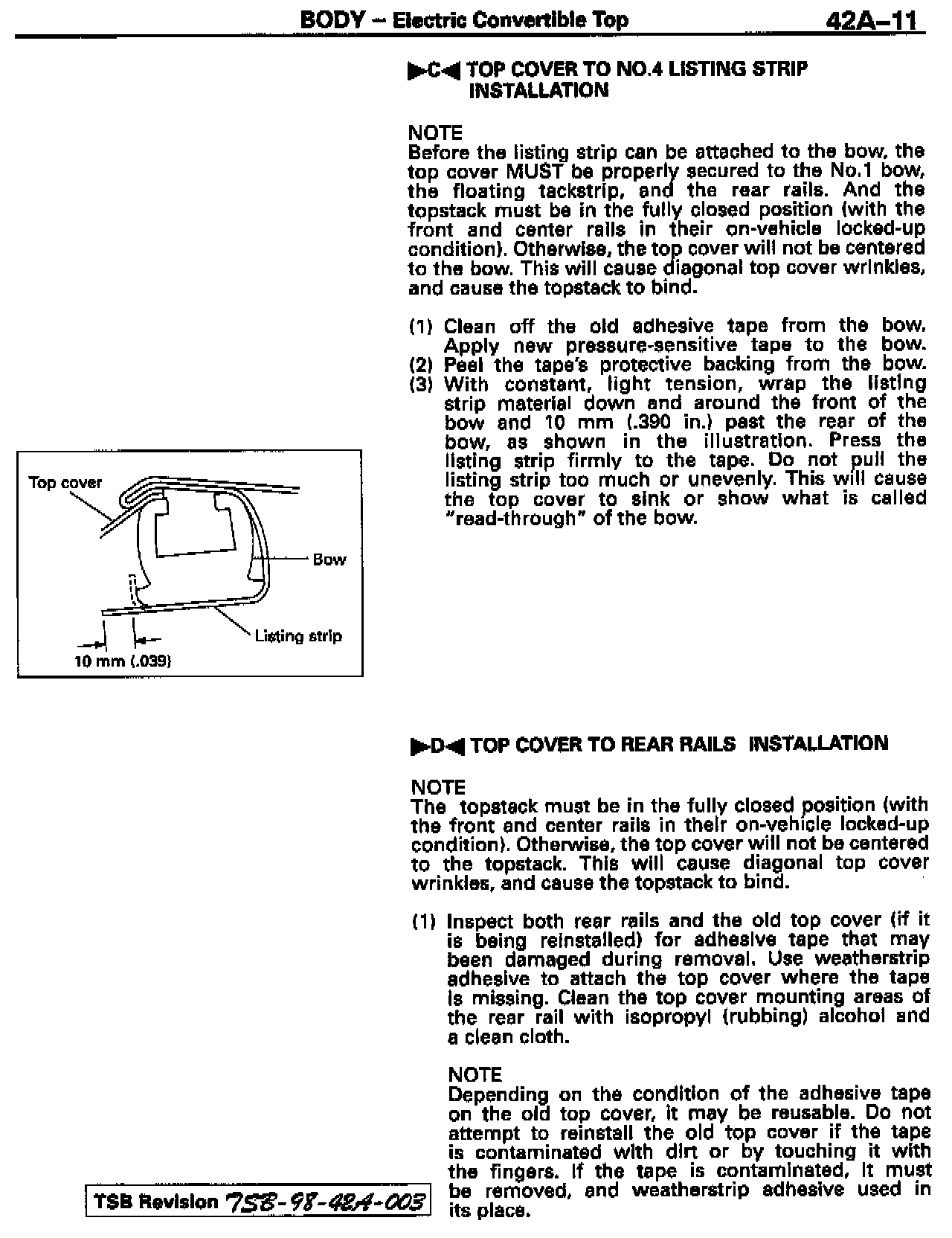

42A-11

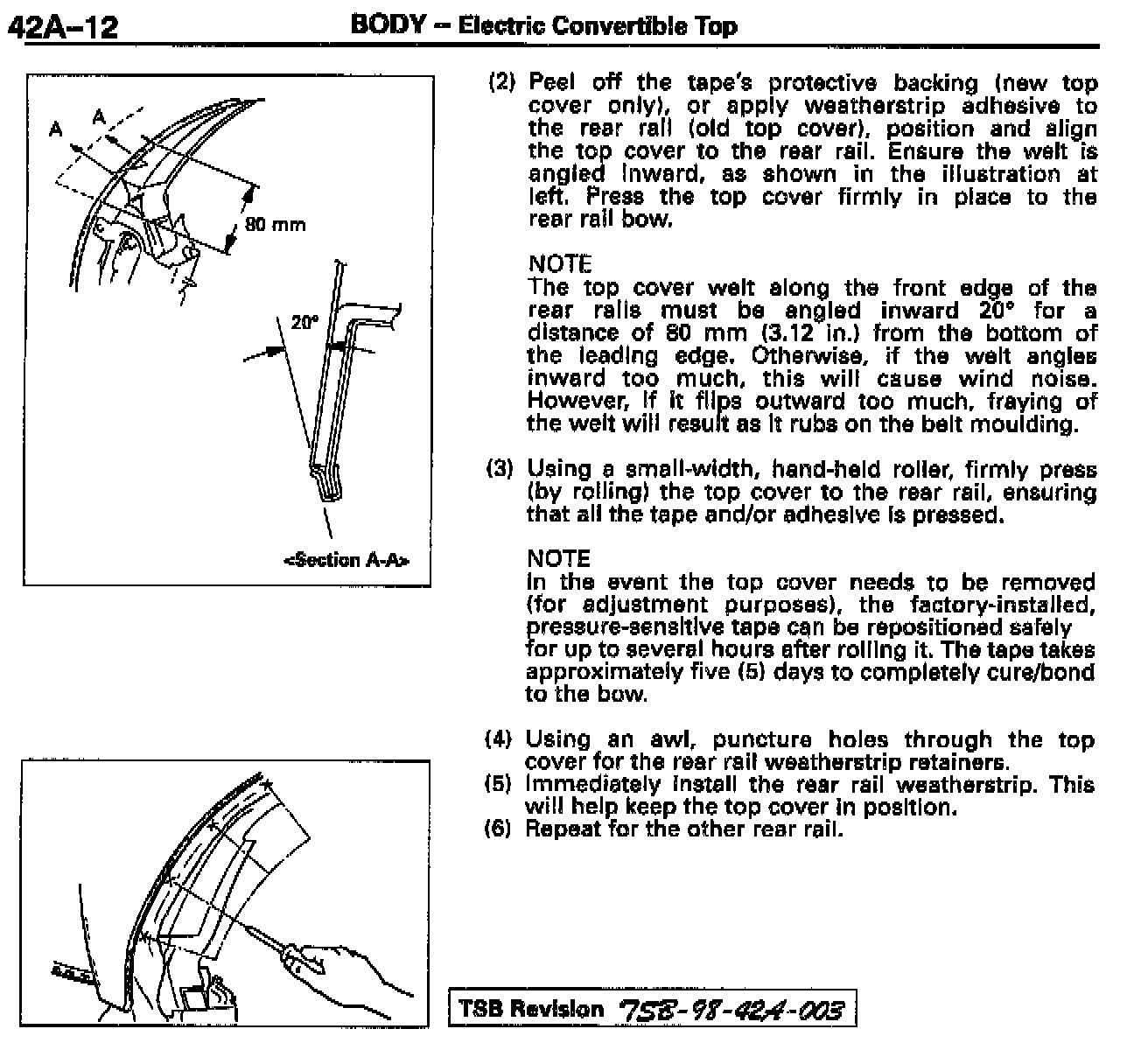

42A-12

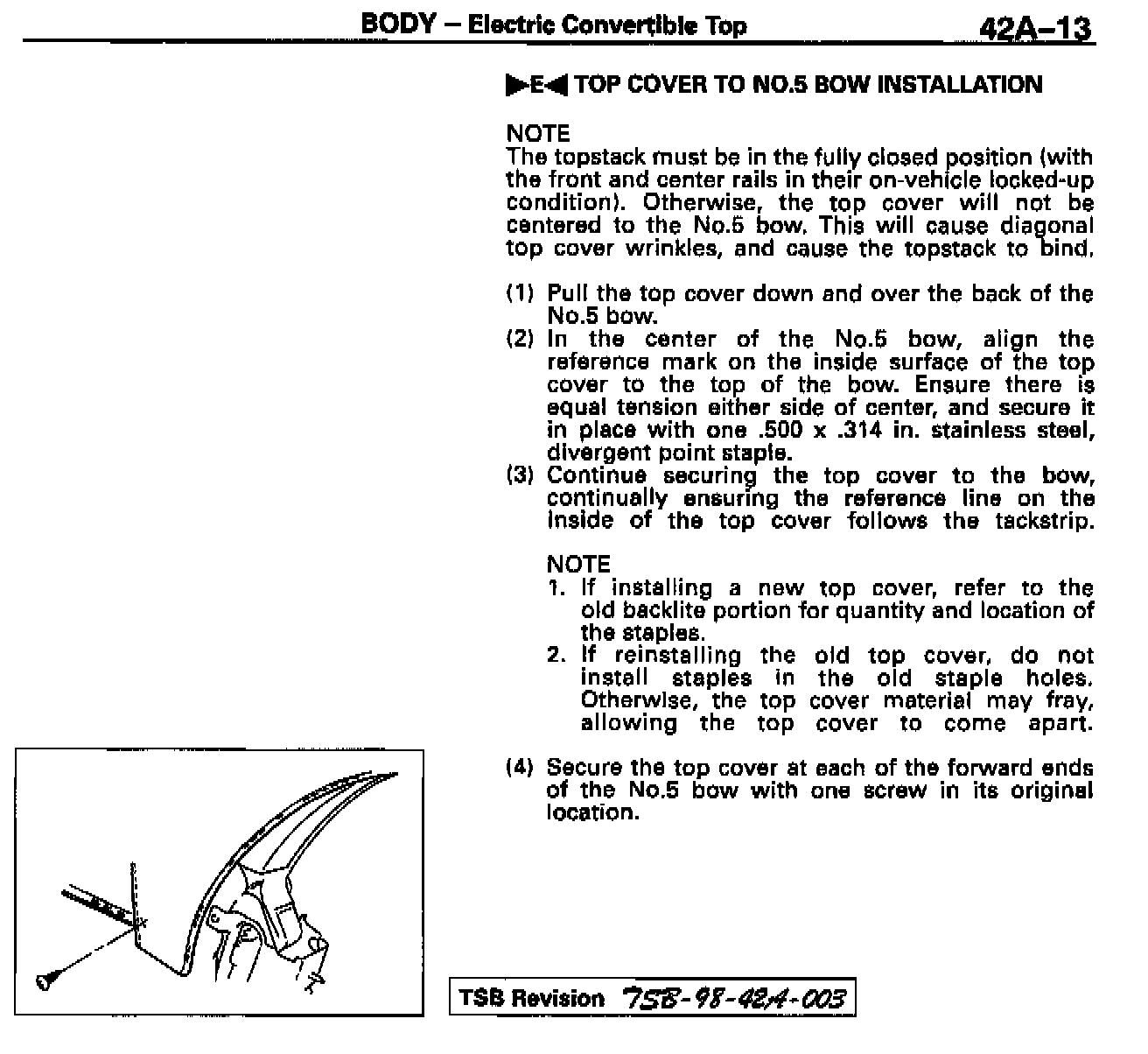

42A-13





42A-14





42A-15

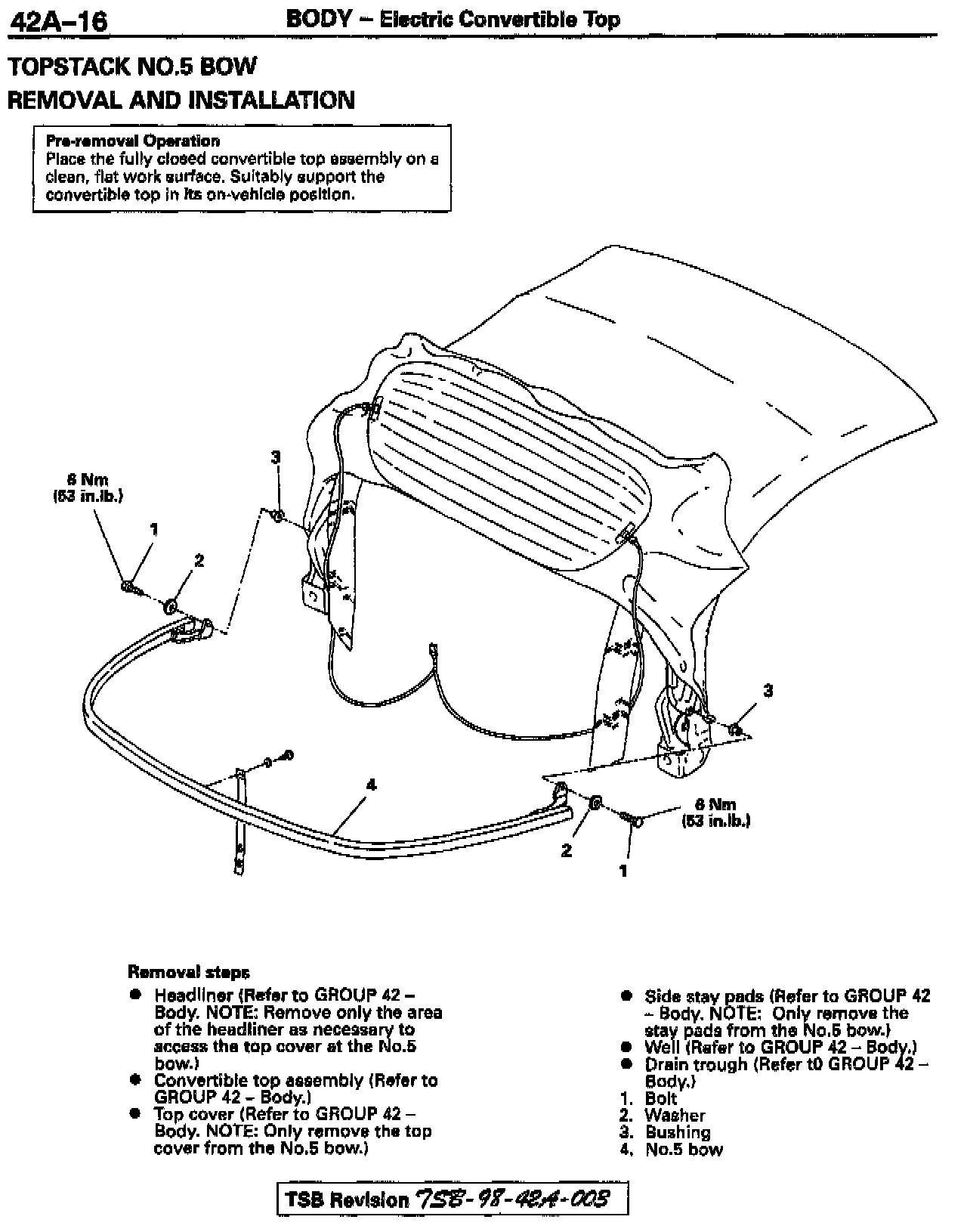

42A-16

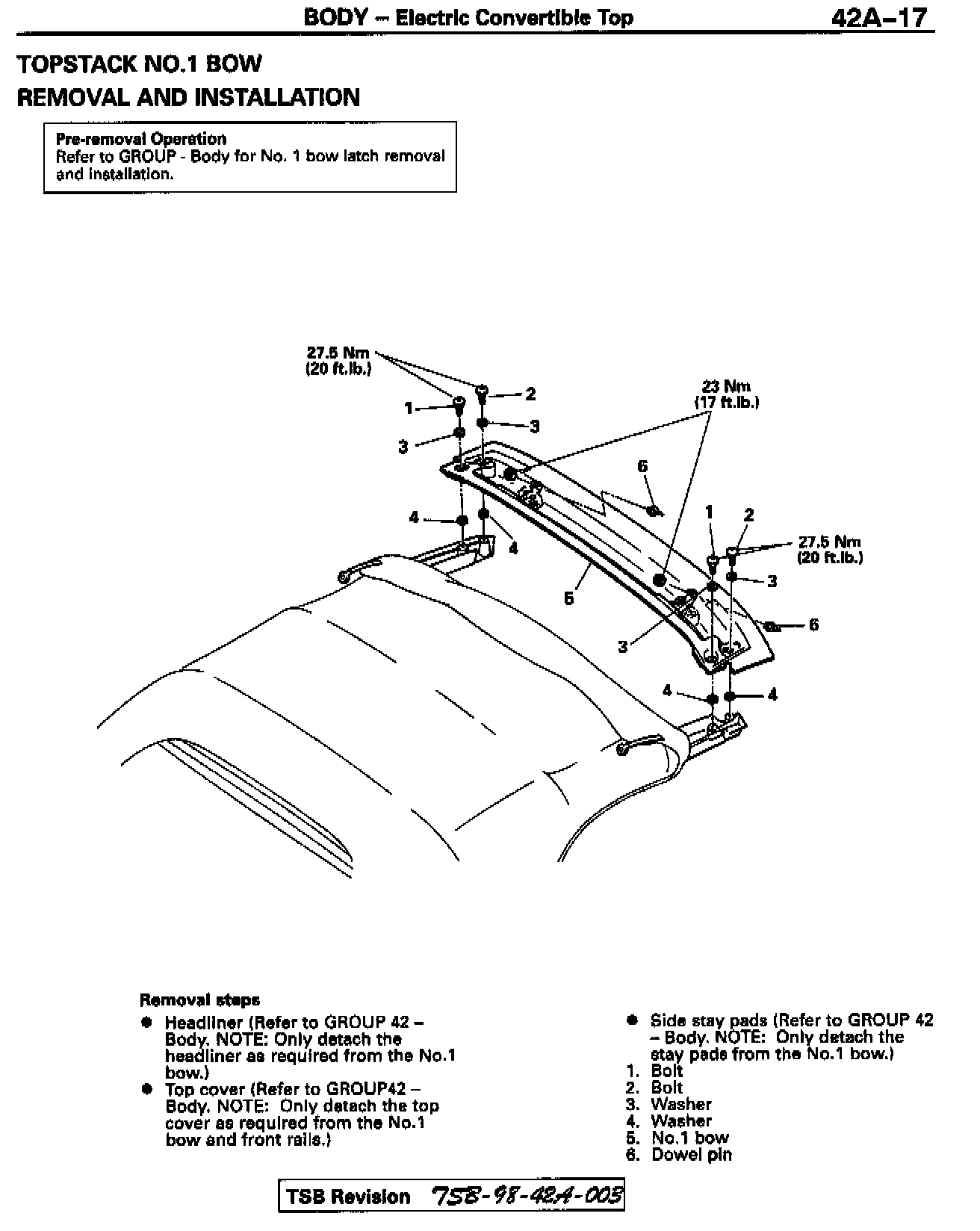

42A-17

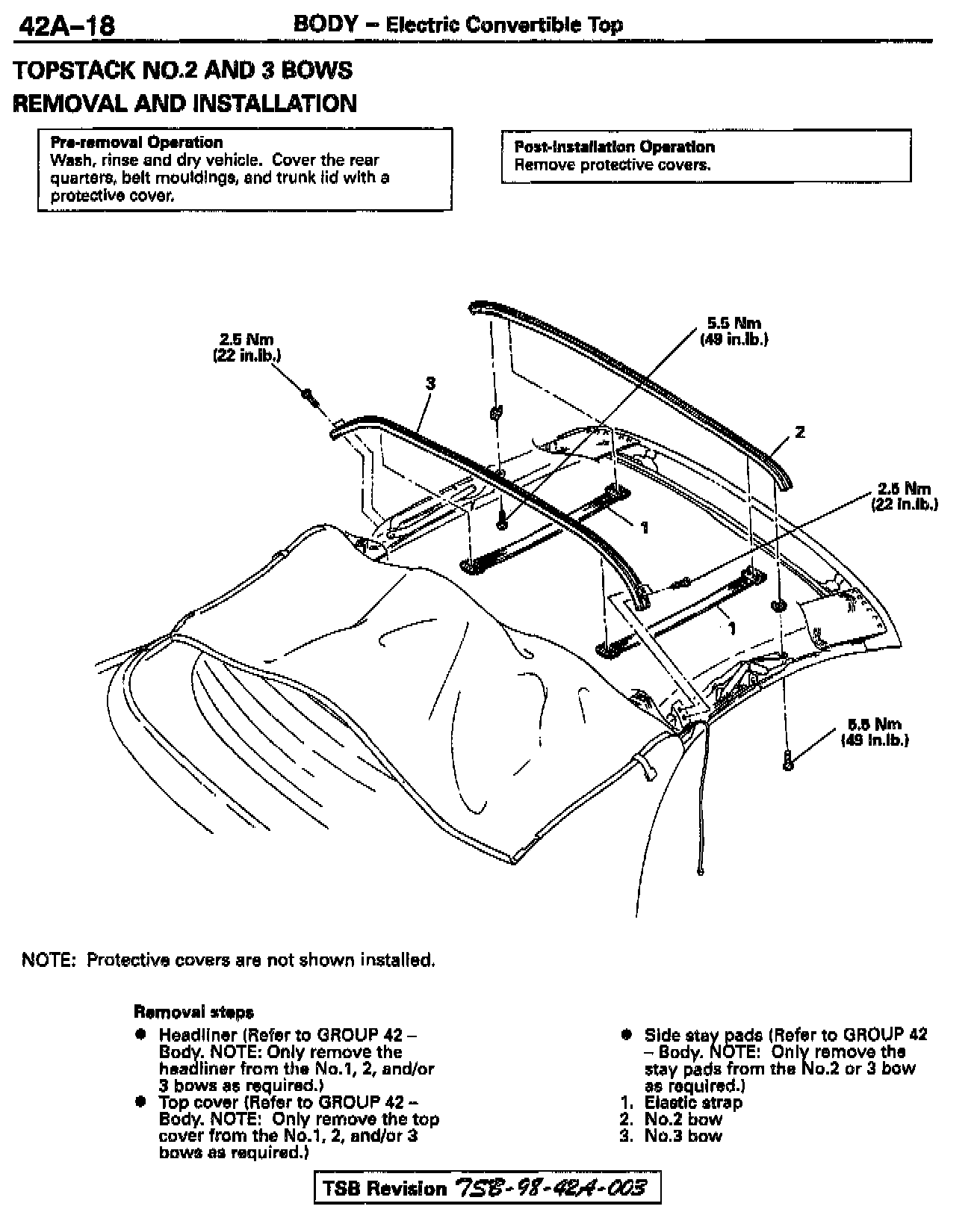

42A-18

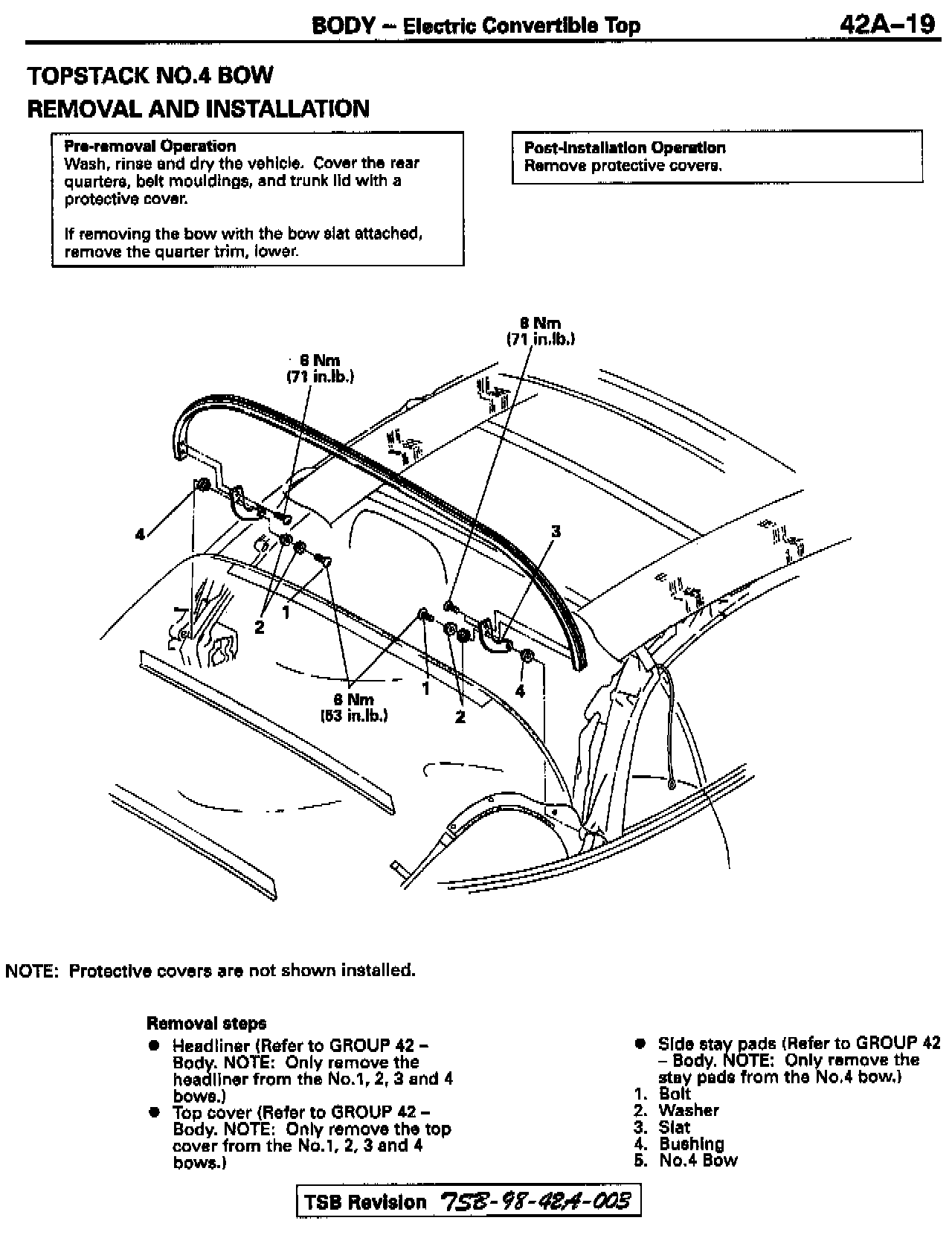

42A-19

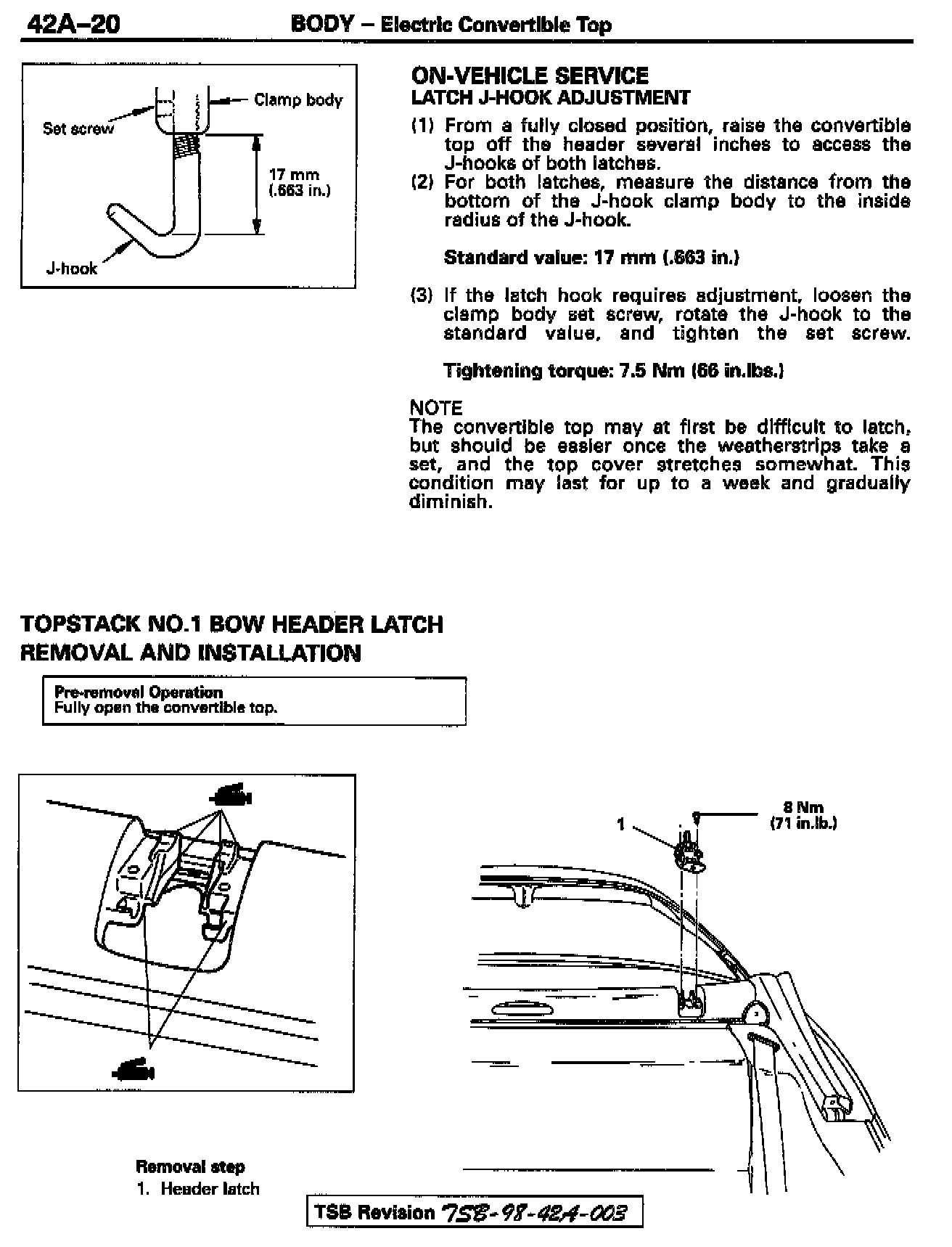

42A-20

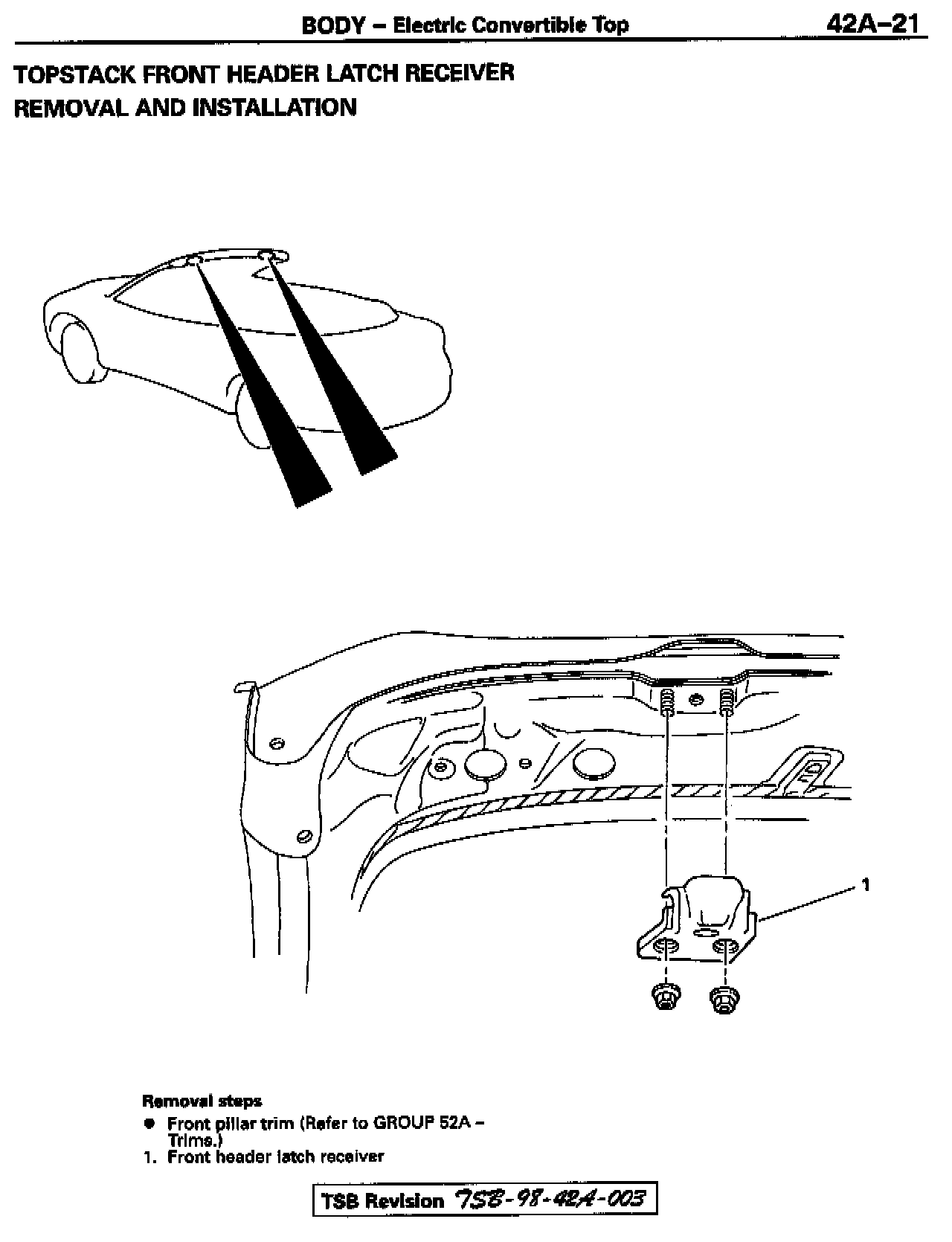

42A-21





42A-22

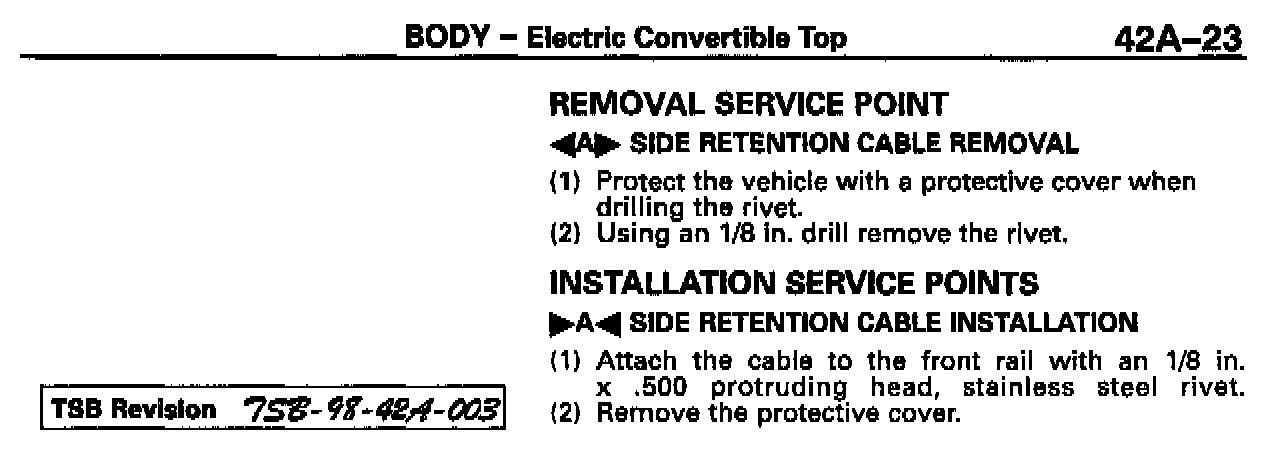

42A-23

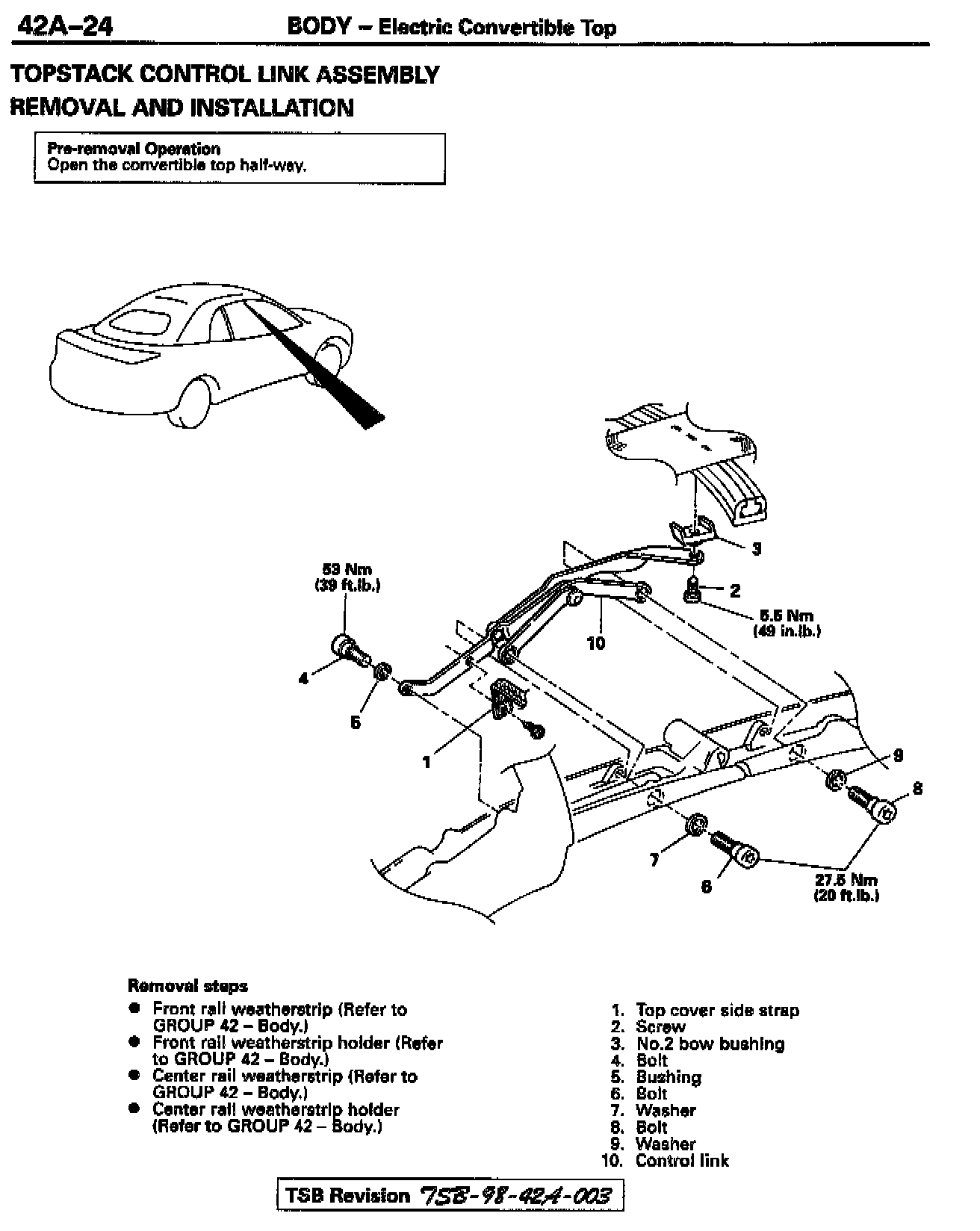

42A-24

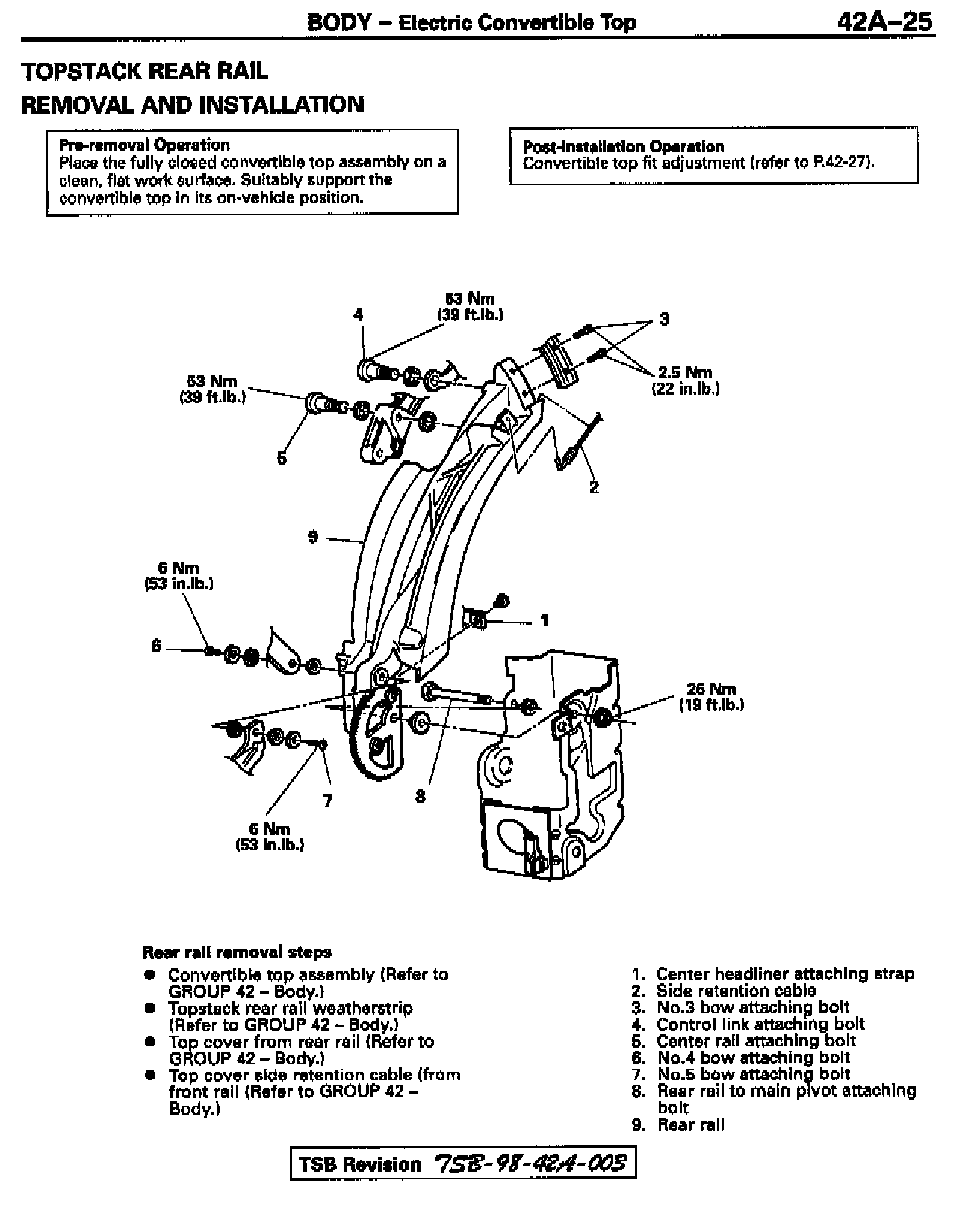

42A-25

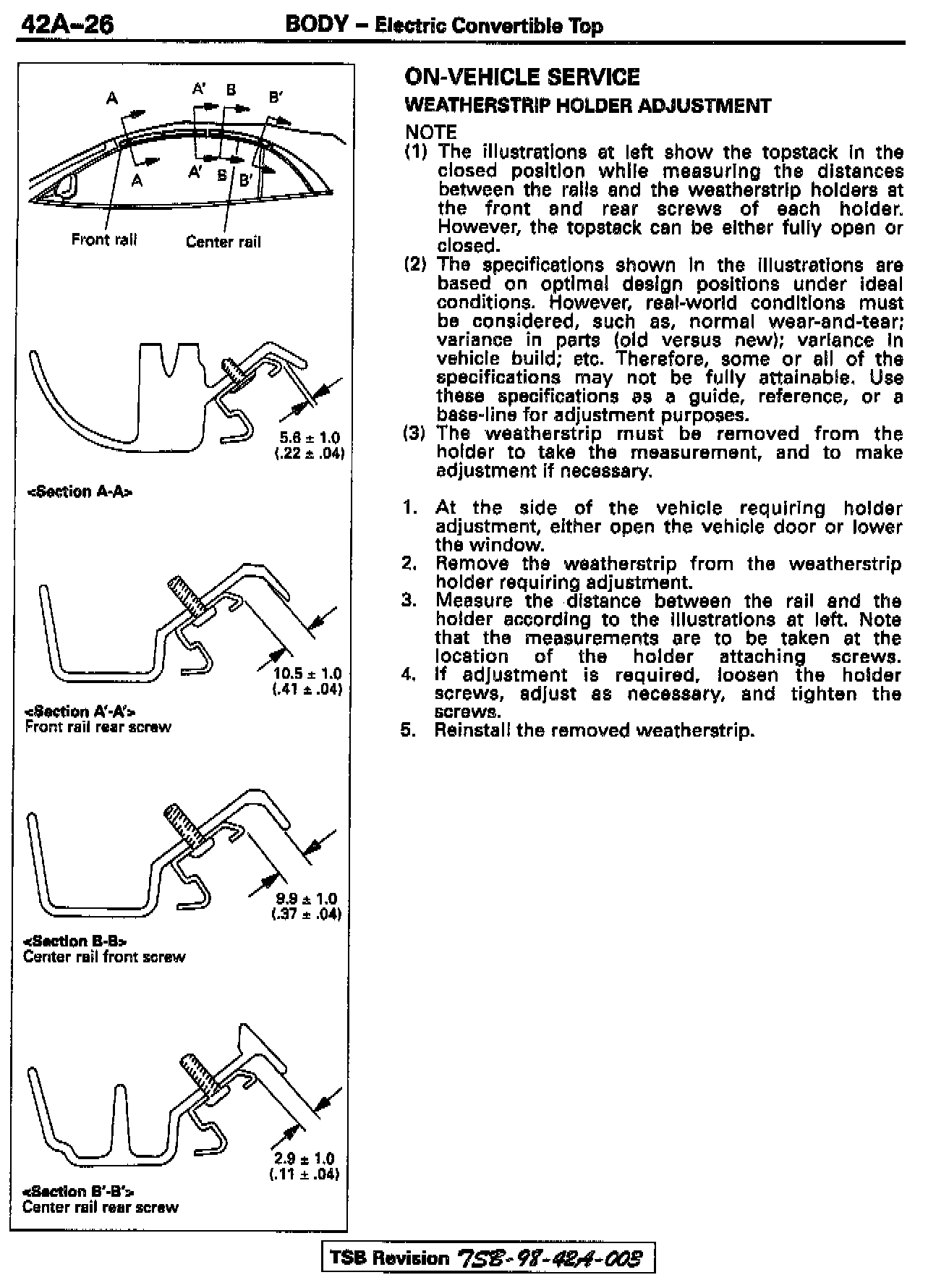

42A-26

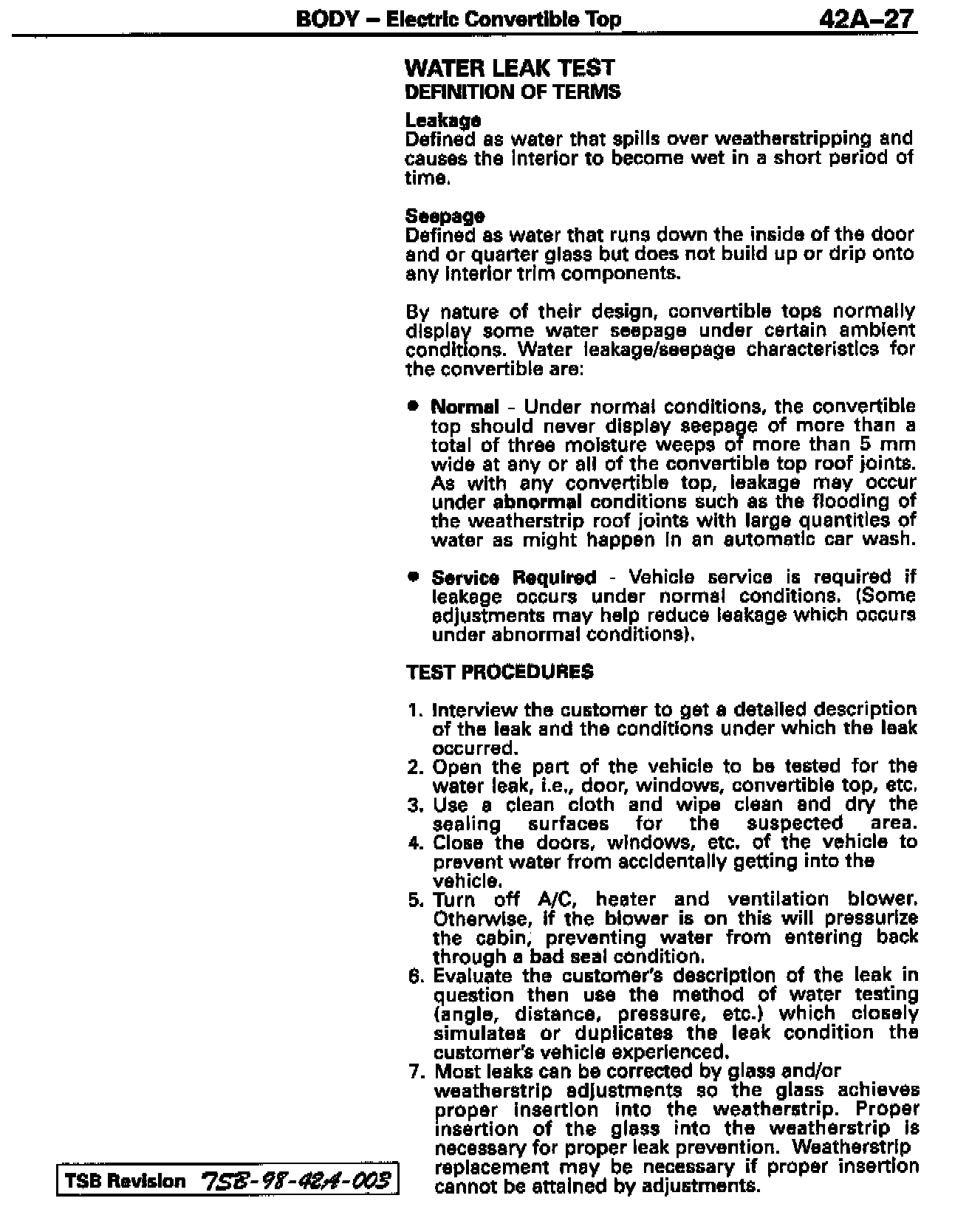

42A-27
