Valve Body: Service and Repair

Part 1 Of 3:

Part 2 Of 3:

Part 3 Of 3:

DISASSEMBLY
Follow disassembly steps outlined in illustration.

ASSEMBLY
Assembly in reverse order as Disassembly.

NOTE: Assembly service points as follows:

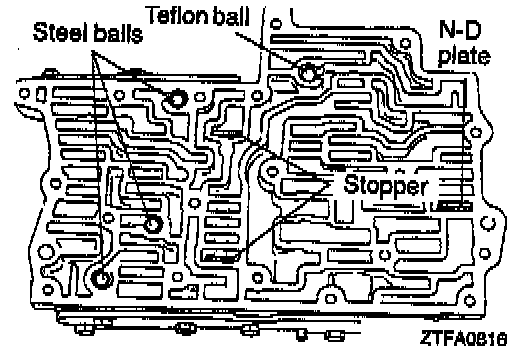

A. Stopper plate / N-D plate / teflon ball / steel ball location. (18, 19, 20, 34 & 43)
Install the stopper plates, N-D plate, Teflon ball, and steel balls into the upper valve; body as shown.

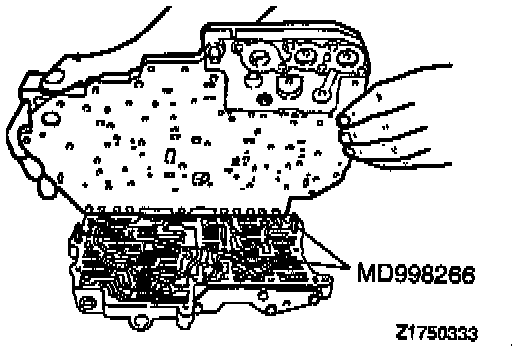

B. Upper valve body sub assembly installation. (17)
Mount the special tools, and secure the upper separating plate and intermediate plate with the eight mounting bolts. Then, demount the special tools.

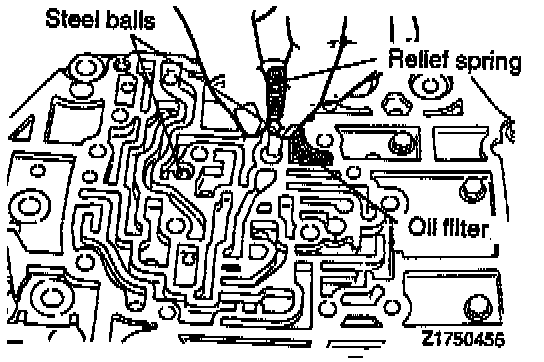

C. Oil filter / steel ball / relief spring installation. (14, 15 & 16)
D. Lower valve body sub assembly installation. (10)





1. Mount the special tools to the intermediate plate.





2. Install the separating plate.





3. Secure the lower valve body with mounting bolts and then remove the special tool.

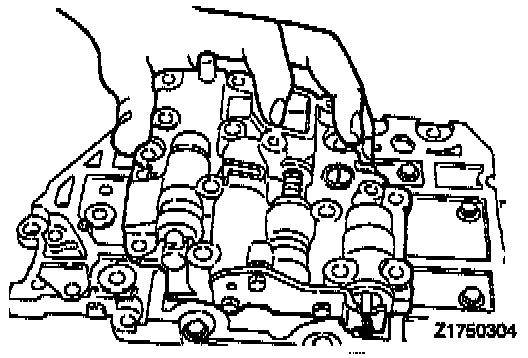

E. Solenoid valve assembly installation. (2, 3, 4 & 5)
Install each solenoid valve in the position shown in the figure.
Solenoid valve:
Shift Control Solenoid Valve "A" (SCSV-A):
(Wire color) Orange.
Shift Control Solenoid Valve "B" (SCSV-B):
(Wire color) Yellow.
Torque Converter Clutch (TCC) solenoid:
(Wire color) Red/Black.
Pressure Control Solenoid Valve (PCSV):
(Wire color) Blue.
