F4AC1 4-SPD A/T

F4AC1 4-spd A/T, Gear Ratios & Upshift & Downshift Increase Chart:

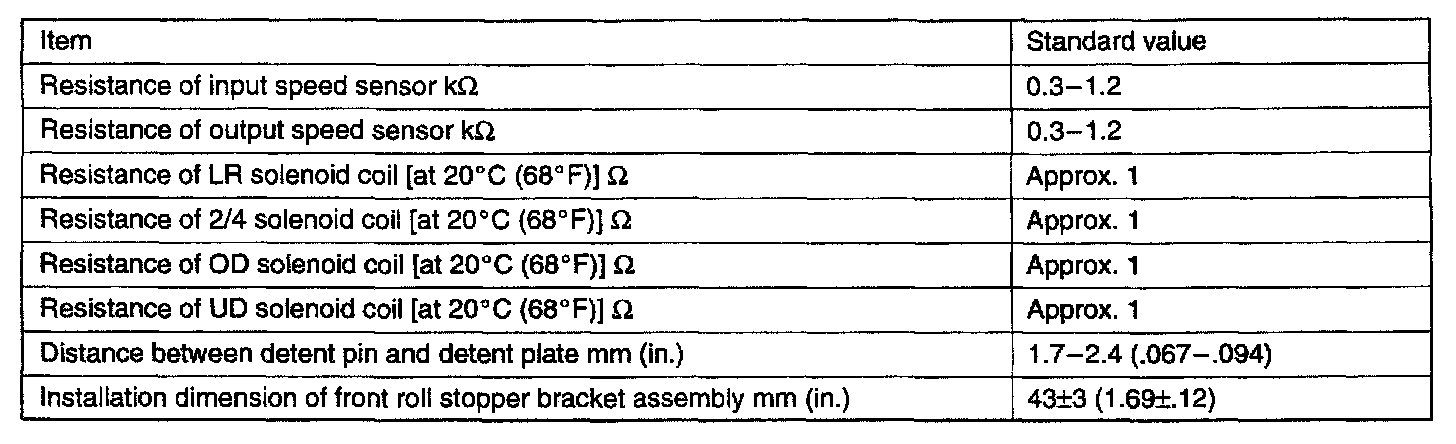

F4AC1 4-spd A/T, Standard Values:

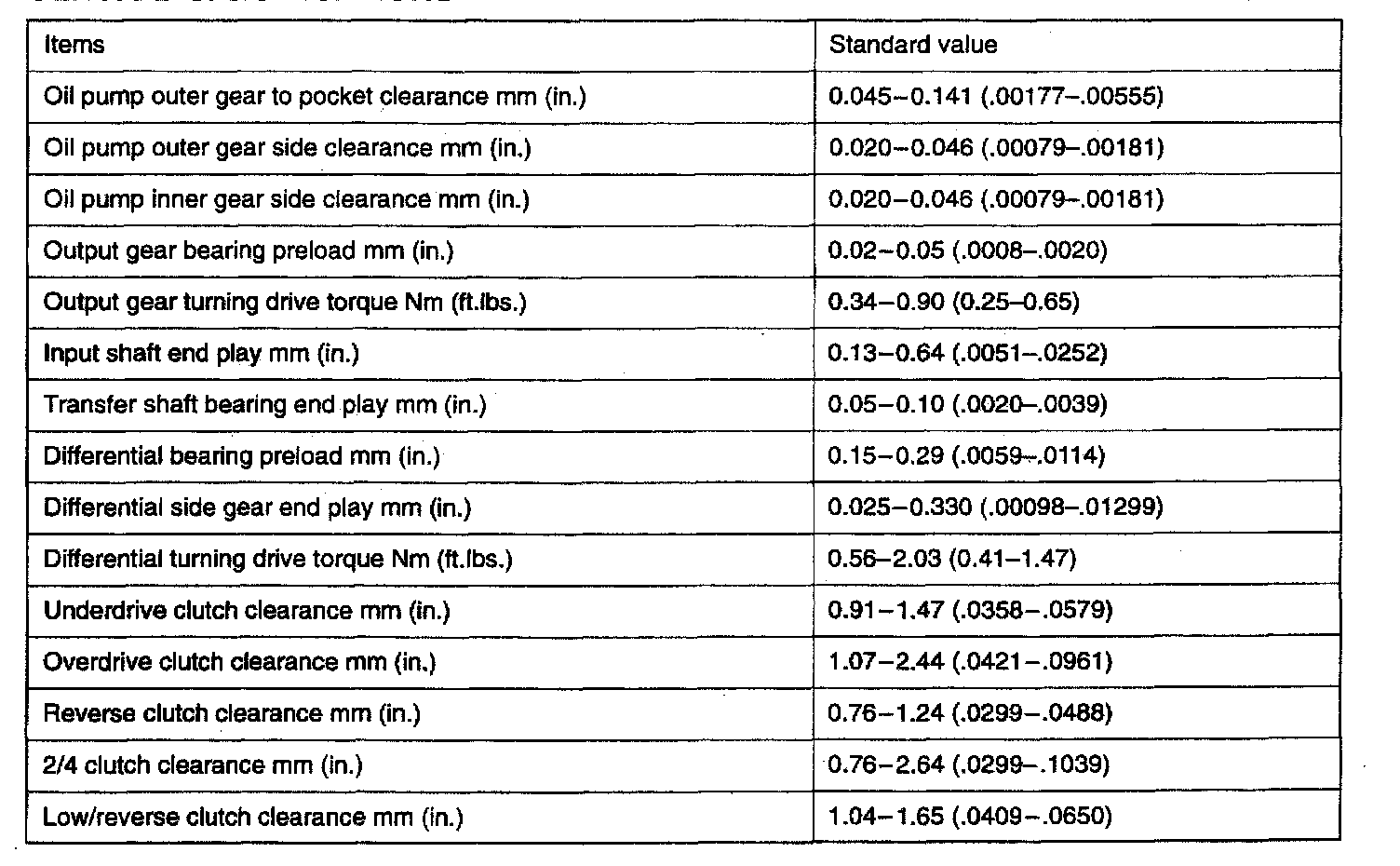

F4AC1 4-spd A/T, Standard Values:





F4AC1 4-spd A/T, Transaxle Torque:

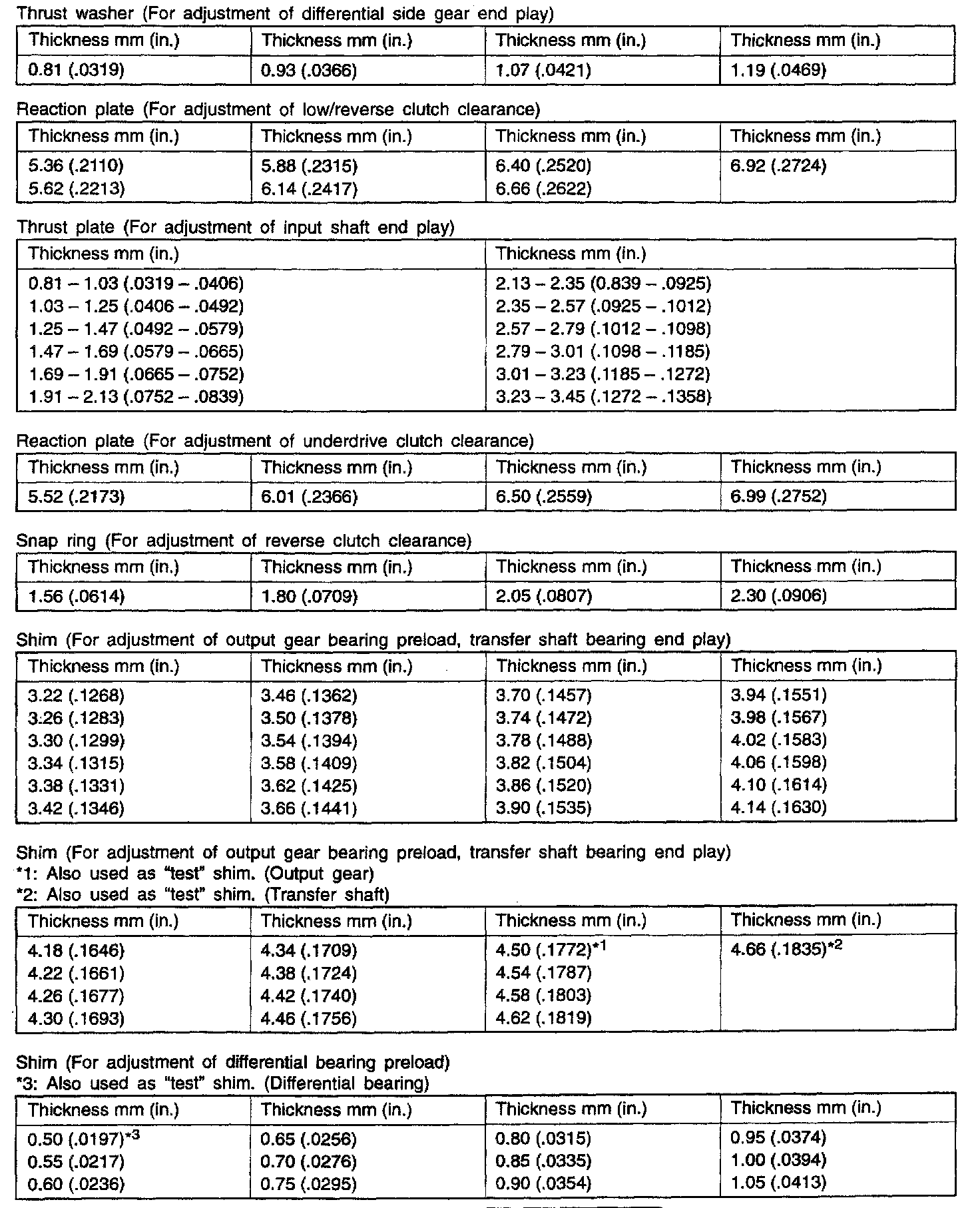

Thrust Plate, Thrust Washer, Reaction Plate & Snap Ring:
