F4A23 4-SPD A/T

F4A23/F4A33 4-spd A/T, Gear Ratios:

4-spd A/T, Function Element Chart:

4-Spd A/T, Standard Values:

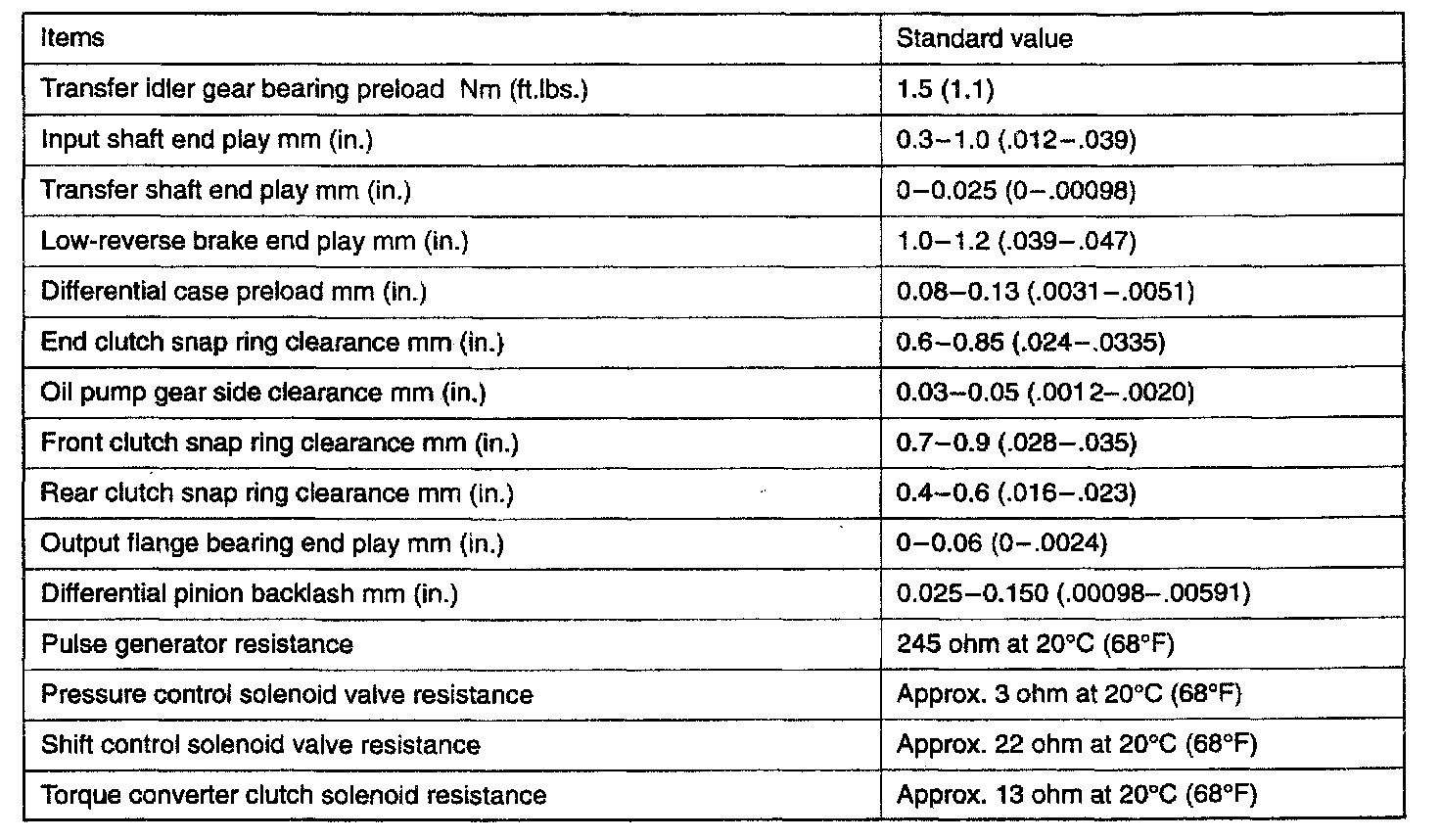

F4A23 4-spd A/T, Standard Values:

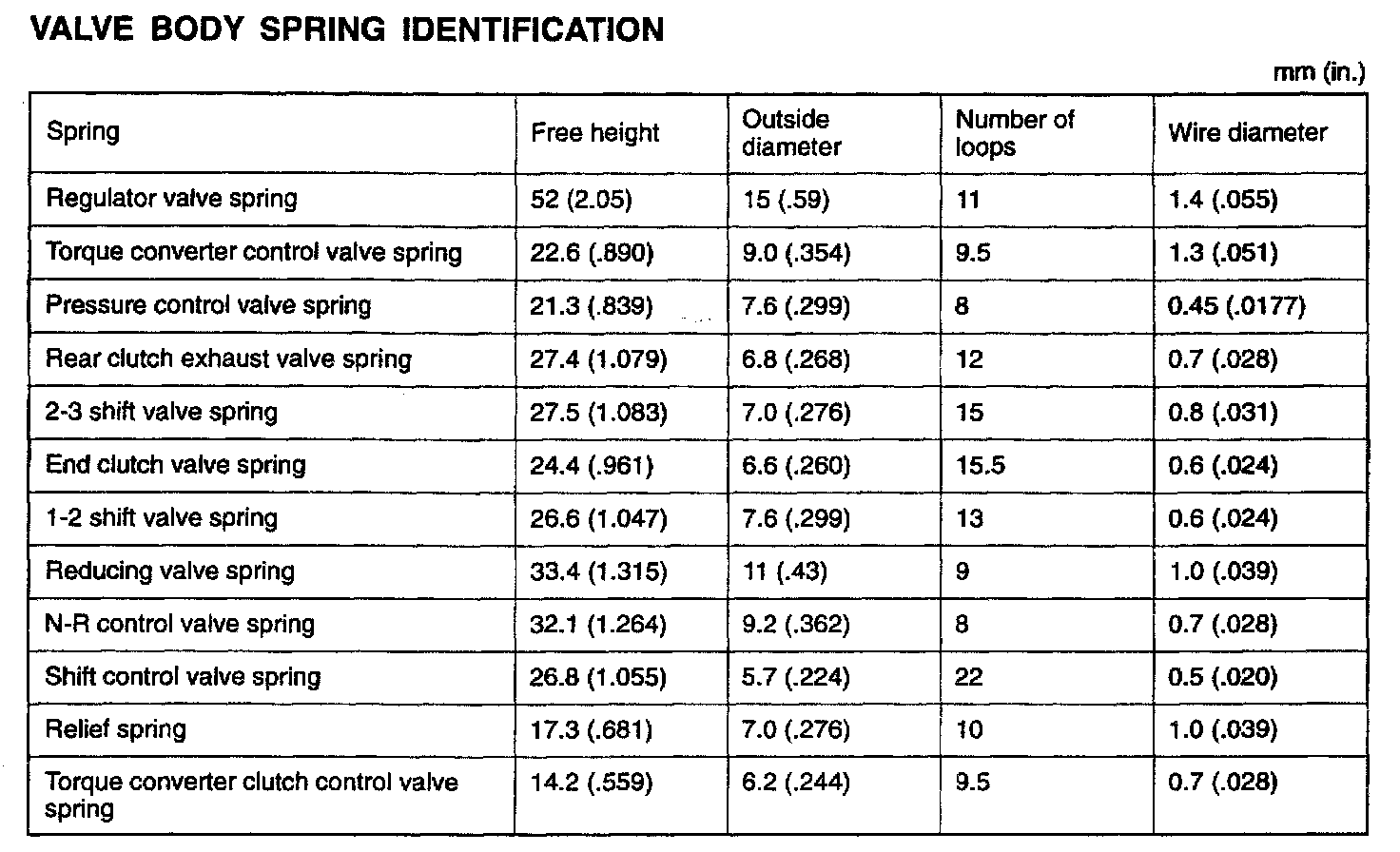

F4A23 4-spd A/T, Valve Spring Chart:

F4A23 4-spd A/T, Input Shaft End Play & Low-Reverse Brake End Play:

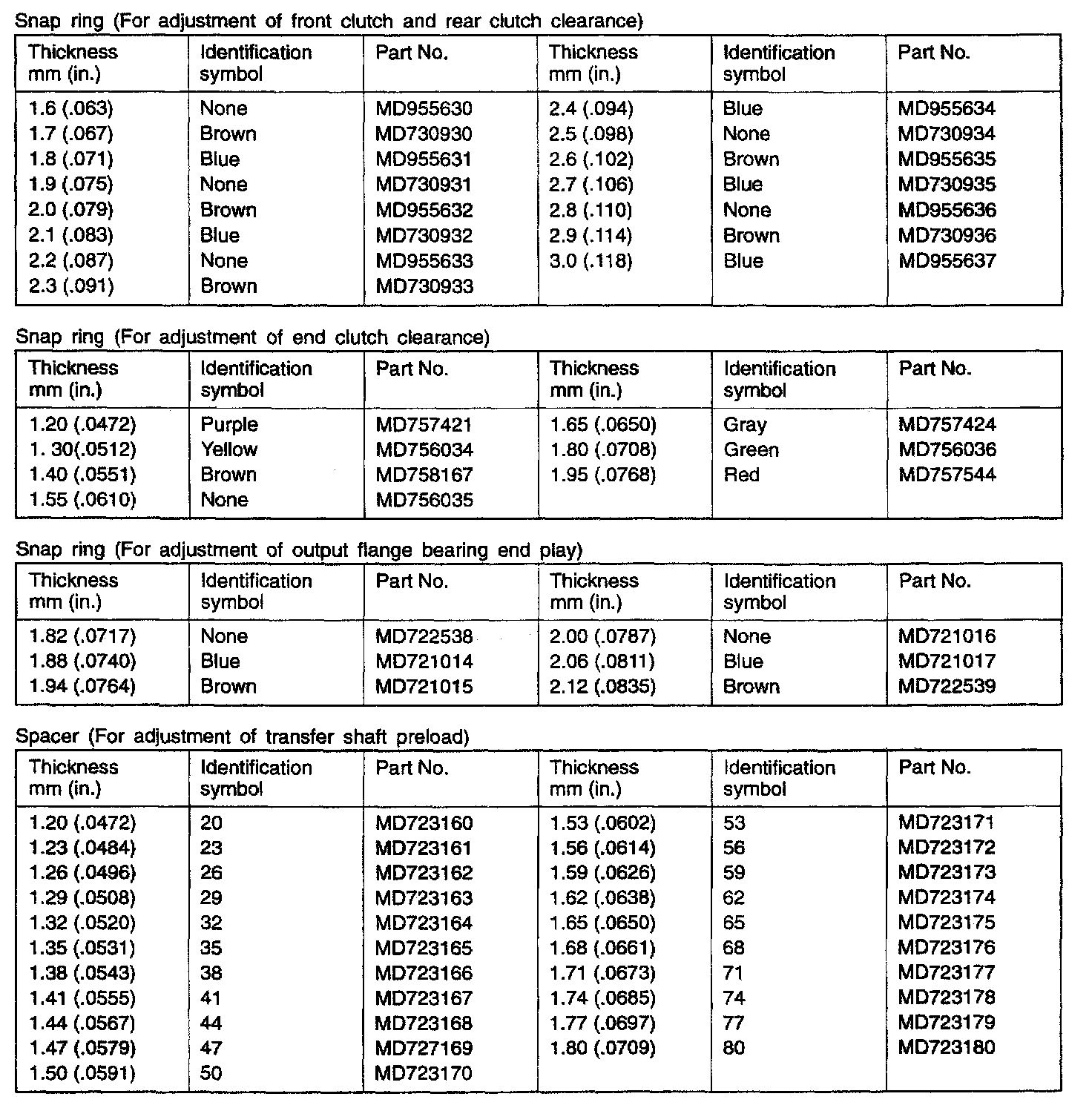

F4A23 4-spd A/T, Clutch Clearances, Output Bearing Play & Transfer Shaft:

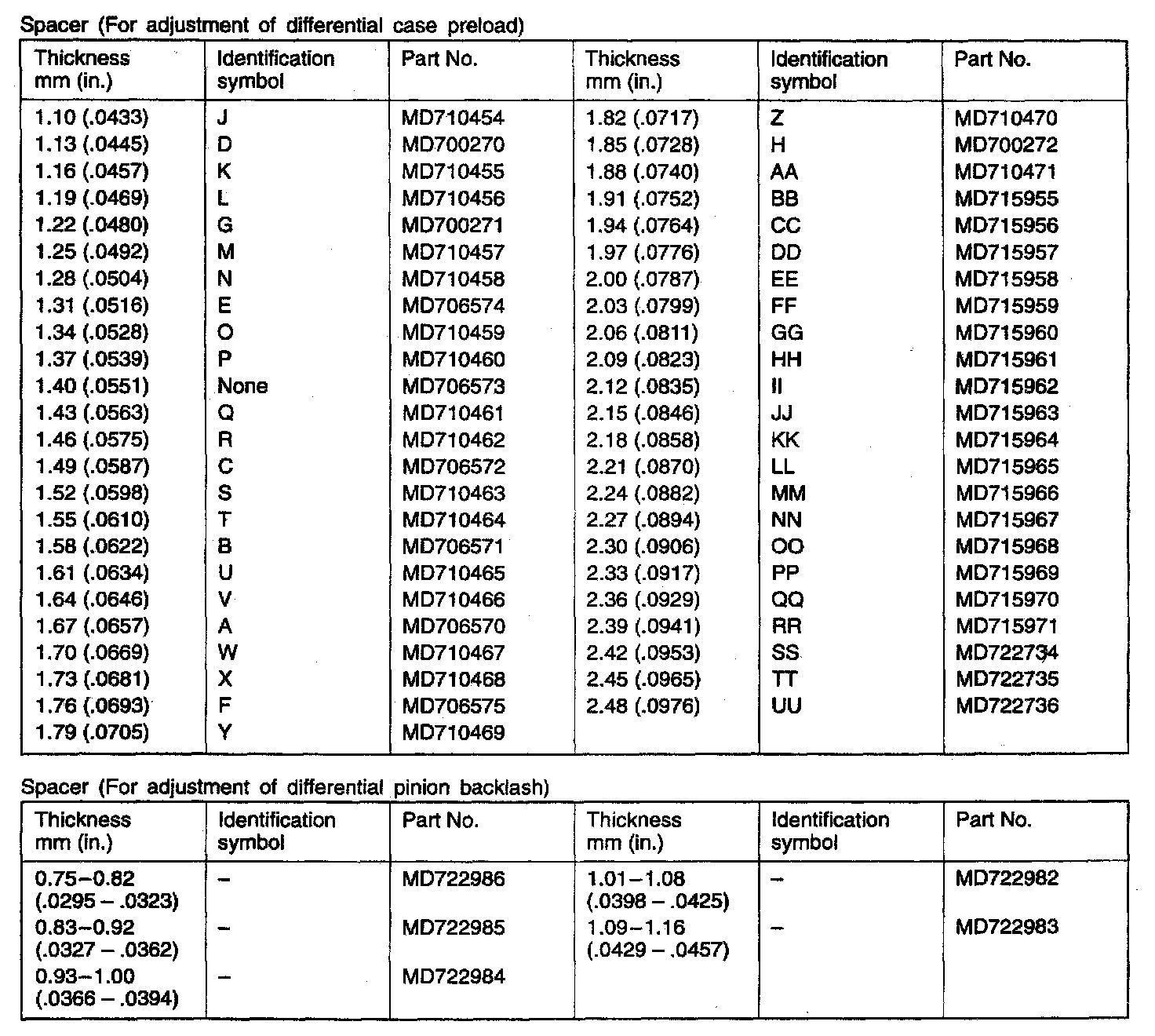

F4A23 4-spd A/T, Differential Case Preload & Pinion Backlash:
