Without Amplifier

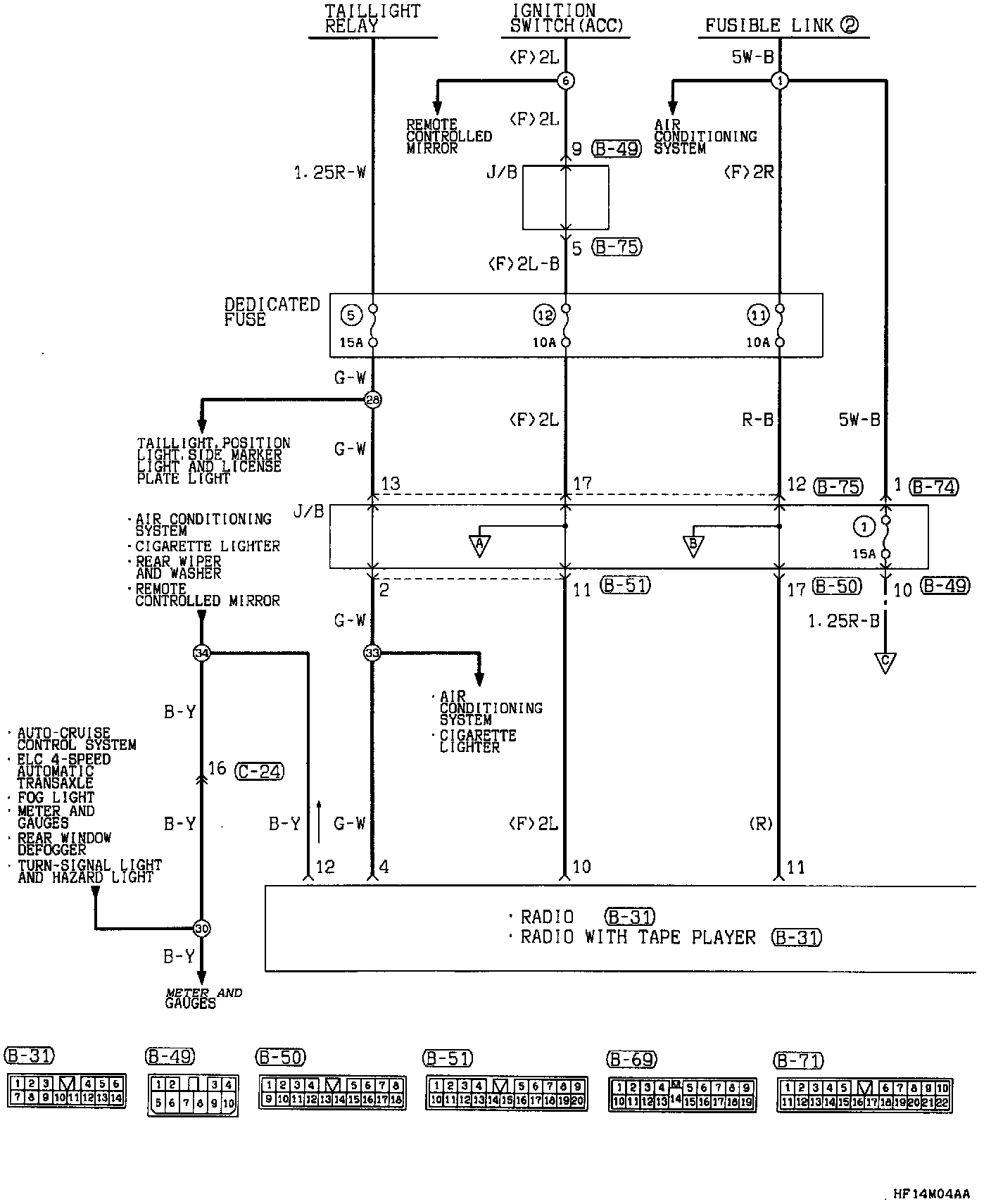

Radio And Tape Player Circuit (Part 1 Of 3):

Dedicated Fuse
J/B
Radio
Radio With Tape Player

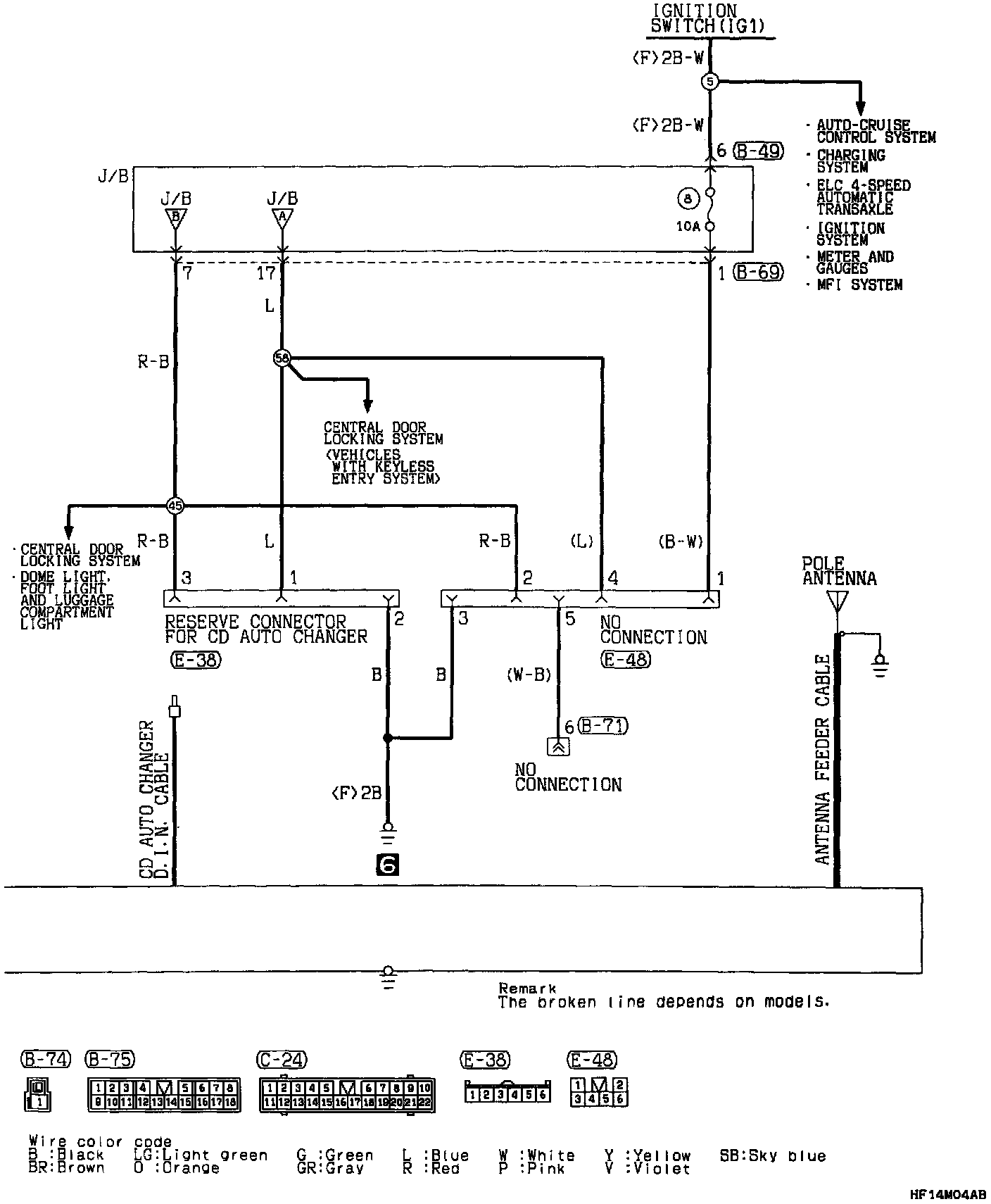

Radio And Tape Player Circuit (Part 2 Of 3):

J/B
Radio
Radio With Tape Player

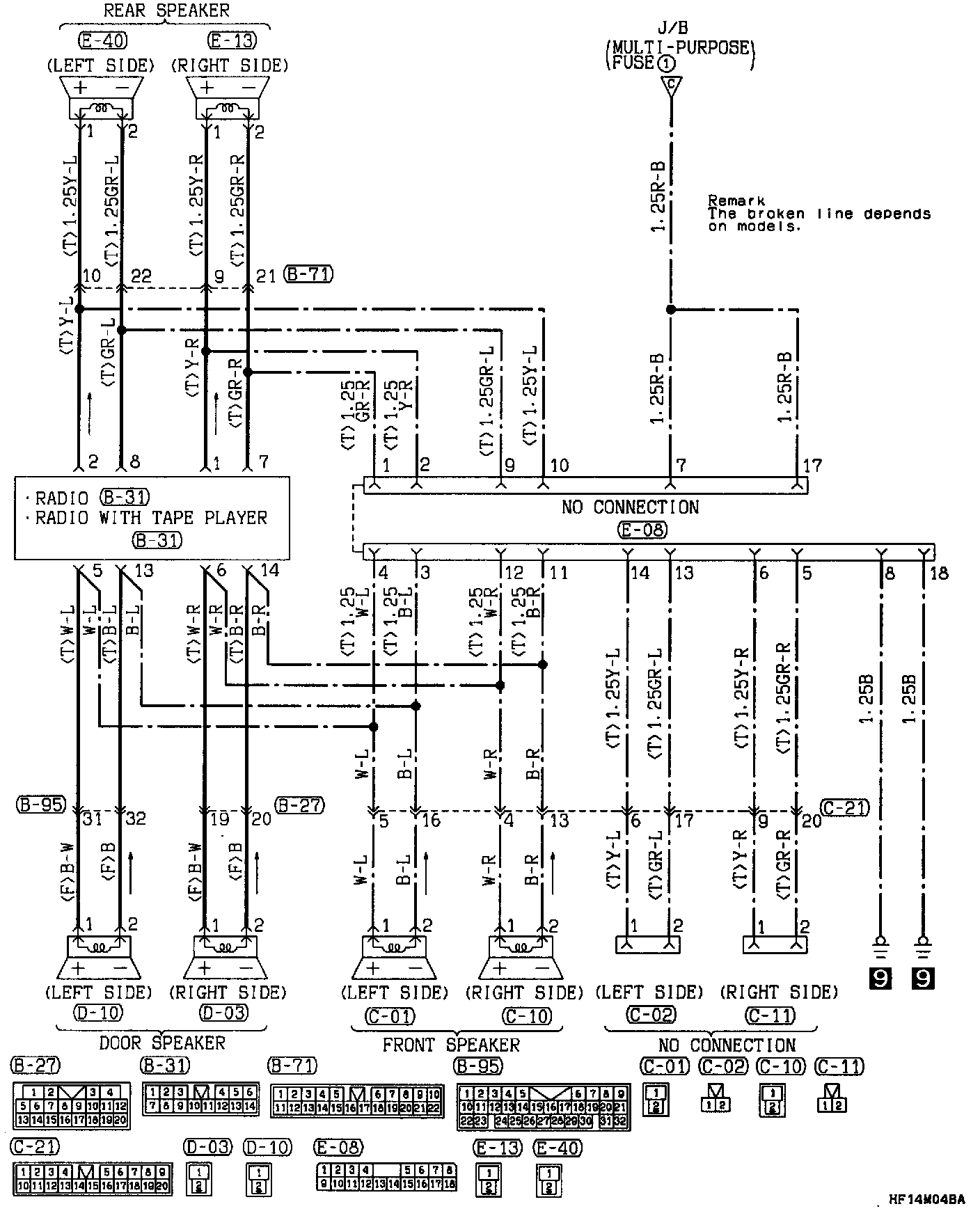

Radio And Tape Player Circuit (Part 3 Of 3):

Radio
Radio With Tape Player
