Driven Bevel Gear

DISASSEMBLY
Follow disassembly steps outlined in illustration.

NOTE: Disassembly service points as follows:

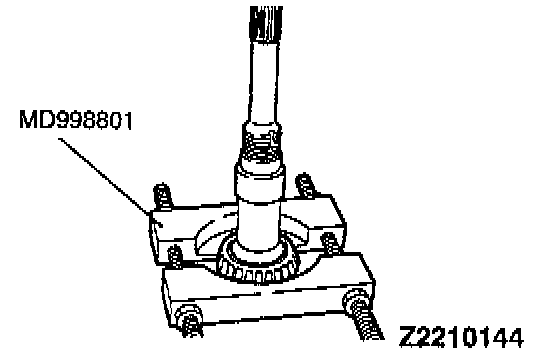

A. Taper roller bearing removal. (2)

ASSEMBLY
Assembly in reverse order as Disassembly.

NOTE: Assembly service points as follows:





A. Taper roller bearing installation. (2)
