Drive Bevel Gear

DISASSEMBLY
Follow disassembly steps outlined in illustration.

NOTE: Disassembly service points as follows:

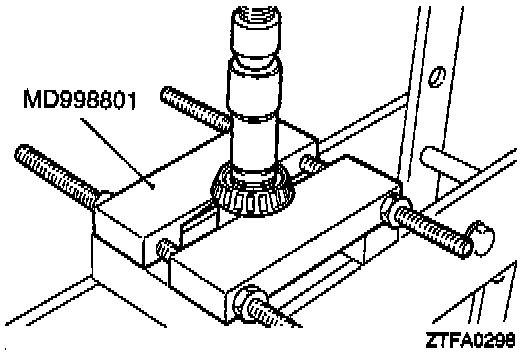

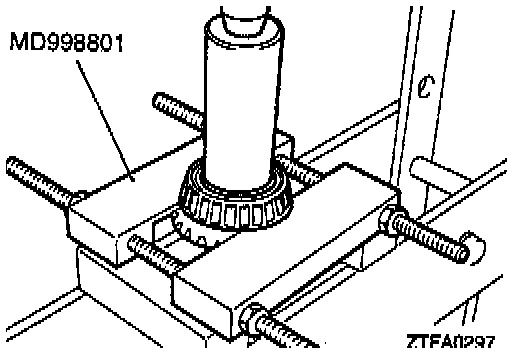

A. Taper roller bearing removal. (1 & 2)





B. Drive bevel gear removal. (3)

ASSEMBLY
Assembly in reverse order as Disassembly.

NOTE: Assembly service points as follows:





A. TRansfer drive bevel gear installation. (3)

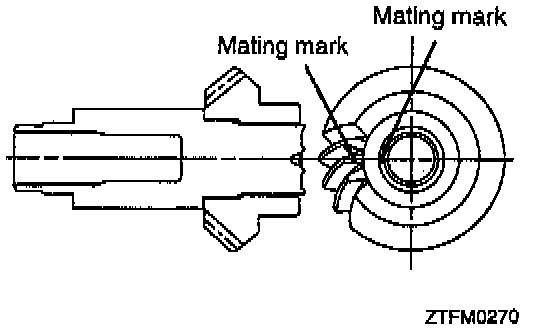

Install the drive bevel gear and drive bevel gear shaft with the mating marks aligned.

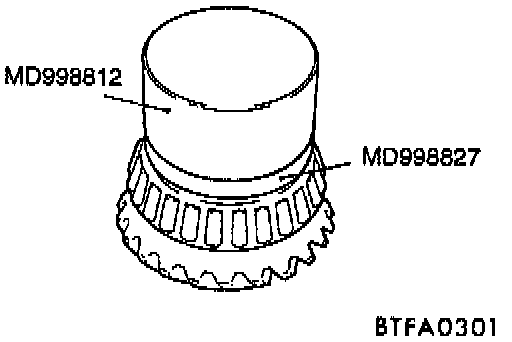

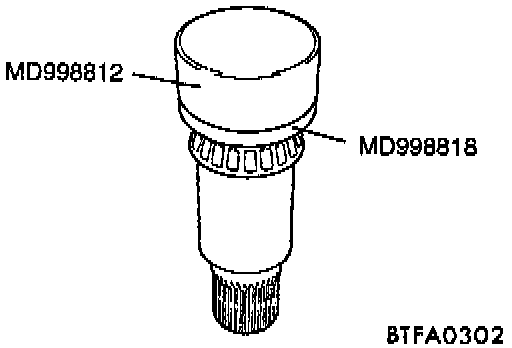

B. Taper roller bearing installation. (1 & 2)
