Extension Housing: Service and Repair

DISASSEMBLY

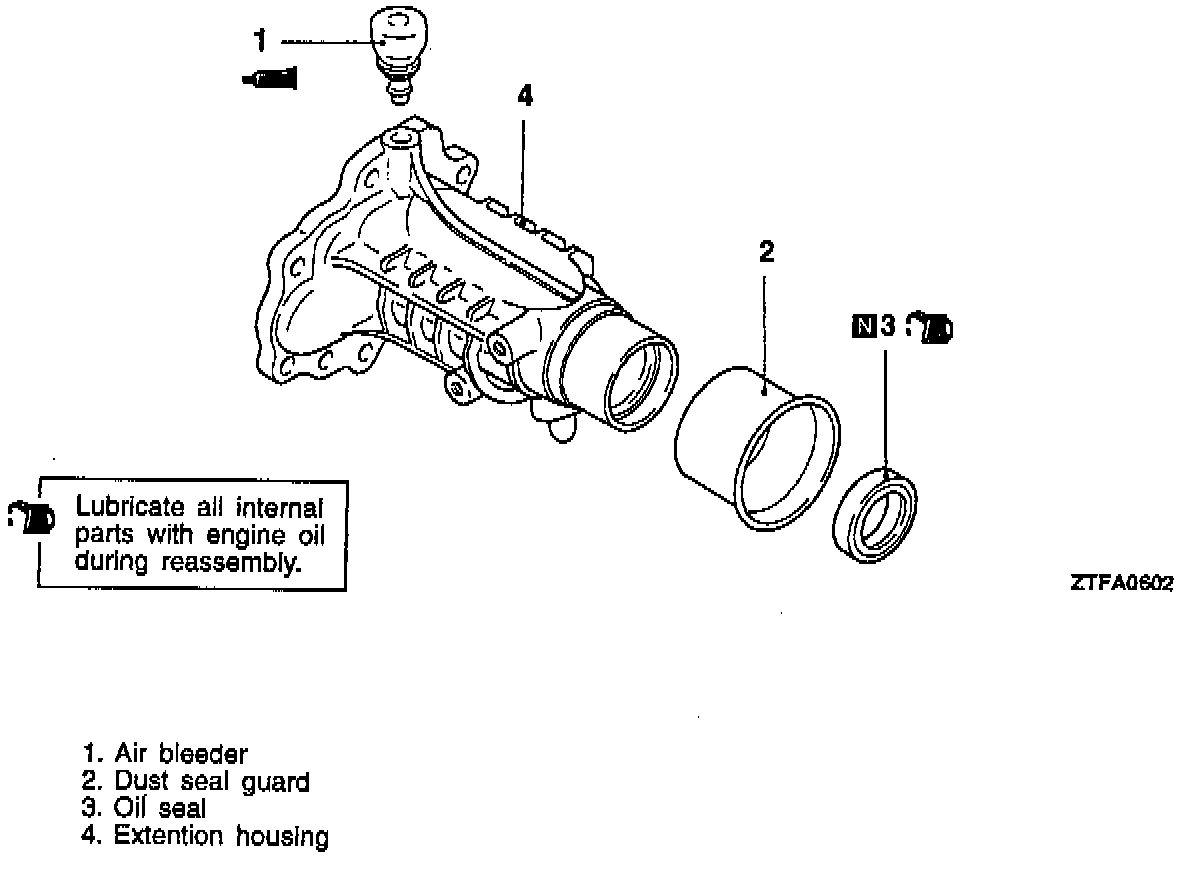

Follow disassembly steps outlined in illustration.

ASSEMBLY
Assembly in reverse order as Disassembly.

NOTE: Assembly service points as follows:

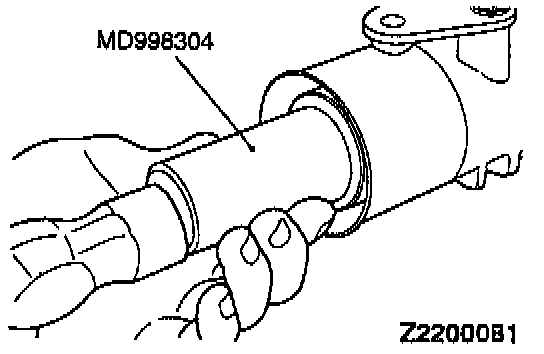

A. Oil seal installation. (3)

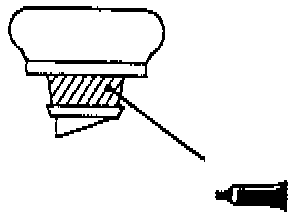

B. Air bleeder installation. (1)
Install the air bleeder applying sealant to the inserting portion.
Specified sealant: 3M SUPER WEATHERSTRIP No. 8001 or equivalent.
