Bell Housing: Service and Repair

DISASSEMBLY
Follow disassembly steps outlined in illustration.

NOTE: Disassembly service points as follows:

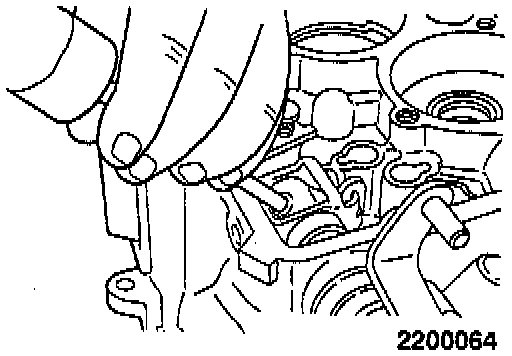

A. Lock pin removal. (6)

CAUTION: When removing the lock pin, turn the control lever to such position that the lock pin will not contact the clutch housing.

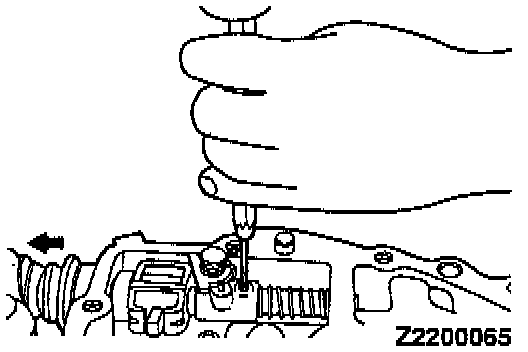

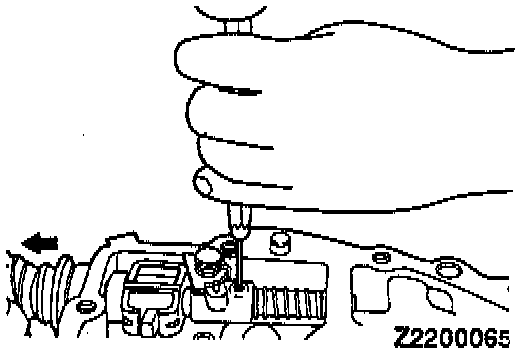

B. Spring pin removal. (7)

CAUTION: When removing the spring pin, pull the control shaft in the direction illustrated so that the spring pin will not contact the clutch housing.

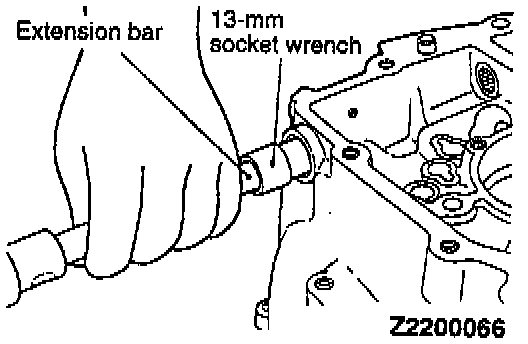

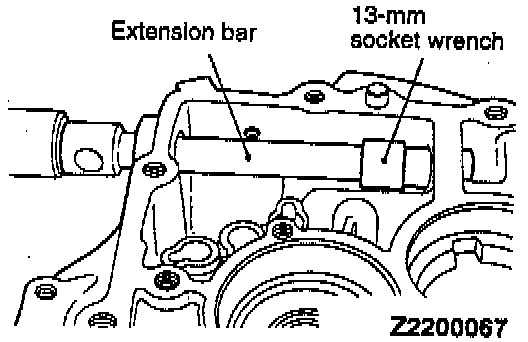

C. Needle bearing removal. (16 & 17)

ASSEMBLY
Assembly in reverse order as Disassembly.

NOTE: Assembly service points as follows:

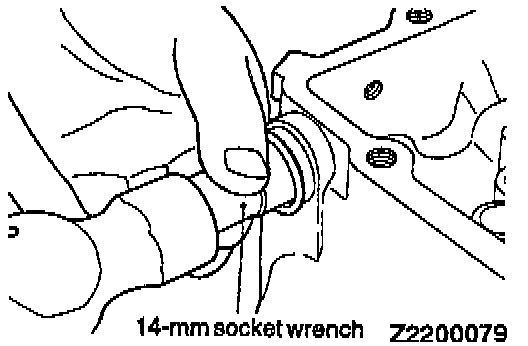

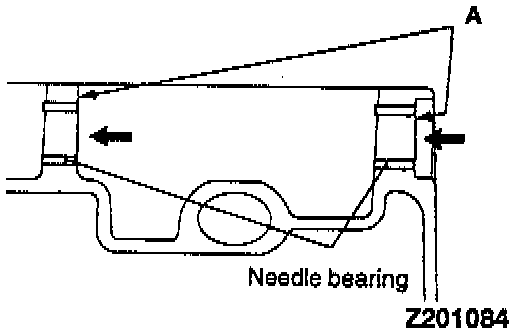

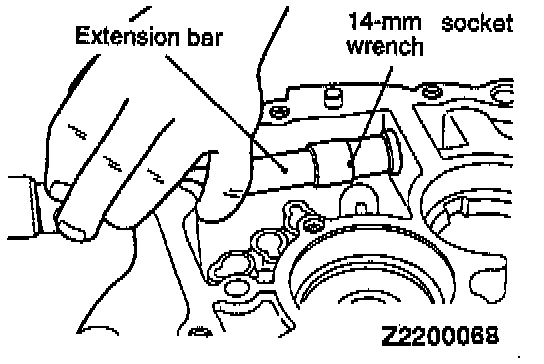

A. Needle bearing installation. (16 & 17)
1. Install the needle bearing flush with the surface A of the clutch housing using a socket wrench.
2. Install with the part type stamped side facing the surface A.

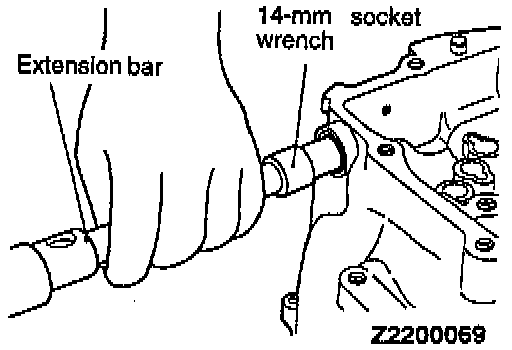

B. 0il seal installation. (15)








C. Spring pin / lock pin installation. (6 & 7)

CAUTION:
- Do not reuse the spring pin and lock pin.

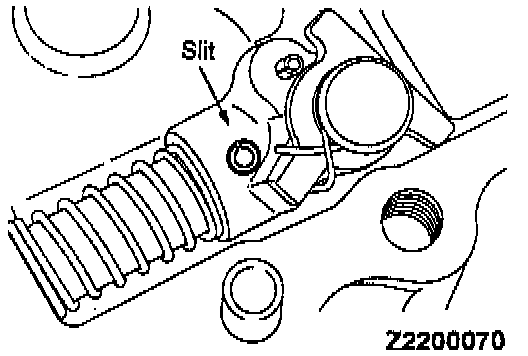

- Install the spring pin in such a way its slit will be at right angle to the control shaft center.
