Manual Transmission/Transaxle: Application and ID

GENERAL INFORMATION

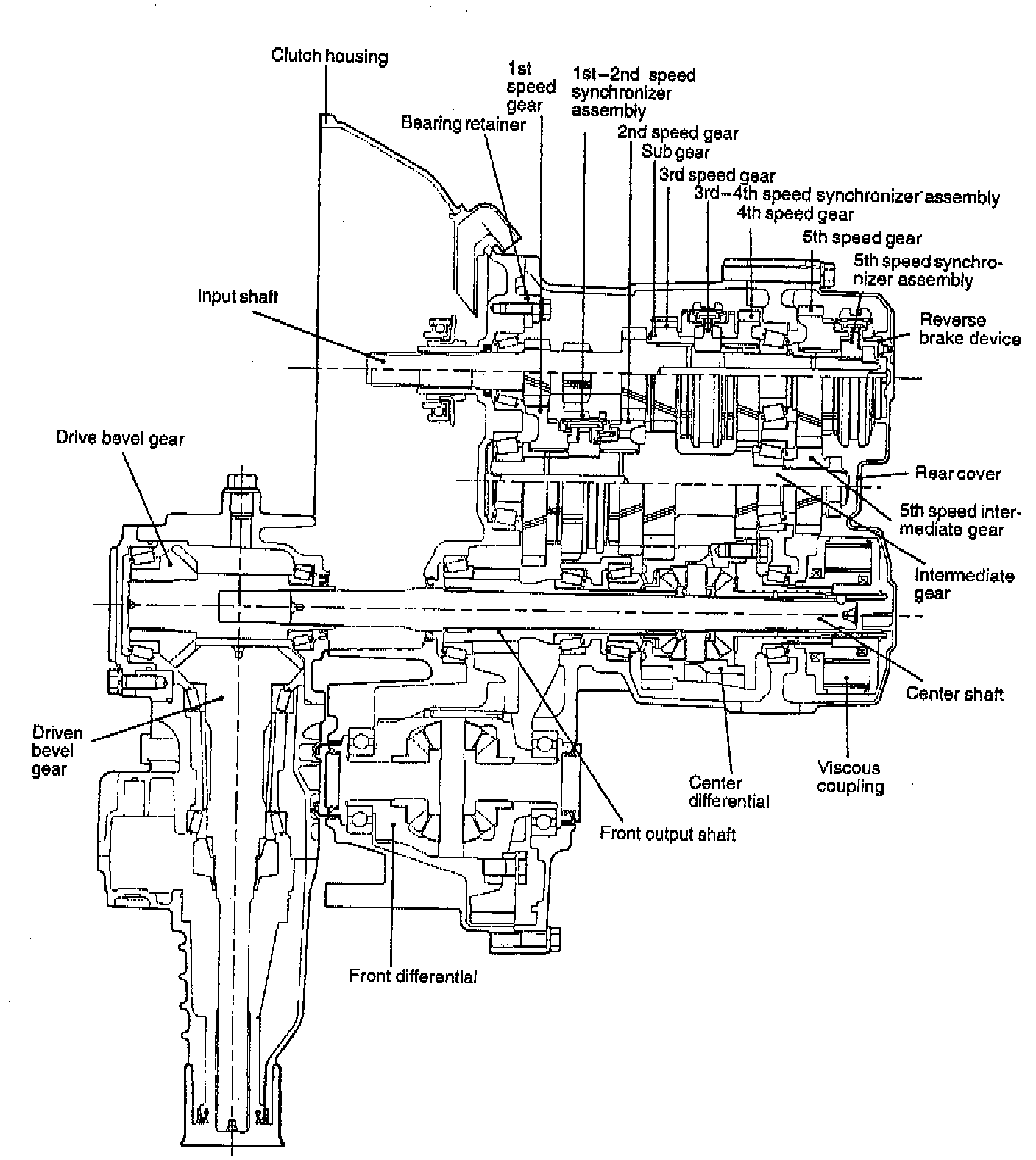

Model: W5M33-2-MUZT
Applicable Engine: 4G63
Type: 5-speed floor shift
Gear Ratio:
1st: 3.083
2nd: 1.684
3rd: 1.115
4th: 0.833
5th: 0.666
Reverse: 3.166
Reduction Ratio:
Primary: 1.275
Front Differential: 3.800
Transfer: 1.074
Speedometer Gear Ratio (Driven/Drive): 28/36
