A/T - Special Tool Update
No: TSB-98-23-001DATE: January, 1998
MODEL: 1997 Eclipse & Eclipse Spyder
SUBJECT:
A/T SPECIAL TOOLS UPDATE - SERVICE MANUAL REVISION
[TSB Revision TSB-98-23-001]
PURPOSE
This bulletin contains updates to the automatic transaxle special tool list in the 1997 Eclipse/Eclipse Spyder Volume 1 Service Manual. A new flushing tool is available and there is a new supersession part number for the oil pressure gauge adapter set.
Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.
AFFECTED VEHICLES
1997 Eclipse and Eclipse Spyder
AFFECTED SERVICE MANUAL
1997 Eclipse/Eclipse Spyder Service Manual, Volume 1, Page 23A-118
SERVICE MANUAL REVISION

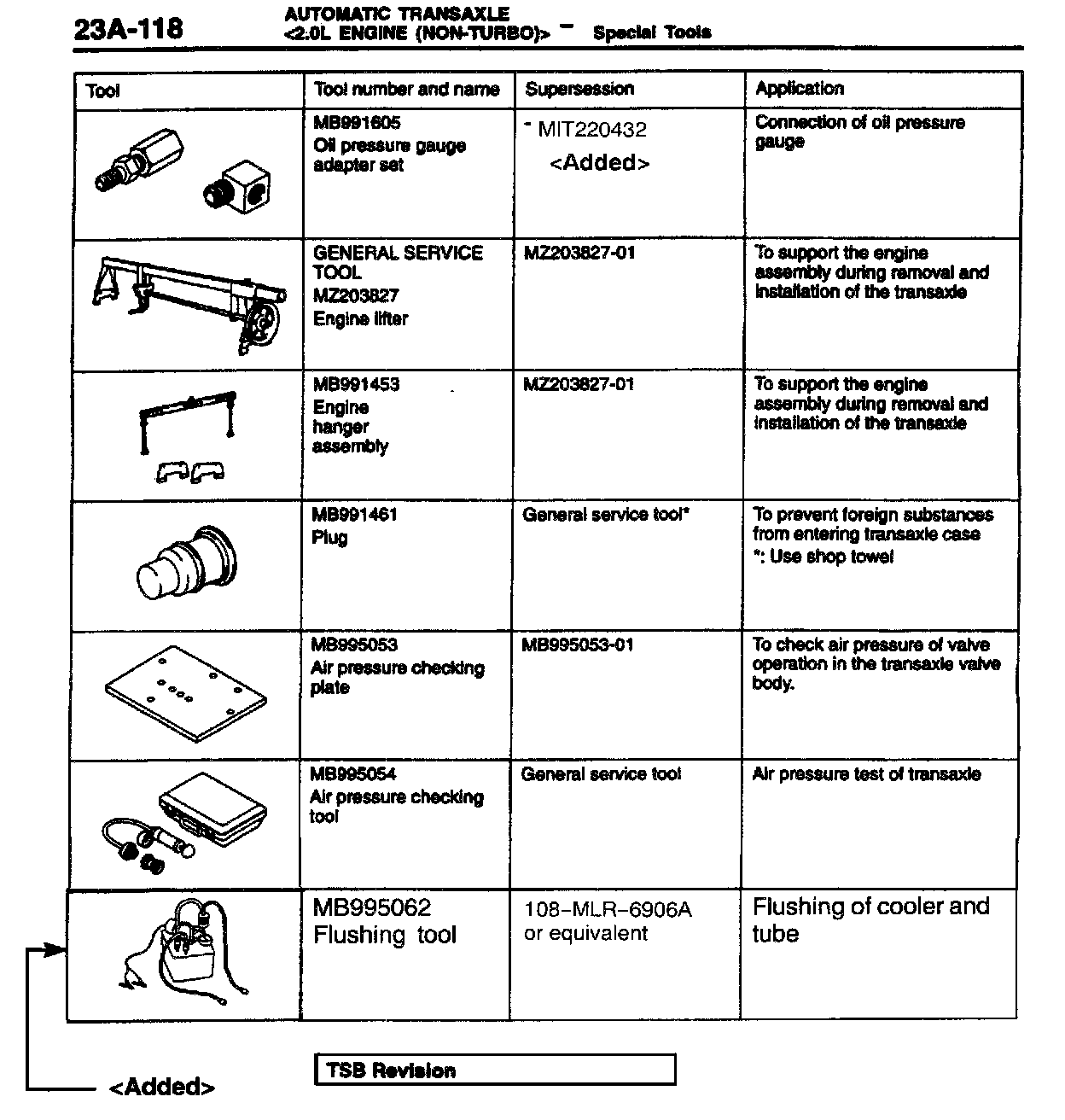

1997 Eclipse/Eclipse Spyder Service Manual, Volume 1, Page 23A-118
Add the new special tool information as shown:
