Shifter A/T: Service and Repair

DISASSEMBLY

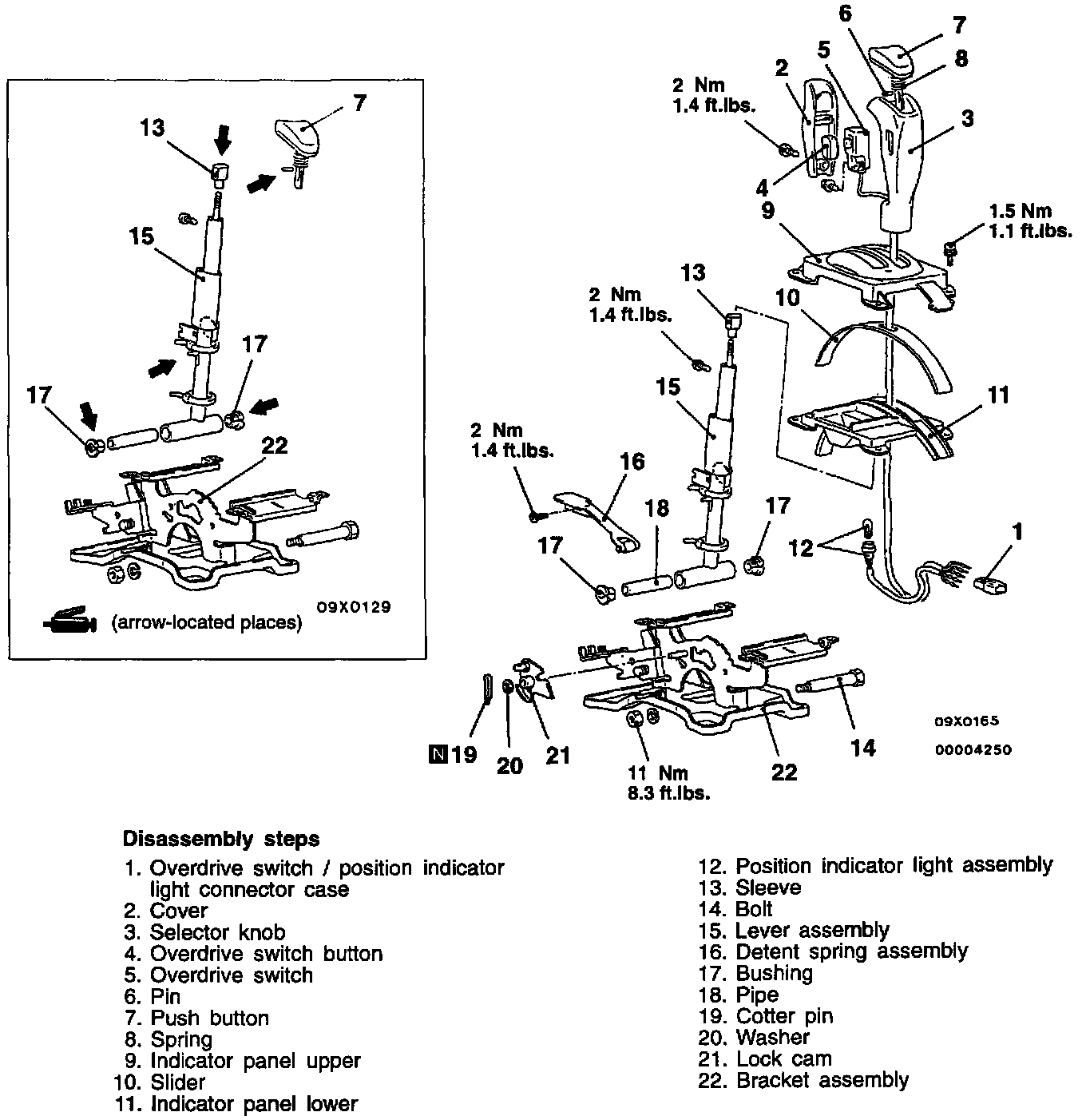

Follow disassembly steps outlined in illustration.

NOTE: Disassembly service points as follows:





A. Overdrive switch / position indicator light connector case removal. (1)
Use a flat-tip screwdriver or similar tool to pull out the terminal from the overdrive switch/position indicator light connector case.





B. Overdrive switch button / overdrive switch removal. (4 & 5)

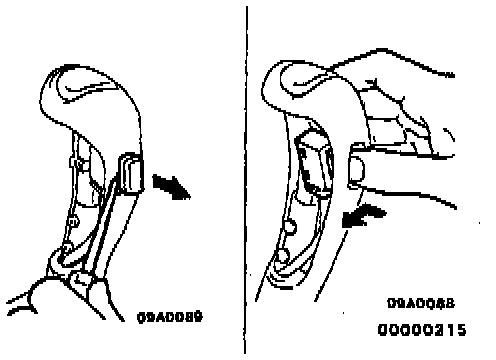

1. Using the flat-tip screwdriver, remove the overdrive control switch button.
2. Remove the overdrive control switch mounting screw.
3. Pressing the switch, remove the overdrive control switch.

INSPECTION
1. Check the detent plate for wear.
2. Check the bushing for wear or damage.
3. Check the spring for damage or deterioration.








Overdrive Switch Continuity Check
Check for continuity between terminals when the switch is OFF and when ON.

ASSEMBLY
Assembly in reverse order as Disassembly.

NOTE: Assembly service points as follows:





A. Detent spring assembly installation. (16)

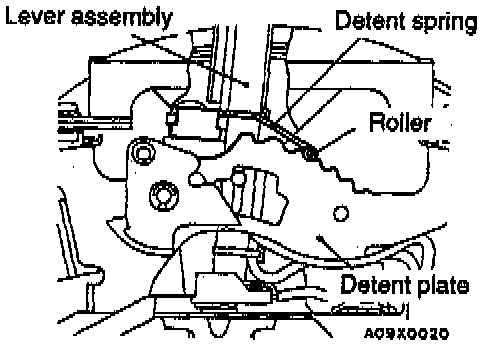

Shift the selector lever to the neutral (N) position, and then install the detent spring assembly so that the roller is in the detent plate groove.





B. Selector knob installation. (3)

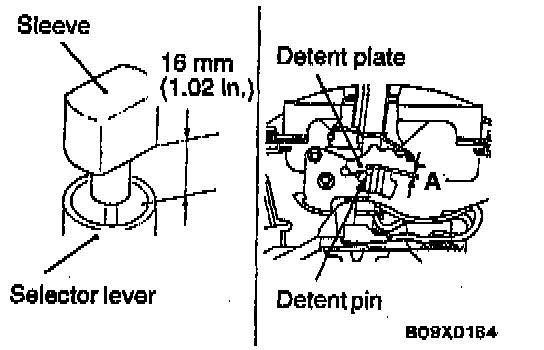

1. Put the selector lever in the "N" position, turn the sleeve and adjust the dimension between the sleeve and the end of the lever so it reaches 16 mm (1.02 inch).
2. Install the selector knob.
3. Check that dimension (A) between the detent plate and detent pin reaches the standard value.
Standard value (A): 1.7-2.4 mm (.067-.094 inch)
4. If outside the standard value, remove the selector knob and turn the sleeve again to readjust.
