Shift Interlock Cable: Service and Repair

REMOVAL

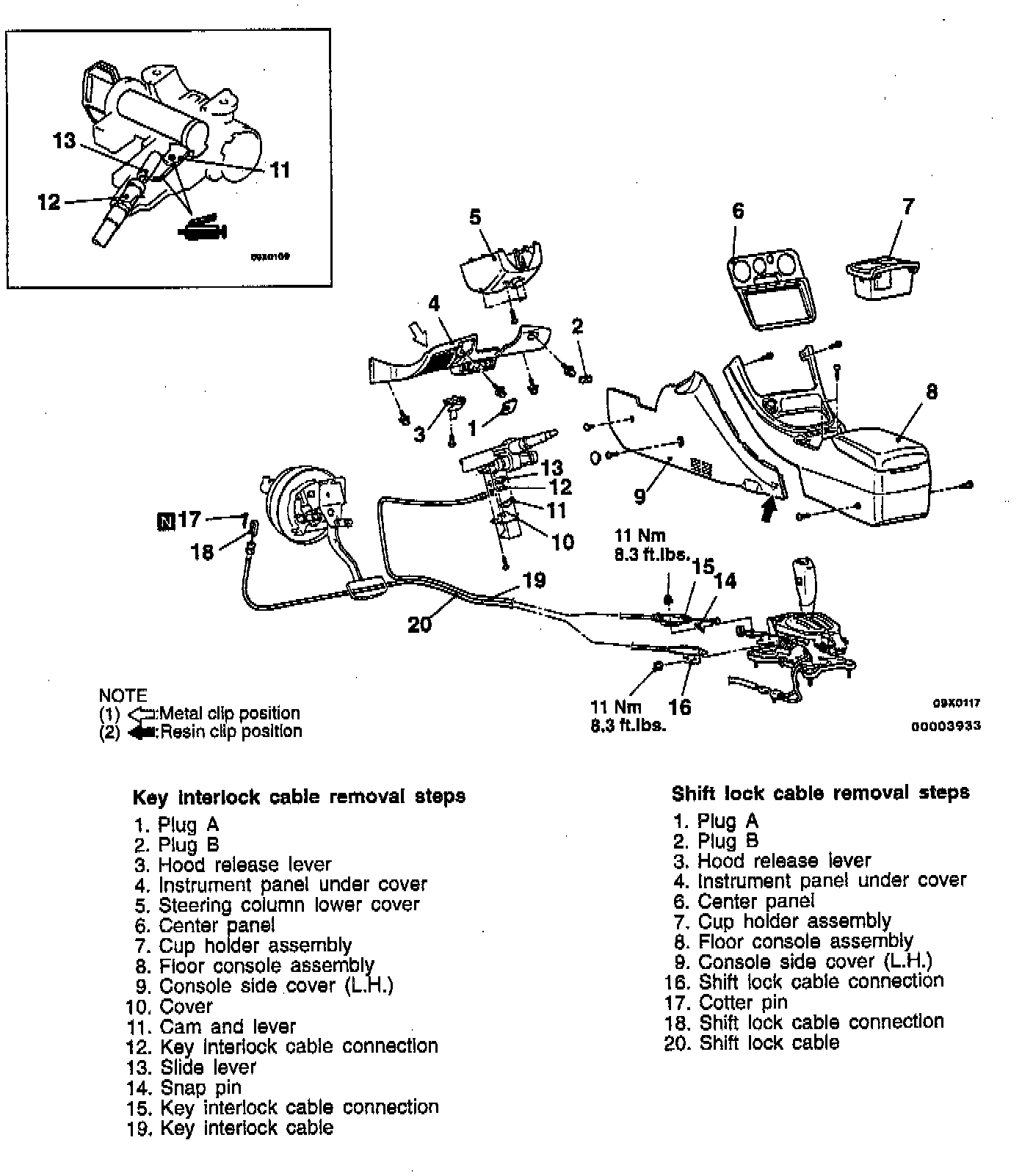

Follow removal steps outlined in illustration.

CAUTION: Supplemental Restraint System (SRS). Be careful not to subject the Air Bag Control Unit (SRS-ECU) to any shocks during removal and installation of the key interlock cable and shift lock cable.

INSPECTION
Check the cable assemblies for function and for damage.

INSTALLATION
Installation in reverse order as removal.

NOTE: Installation service points as follows:

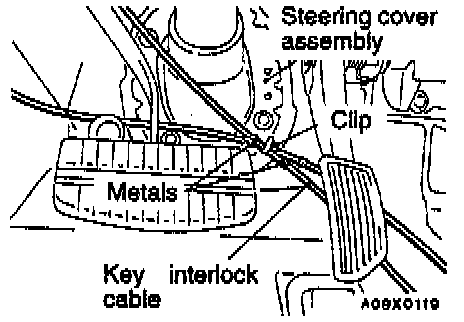

A. Shift lock cable/ key interlock cable installation. (19 & 20)
Secure the section between the metals of the shift lock cable and key interlock cable with the clip of the steering cover assembly.

CAUTION: Do not change the routing of shift lock cable to the selector lever assembly.

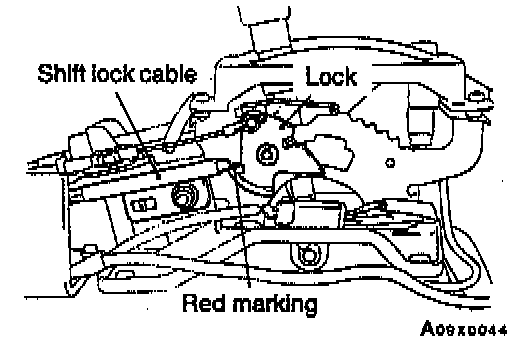

B. Shift lock cable (selector lever side) installation. (16)
1. Place the selector lever in position "P".
2. Fasten the shift lock cable at the position where the end of the shift lock cable is positioned above the red marking.

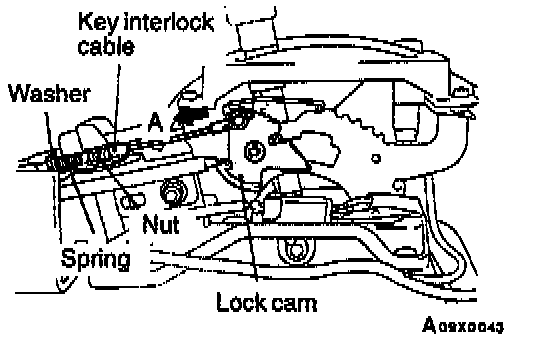

C. Key interlock cable (selector lever side) installation. (15)
1. Install the key interlock cable on the lock cam.
2. Install the spring and washer of the key interlock cable as shown.
3. While lightly pushing the cable coupling portion of the lock cam in the direction A, tighten the nut to fasten the key interlock cable.
