Output Shaft: Service and Repair

DISASSEMBLY

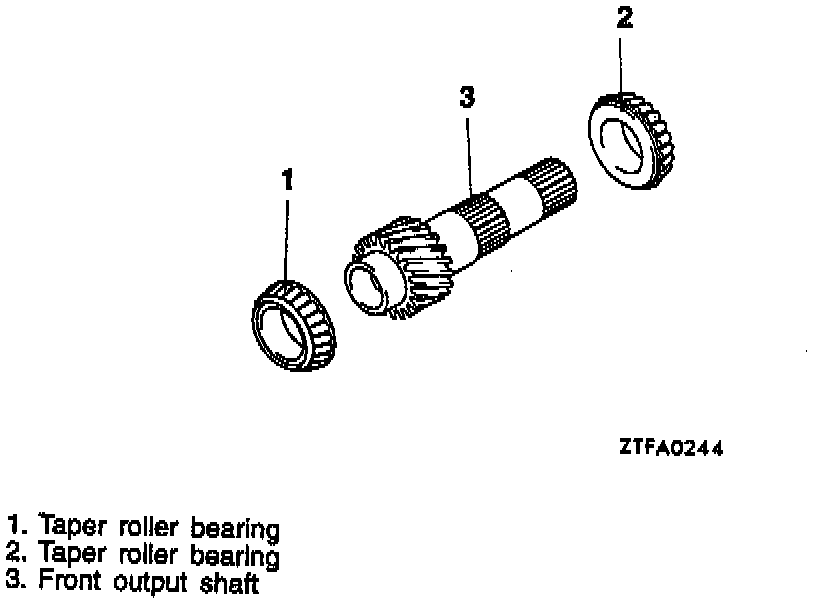

Follow disassembly steps outlined in illustration.

NOTE: Disassembly service points as follows:





A. Taper roller bearings removal. (1 & 2)
Using the special tool, remove the taper roller bearings on both ends of the front output shaft.

NOTE:
- Do not reuse the bearing removed from the shaft.
- Replace the inner and outer races of the taper roller bearing as a set.

ASSEMBLY
Assembly in reverse order as Disassembly.

NOTE: Assembly service points as follows:








A. Taper roller bearings installation. (1 & 2)
Using the special tool, press-fit the taper roller bearings on both ends of the front output shaft.
