Automatic Transmission/Transaxle: Application and ID

The automatic transaxles come in two models, namely, F4A23, F4A33 and W4A33. These transaxles are essentially the same as the conventional models.

Model: W4A33-1-FNQ

Type: Electronically controlled 4-speed full-automatic.

Torque Converter:
Type: 3-element with torque converter clutch
Engine stall speed rpm: 3,300-3,800

Gear Ratio:
1st: 2.551
2nd: 1.488
3rd: 1.000
4th: 0.685
Reverse: 2.176

Reduction Ratio:
Primary: 1.228
Front differential: 3.550
Transfer: 1.074

Speedometer Gear Ratio (driven/drive): 28/36

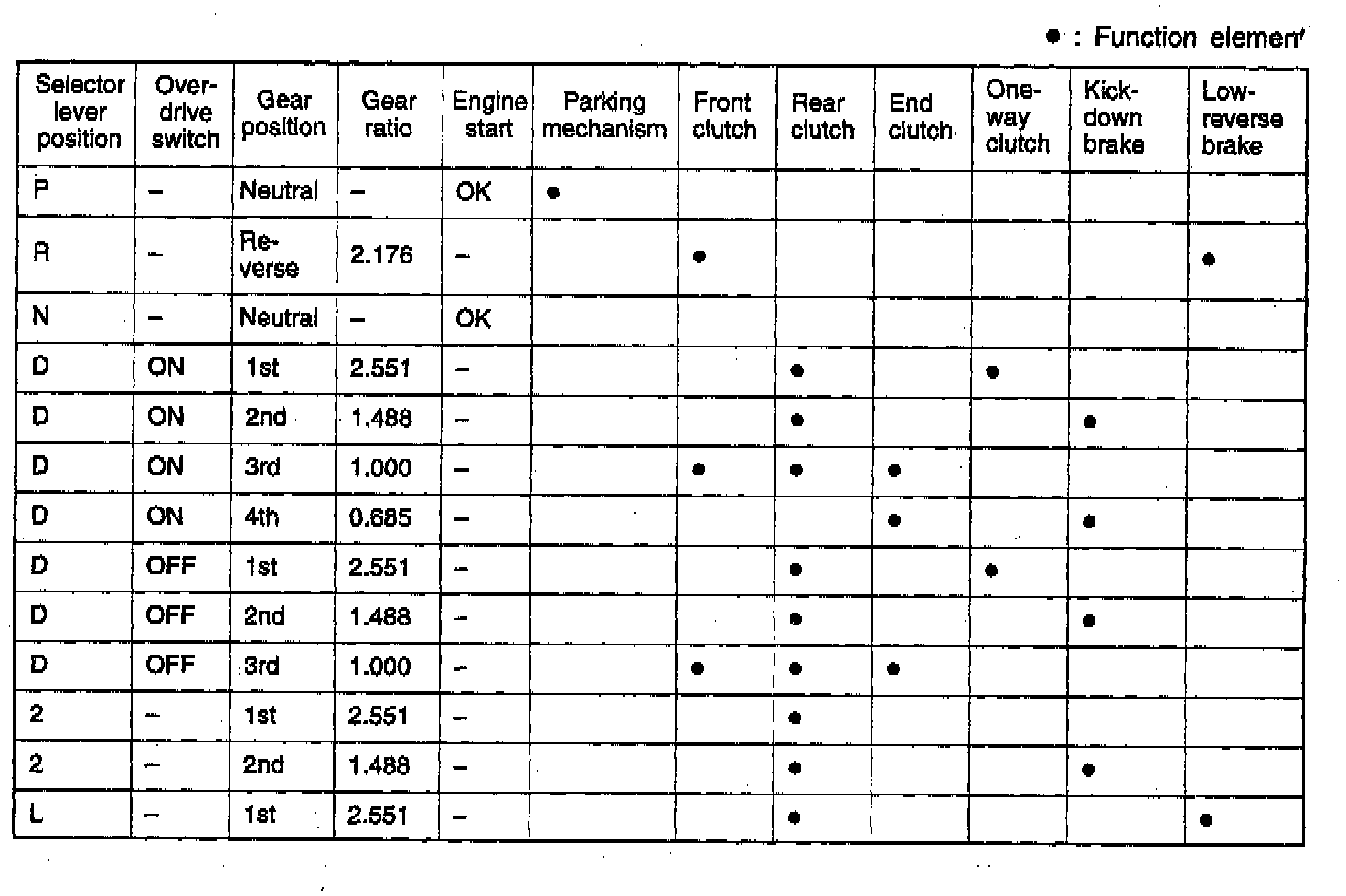

Function Element Table
