Front Suspension

REMOVAL

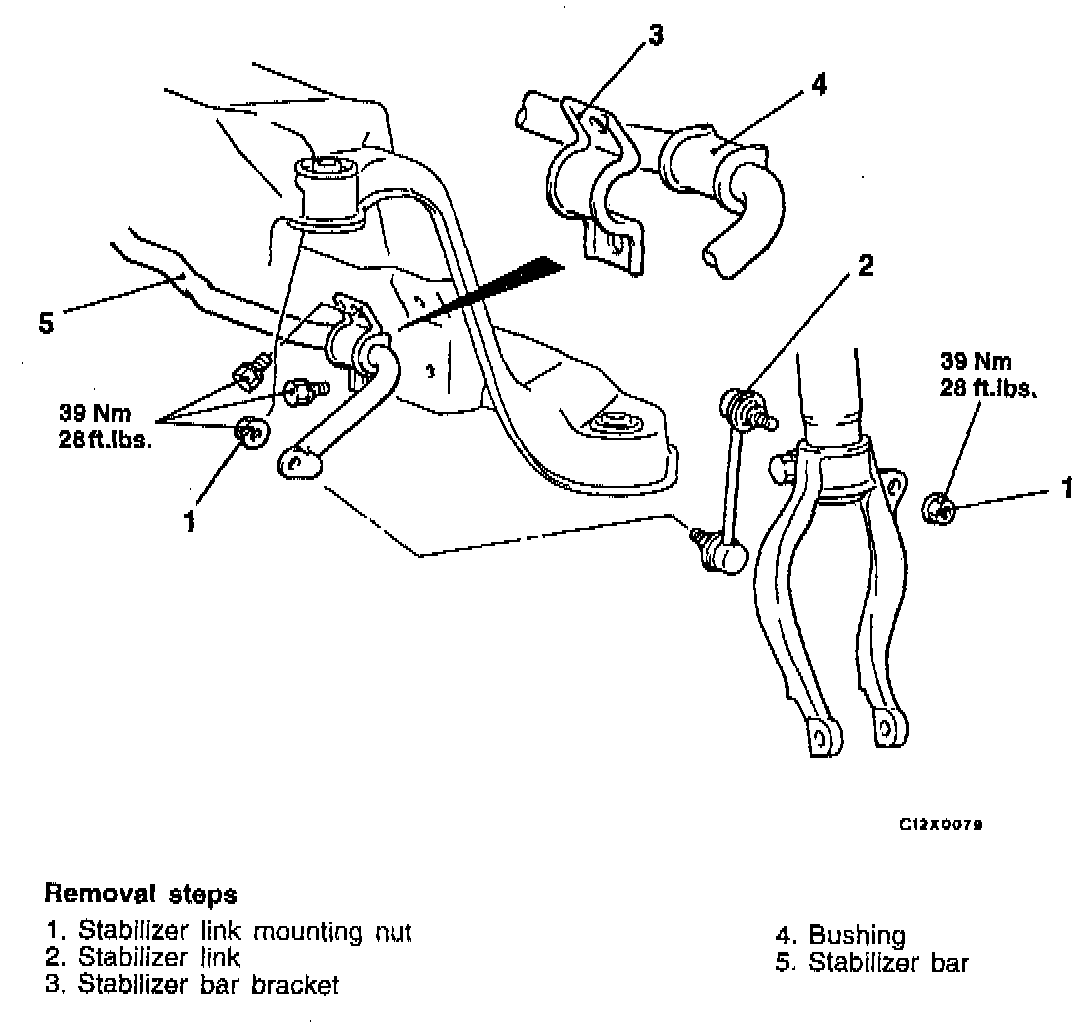

Follow removal steps outlined in illustration.

INSTALLATION
Installation in reverse order as removal.

NOTE: Installation service points as follows:





a. Stabilizer bar bracket installation (3).
Position the stabilizer bar so that the marking on the stabilizer bar and the edge of the bracket becomes the reference value, and then tighten the stabilizer bar bracket mounting bolt.
