Lower Arm and Toe Control Arm Assemblies

REMOVAL
Follow removal steps outlined in illustration.

NOTE: Removal service points as follows:





a. Toe control arm ball joint and knuckle disconnection (7).


CAUTION:
1. Be sure to tie the cord of the special tool to a nearby part.
2. Loosen the nut but do not remove it.





b. Toe control arm assembly mounting bolt removal (8).

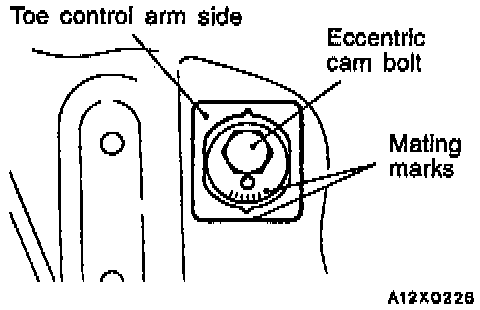

Make mating marks on the toe control arm and eccentric cam bolt before removing the bolt.

INSPECTION
1. Check the bushings for wear and deterioration.
2. Check the lower arm or toe control arm for bends or damage.
3. Check all bolts for condition and straightness.

INSTALLATION
Installation in reverse order as removal.

NOTE: Operational steps after installation as follows:
- Wheel alignment check and adjust.
