Compression Lower Arm and Lateral Assemblies

REMOVAL
Follow removal steps outlined in illustration.

NOTE: Removal service points as follows:





a. Compression lower arm ball joint and knuckle/lateral lower arm ball joint and knuckle disconnection (1 & 6).

CAUTION:

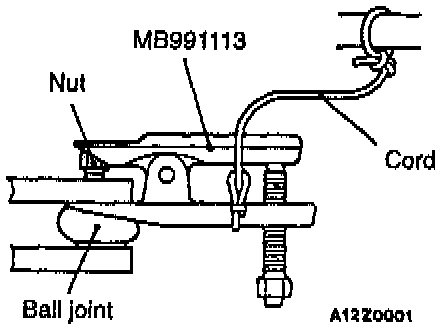

- Use the special tool to loosen the tie rod end mounting nut. Only loosen the nut; do not remove it from the ball joint.
- Support the special tool with a cord, etc. to prevent it from coming off.

INSPECTION
1. Check the bushings for wear and deterioration.
2. Check the lower arm for bends or damage.
3. Check all bolts for condition and straightness.
4. Check ball joint breakaway torque.





a. After shaking the bail joint stud several times, install the nut to the stud and use the special tool to measure the breakaway torque of the ball joint.
Compression lower arm ball joint
Standard value: 0.5-2.5 Nm (4-22 inch lbs.)
Lateral lower arm ball joint
Standard value: 1.5 Nm (13 inch lbs.) or less
b. When the measured value exceeds the standard value, replace the compression lower arm assembly or lateral lower arm assembly.
c. When the measured value is lower than the standard value, check that the ball joint turns smoothly without excessive play. If so, it is possible to use that ball joint.

INSTALLATION
Installation in reverse order as removal.

NOTE: Operational steps after installation as follows:
- Front wheel alignment adjustment.
