Upper Arm Ball Joint Dust Cover Replacement

NOTE: Replace the dust cover by the following procedure only if the dust cover has become damaged by accident during servicing.

1. Remove the dust cover.
2. Apply multipurpose grease to the lip and inside of the dust cover.

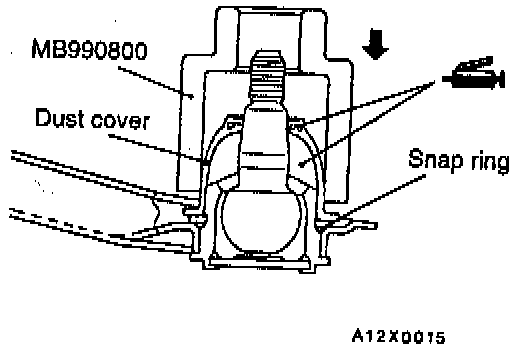

3. Drive in the dust cover with special tool until it is fully seated.
