Removal and Replacement

REMOVAL

CAUTION: For Supplemental Restraint System (SRS). Before removal of air bag module, refer to: SRS Service Precautions and Air Bag Module and Clock Spring.

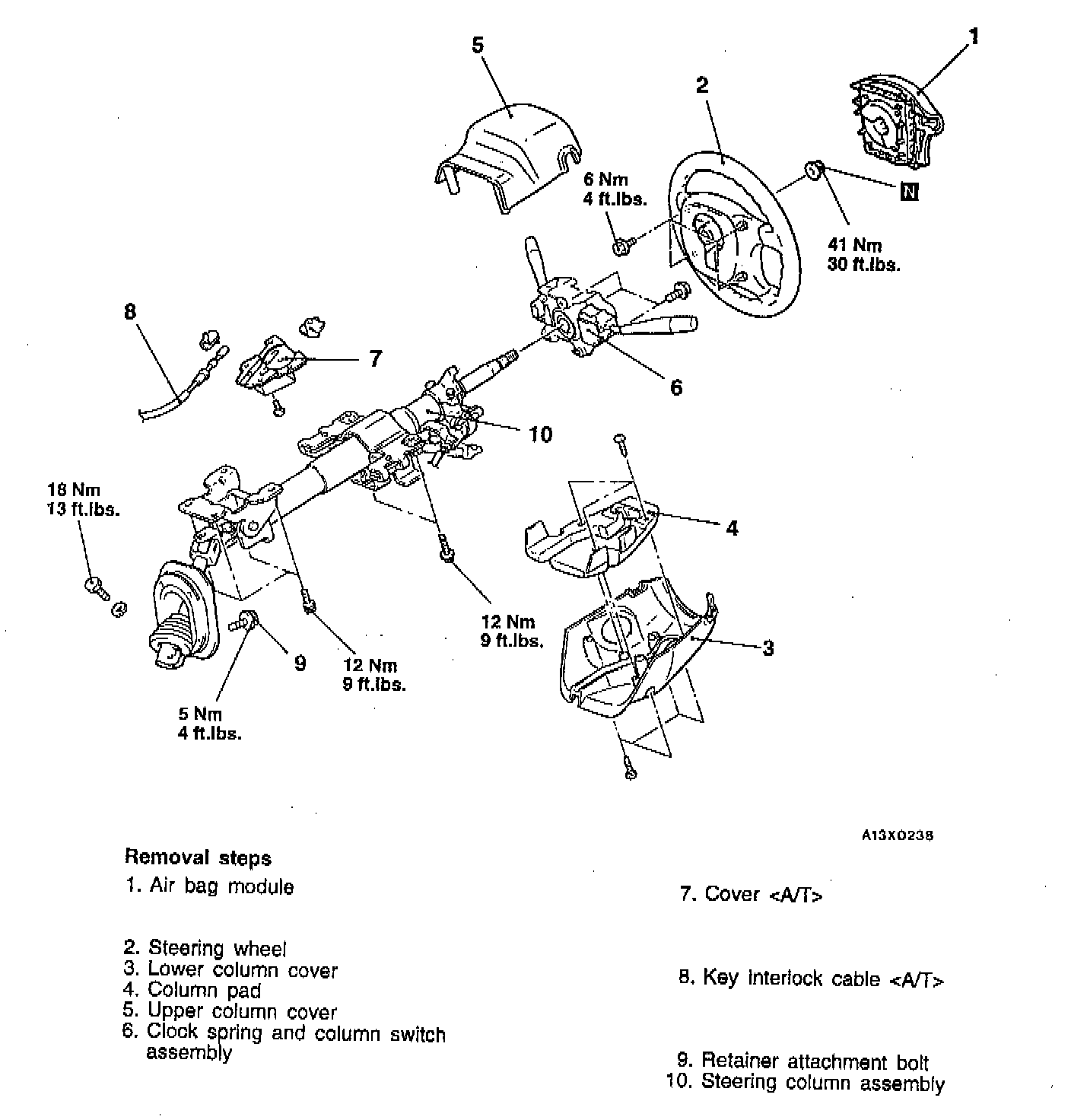

Follow removal steps outlined in illustration.

NOTE: Removal service points as follows:

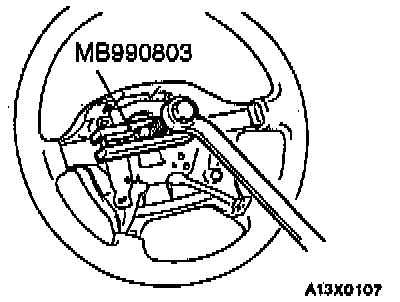

a. Steering wheel removal (2).

INSTALLATION
Installation in reverse order as removal.

NOTE: Checking steering wheel position with wheels straight ahead.
