Initial Inspection and Diagnostic Overview
Initial Inspection and Diagnostic Overview

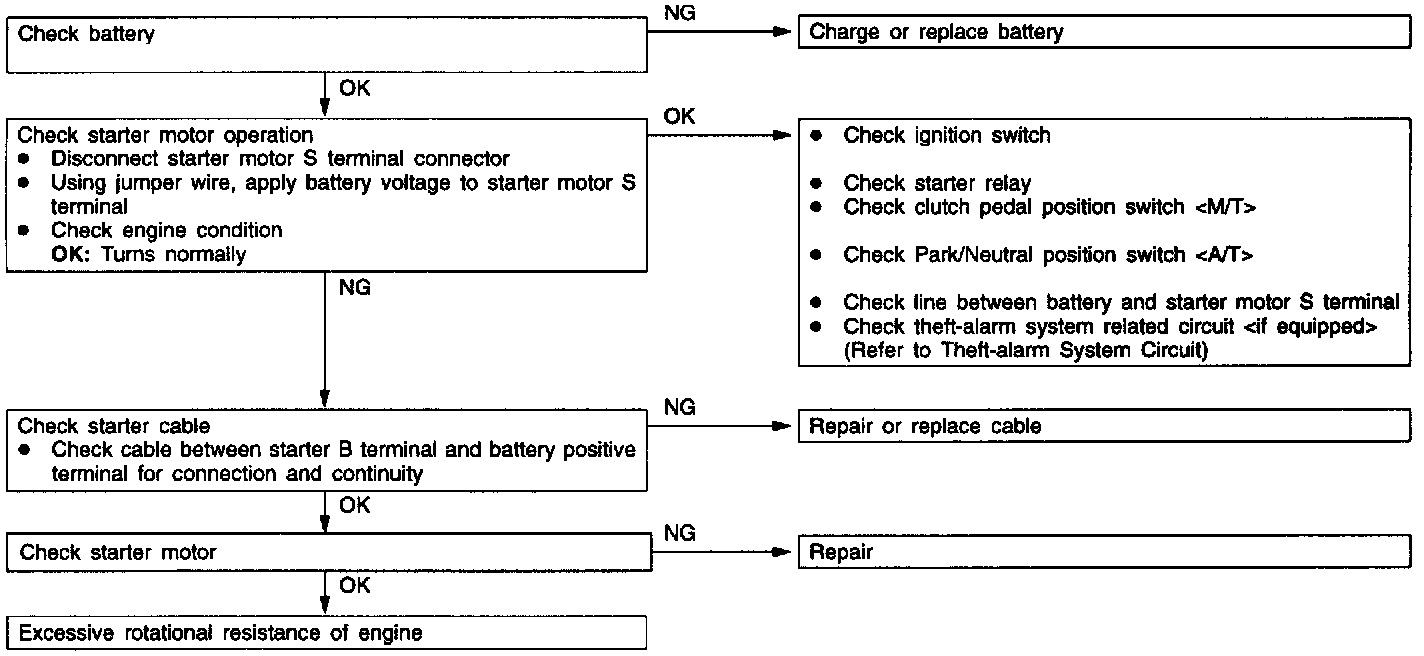

Troubleshooting Guide:
The
starting system
troubleshooting guide is shown in the chart above.
