Fuel Gauge Unit Check:

NOTE: To test the fuel gauge unit it must be removed from the ta

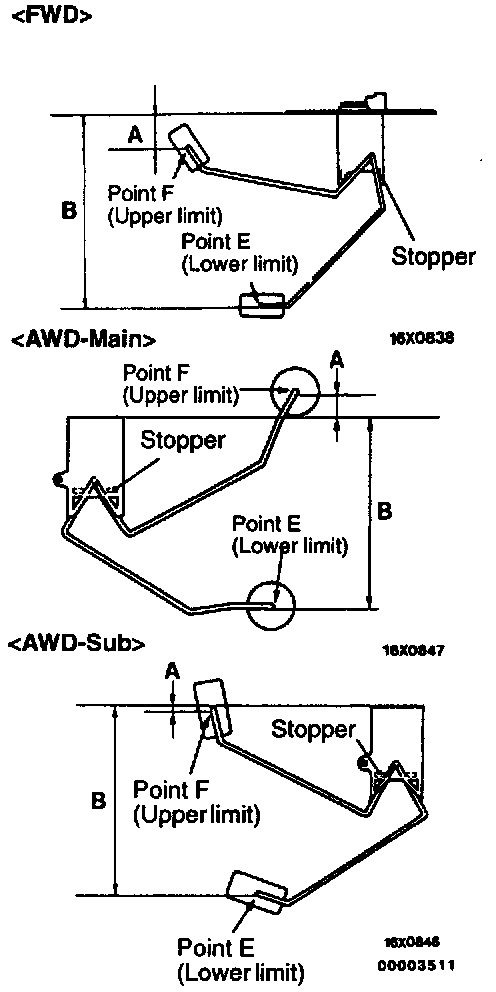

Move the float and measure the height A at point F (highest) and B at point E (lowest) with float arm touching stopper.
Standard value:
A: 3.013 mm (0.121.12 in.)
B: 126.713 mm (5.01.12 in.)
