Power Steering

DEFLECTION (REFERENCE VALUE):
When Checked: 5.5 - 8.0 mm (0.22 - 0.32 inch)
New Belt Installed: 4.5 - 5.5 mm (0.18 - 0.22 inch)
Used Belt Installed: 6.0 - 7.0 mm (0.24 - 0.28 inch)

TENSION:
When Checked: 245 - 490 N (55.1 - 110.2 lbs.)
New Belt Installed: 490 - 686 N (110.2 - 154.3 lbs.)
Used Belt Installed: 343 - 441 N (77.2 - 99.2 lbs.)





TORQUE:

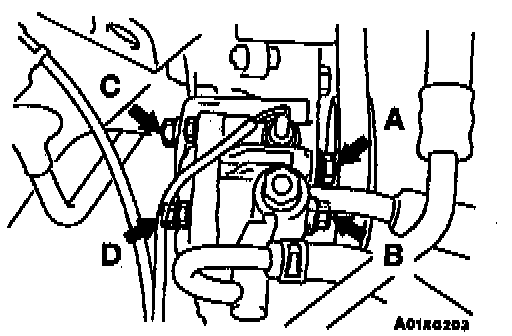

Fixed Bolts (A, B, D): 28 Nm (21 ft. lbs.)
fixed Bolt (C): 22 Nm (16 ft. lbs.)
