Component Tests and General Diagnostics

Vehicle Speed Sensor Check:

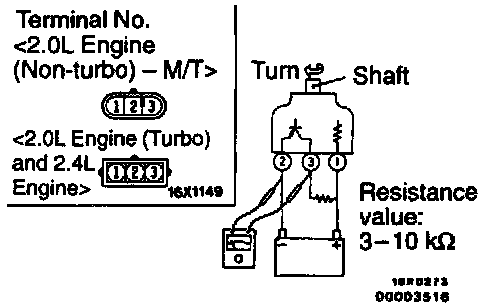

1. Remove the vehicle speed sensor and connect a 3 - 10 K Ohm resistance as shown in the illustration.
2. Turn the shaft of the vehicle speed sensor and check that there is voltage between terminals 2 - 3 (1 turn = 4 pulses)
