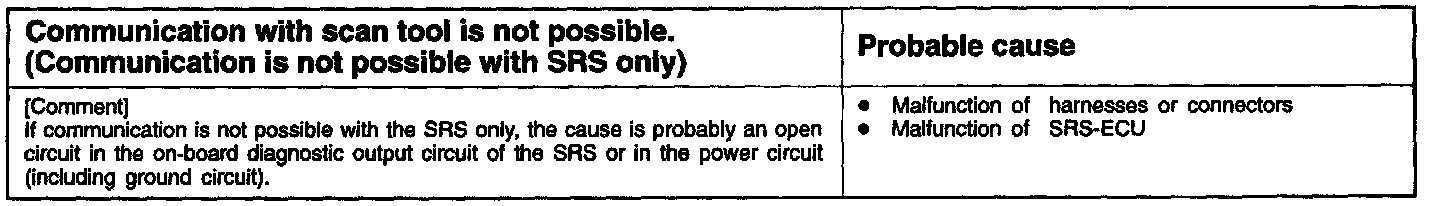

2. Communication With Scan Tool Impossible (SRS Only)

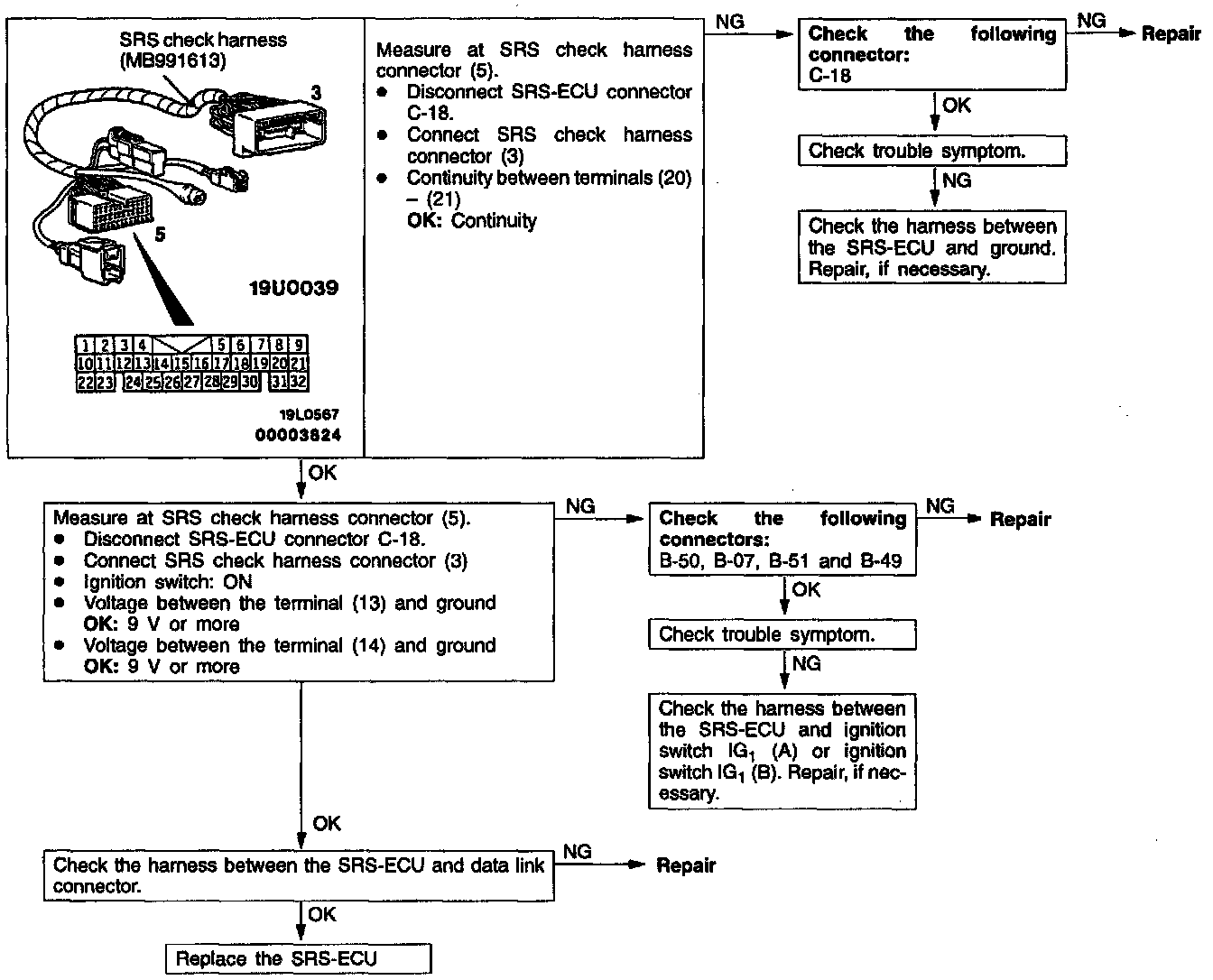

Inspection Procedure 2:







Inspection Procedure 2:





CAUTION: Turn the ignition key to the "LOCK" position, disconnect the negative battery cable and tape the terminal. Wait at least 60 seconds after disconnecting the battery cable before doing any further work.
