ABS Main Relay: Testing and Inspection

1. Remove the splash shield.
2. Remove the relay box mounting bolts.
3. Insert the tip of a screwdriver into the space between the hydraulic unit and the relay box cover and use it to open the tab at one place, and then remove the cover.

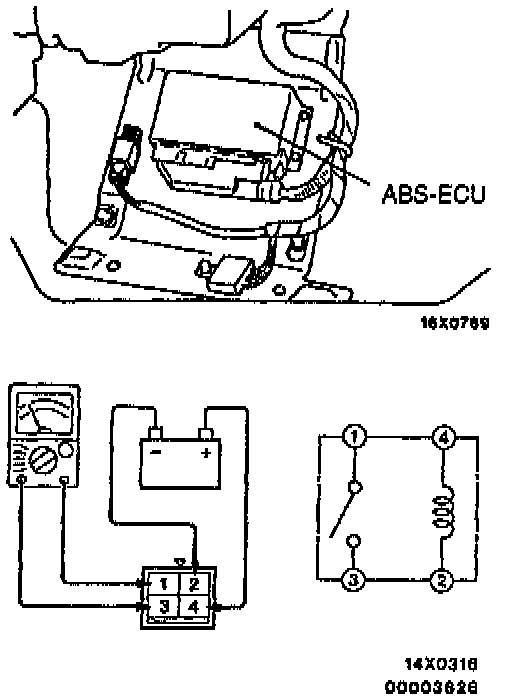

4. Take out all of the relays from the relay box and check the continuity between the terminals when power is not supplied and when power is supplied.

- Results should be as shown in the illustrations.

MOTOR RELAY

ABS Motor Relay Terminals:

VALVE RELAY

ABS Valve Relay Terminals:

POWER RELAY

Check Power Relay:

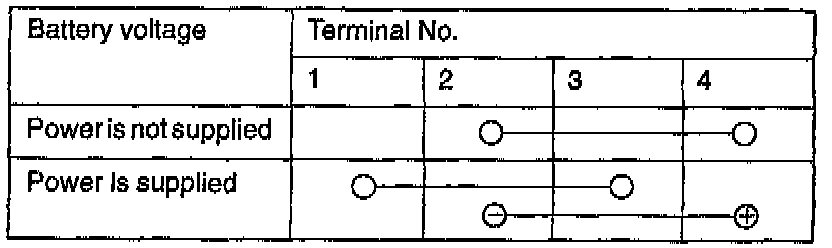

Power Relay Terminals Table:
