Overdrive Switch: Testing and Inspection

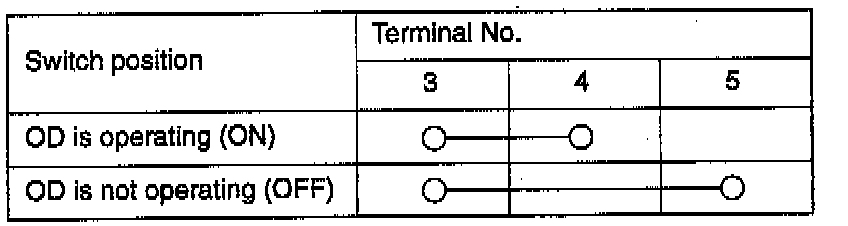

CONTINUITY CHECK

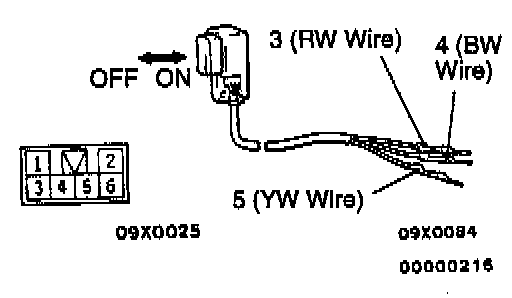

Check for continuity between terminals when the switch is OFF and when ON.
